5 INSTALLATION
ELECTRICAL SHOCK, FIRE, AND/OR EXPLOSION HAZARD. Failure to obey the following
warnings can result in dangerous operation, property damage, serious injury, or death:
• Use only Dometic parts and components that are specifically approved for use with the microwave.
• This microwave should be installed only by certified (or professional) installers.
• Install or locate this appliance only in accordance with the provided instructions.
This section describes how to install the Dometic Model DCMC11B.F Convection Microwave Oven.

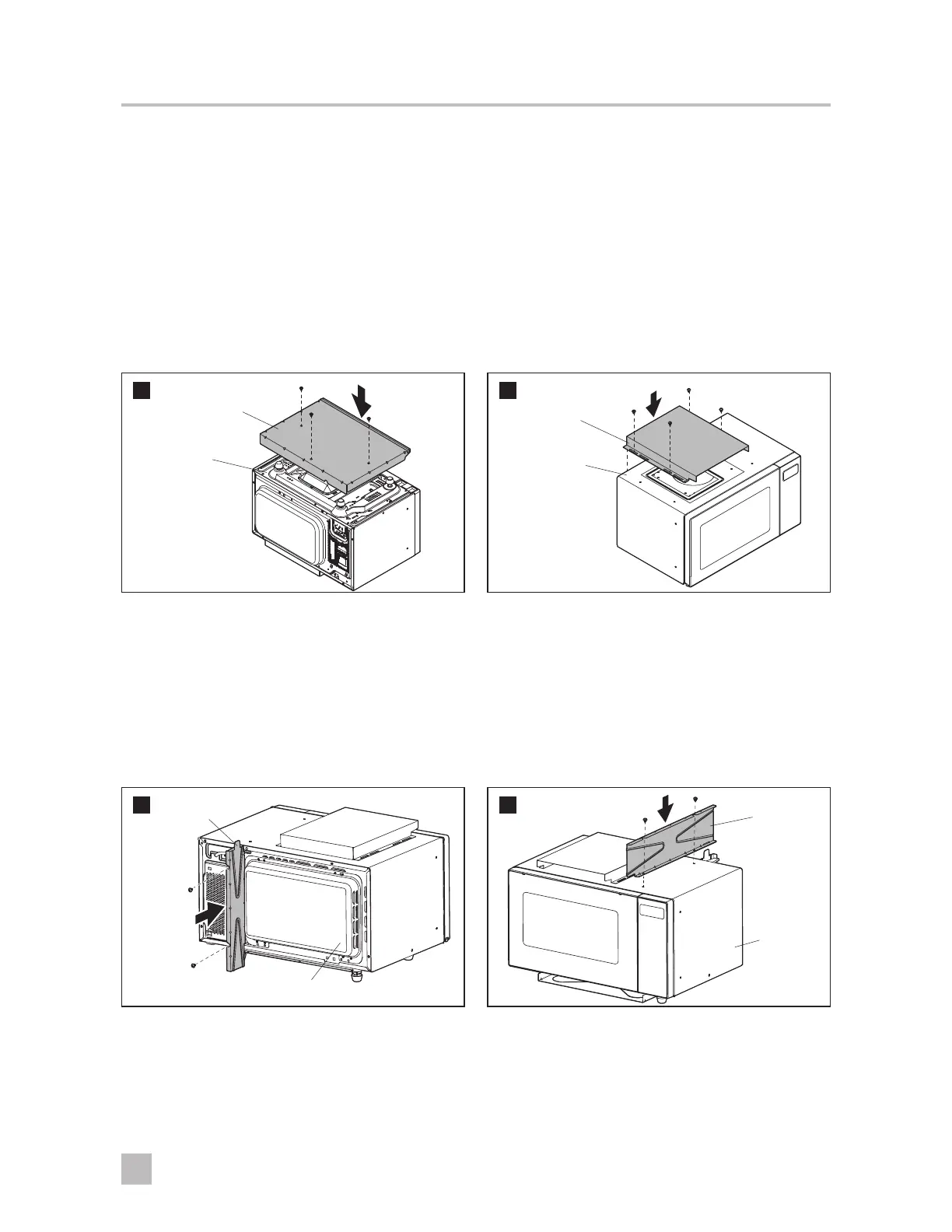

5.1 Attaching the lower exhaust hood
4
Lower
Exhaust
Hood
Microwave
(bottom)
➤ Orient the microwave so that the bottom of the
unit is accessible.
➤ Fasten the lower exhaust hood to the microwave
using three #8 x 5/16 in. (8.0 mm) screws.
5.2 Attaching the upper exhaust guide
5
Upper
Exhaust
Guide
Microwave
(top)
➤ Orient the microwave so that the top of the unit is
accessible.
➤ Using a square or straight edge, align the upper
exhaust guide with the rear of the microwave.
➤ Fasten the upper exhaust guide to the microwave
using four #8 x 5/16 in. (8.0 mm) screws.
5.3 Attaching the rear air baffle
6
Rear Air
Baffle
Microwave
(rear)
➤ Fasten the rear air baffle to the rear of the
microwave using two #8 x 5/16 in. (8.0 mm)
screws.
5.4 Attaching the top air baffle
7
Top Air
Baffle
Microwave
➤ Fasten the top air baffle to the microwave using
two #8 x 5/16 in. (8.0 mm) screws.
