Condensate drain installation for all other air conditioning units -
9

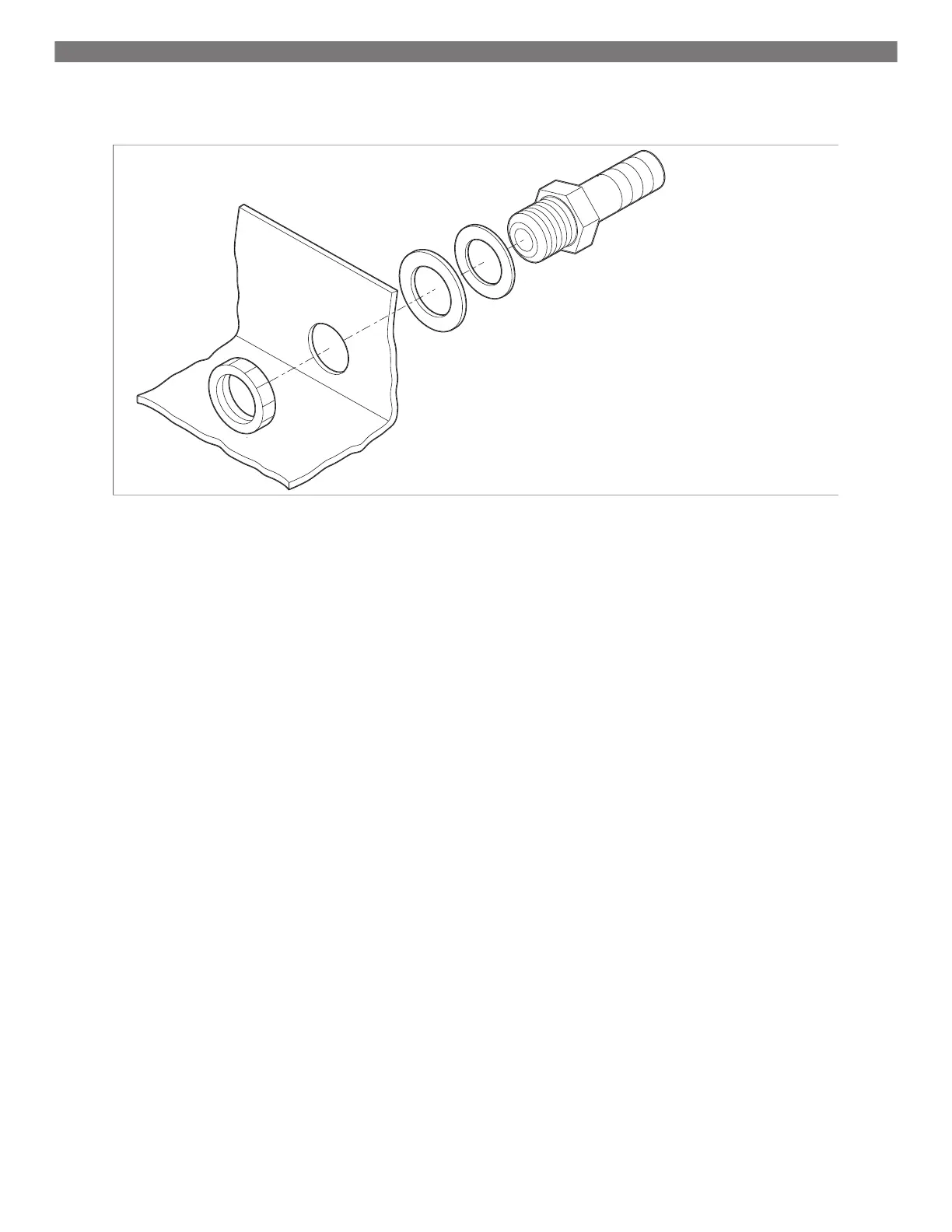

1 Locking nut 4 Solid washer
2 Drain pan 5 PVC fitting 0.5 in (12.7 mm) HB x 0.5 in (12.7 mm) MPT)
3 Liquid-seal washer
1. Using the hose barb, knock out a slug from an a-facing drain hole by applying one quick strike with a rubber mallet. Discard
the slug knockout.
2. For Turbo and Voyager units:
a) Wrap the threaded end of the hose barb with plumbers tape.
b) Screw the hose barb into the threaded drain hole and tighten securely.
3. For all other air conditioners:
a) Thread the hose barb through a solid washer and liquid-seal washer and insert it into the drain hole.
b) Secure with a locking nut.
4. Secure the drain hose to the hose barb with a stainless steel hose clamp.
