Dometic F0200FT - Page 129

129

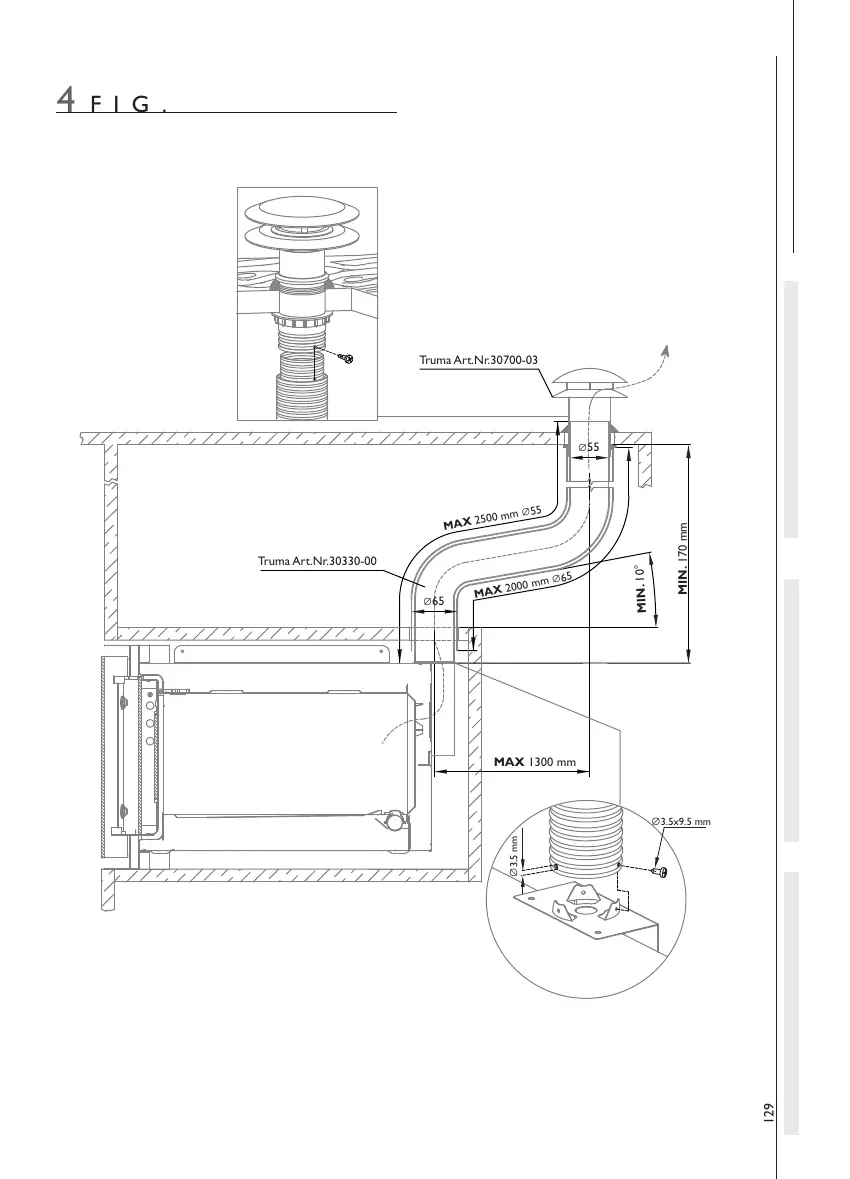

4 FIG.
∅65
∅55
MAX 2500 mm
∅
55
MAX 1300 mm
MIN. 10°
Truma Art.Nr.30330-00
Truma Art.Nr.30700-03
MAX 2000 mm
∅
65
MIN. 170 mm
∅3.5x9.5 mm
∅3.5 mm
