Operation
Operation "Carport position"
5.0
5.1
• Unroll the awning fabric in clockwise direction by 90 cm.
• Expand rafter arms (left/right) and extend.
• Fully extend the awning in clockwise direction. Then, roll awning back 1/4 turn to
reach maximum tension.
• Position and properly stake the legs to the ground. For further protection we recom-
mend the ends of the awning leadrail be tied with straps (not provided).
• Unroll the awning fabric in clockwise direction by 90 cm.
• Expand rafter arms (left/right) and engage the support arm foot into the wall bracket.
• Fully extend the awning in clockwise direction. Then, roll awning back 1/4 turn to
reach maximum tension.
Operation "Patio position"5.2

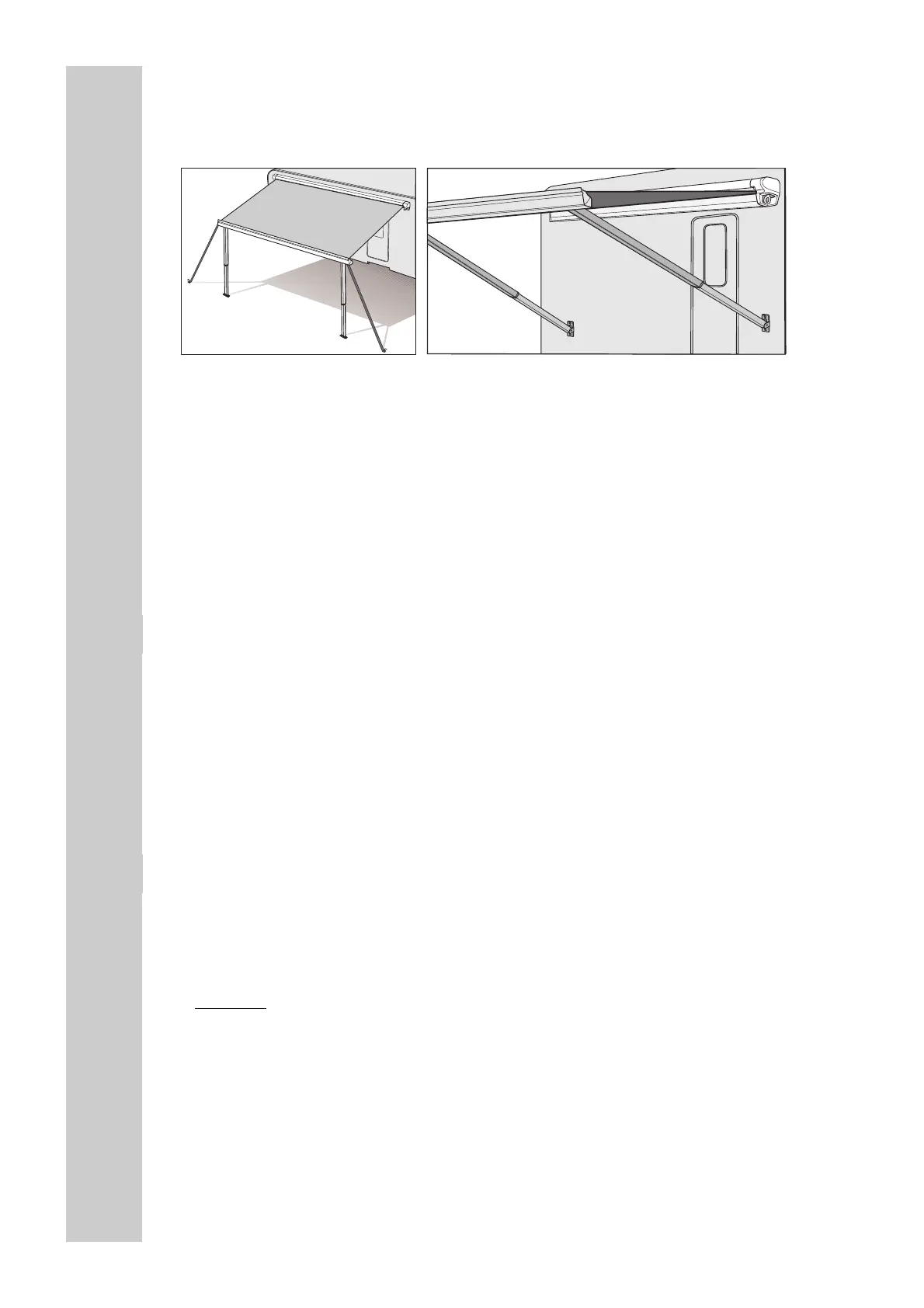

Fig. 5-1 Carport position Fig. 5-2 Patio position
Maintenance
Maintenance instructions
6.0
6.1
• Avoid use of caustic household cleaners to clean the fabric.
• Do not use hard bristle brushes and/or mildew removers.
• Lubricate the rafter arms and support arms using paraffin wax or silicon spray.
• To avoid mildew formation, periodically clean the awning fabric with soap agents.
Rinse well with warm water.
Mix ratio:
60 ml dish soap and 60 ml bleaching agent mixed with 20 litres of warm water.
• Allow to dry before rolling awning back up.
• Remedy small pinholes with VLP (Vinyl Liquid Patch). Apply a very small dab of VLP
on the tip of a wooden stick. By gently rolling the wooden stick around the pinhole,
the VLP will melt the paint (in the stripe) and that will quickly fill in the pinhole with a
perfect match. Please order VLP (Vinyl Liquid Patch) at Dometic: (Dometic part no.
143498).
• Be sure to wait until the VLP sets before rolling up the awning.
• Lower one end of awning for proper water run-off and to avoid water pooling.
