21

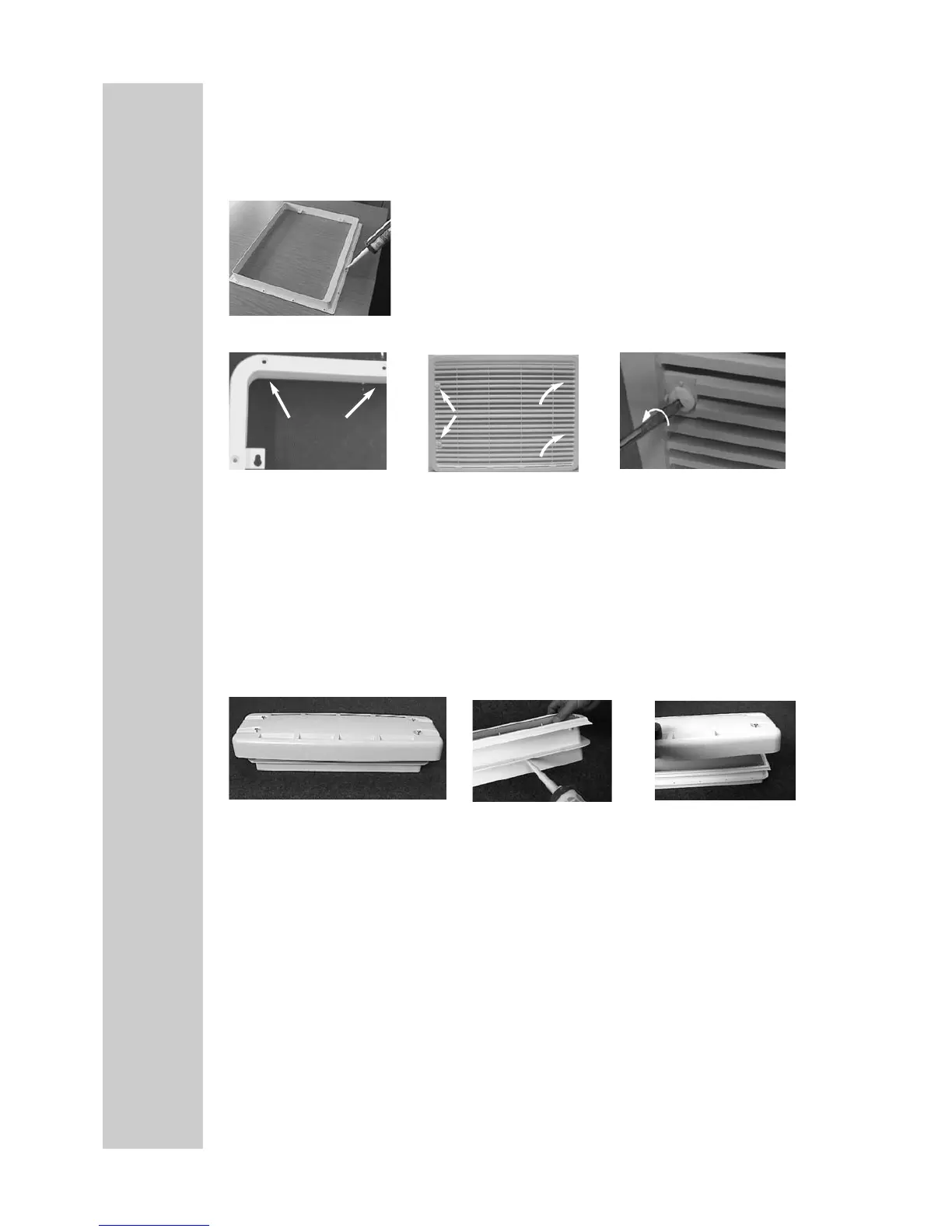

Installing the ventilation system6.4
3. Insert the ventilation
grilles.
5. Insert winter cover
2. Insert the frame and
screw into position.
2 . Place the hood in
postion and screw
it to the installation
bays.
1. Seal the installation
bays and screw
them to the vehcile
roof
4. Lock the ventilation grilles.
1. Seal the mounting frame, making it waterproof.
To install the ventilation grilles, cut two rectangles (451mm x 341mm) in the
outer wall of the vehicle (for position of the cuts, see point 6.3).
L 500 or L300
R 500
Measurements of roof exhaust R500
Length Width Height
595 mm 205 mm 150 mm
Roof cut out: 87mm X 507 mm
