Dometic RM 7601 L Operating Instructions

25
D+ connection and Solar Control connection
( AES only )
D+ connection
The D+ control connection must be connected to the respective vehicle
terminal (alternator signal while motor is running).
Solar control input (S+):
Connection only when using a solar system with a solar charging con-
troller with AES output.
The respective solar charging controllers are available from a specialized
dealer.
The “Solar” (S+) control connection must be connected to the respective
terminal of the solar charging controller (AES output).
Cable cross-sections
There are no particularly high current flows via the D+ and S+ connection;
therefore no particularly large cross-section is required for these connections
(approx. 1mm²).

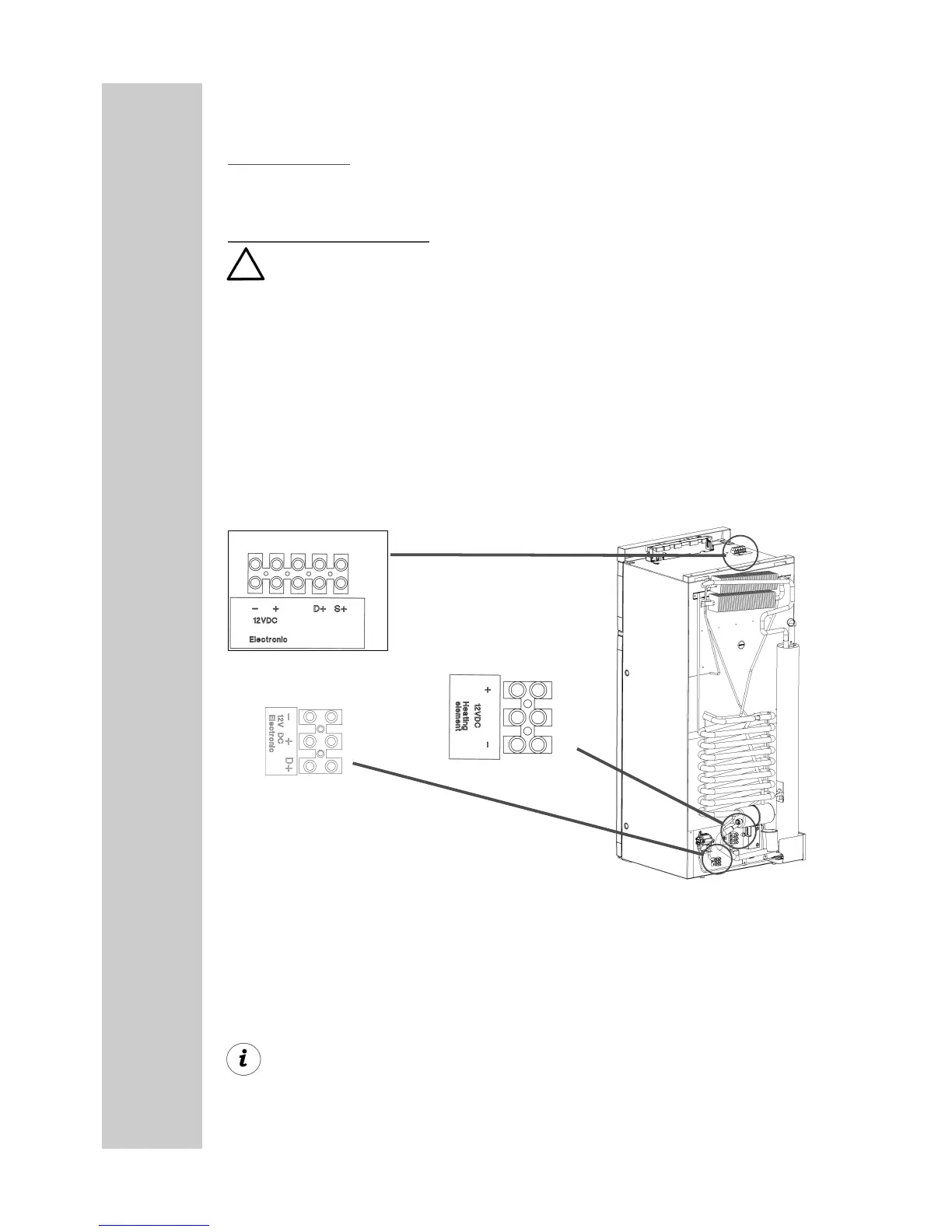

Terminal strip DC
connections
( MES and AES )
Retrofitting
Connections:
A = Ground heating element DC
B = Plus heating element DC
C = Ground electronics
D = Plus electronics
(RM76X5)
D+ = alternator signal
S+ = AES-input-control signal (solar charge regulator)
6.8.3
6.8.4
6.8.5
D
C
A
B
D
C
permanent DC-connection
12V DC
heating-connection


For all MES appliances there is an additional possibility for retrofitting to an
RM 76x5 / RM 78x5 device with AES functions. Please consult your nearest
Dometic Customer Service or your specialist dealer.
