14
Ventilation heights
Refer to FIG A and FIG. B
Clearances
Installation with * Minimum Ventilation
Upper side vent Height N
And lower side vent
REFRIGERATOR INCHES MM
RM 2193
Metal Side Vents 20 5/8 524
(1) RM 123 Upper Vent
(1) RM 183 Lower Vent
RM 2193
Metal & Plastic Side Vents 20 5/8 524
(1) RM 123 Upper Vent
(1) 3107560.009 Lower vent
RM 2193
Plastic Side Vents 22 558,8
(1) 3107560.041 Upper vent
(1) 3107560.009 Lower vent
* These dimensions represent the minimum height
allowable. It is recommended the Upper Vent be
located to the maximum possible height of the
vehicle for optimum performance in warmer climates.

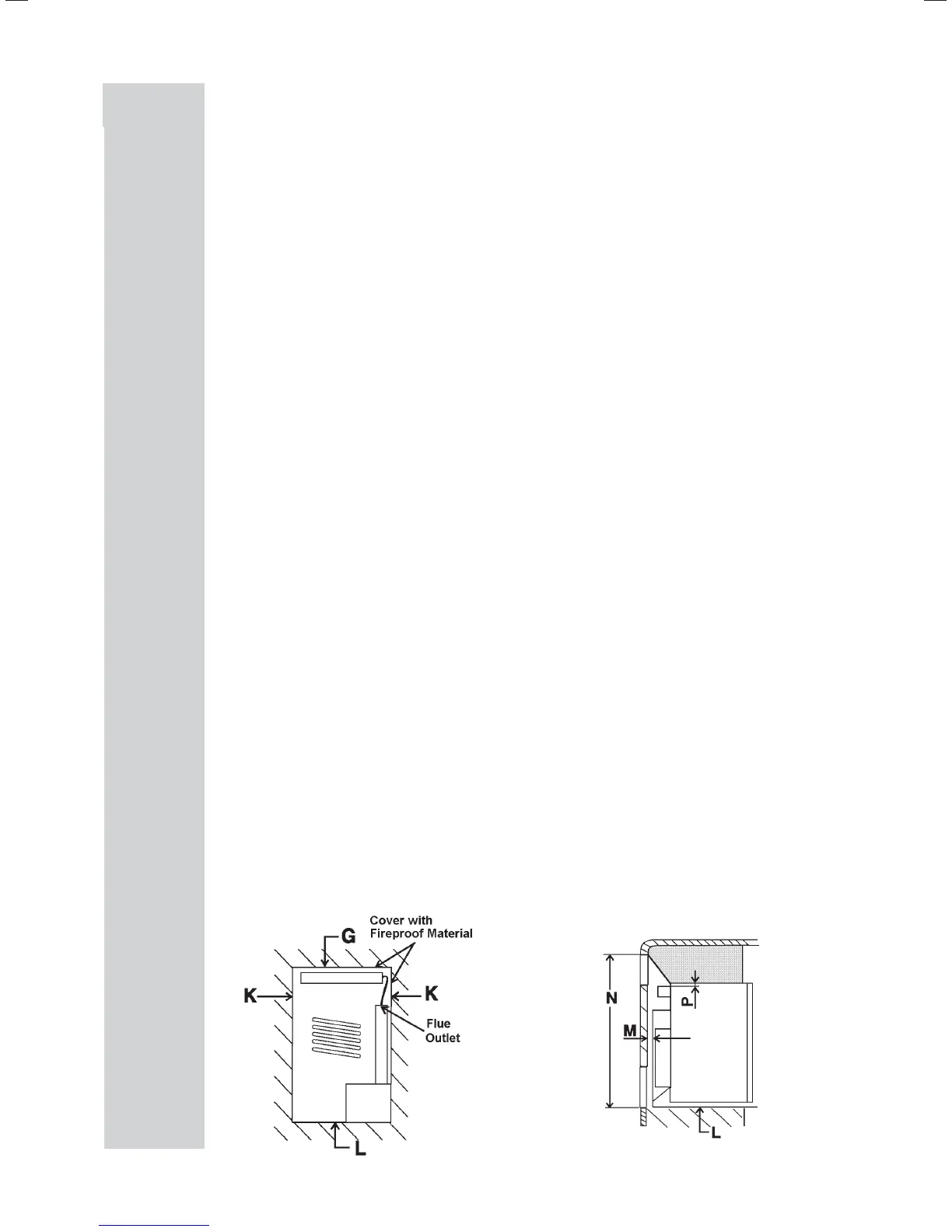

Minimum clearances in mm to combustible materials are:
G:Top 0 K: Side 0
L: Bottom 0 M: Rear 25
N: See NOTE P: See NOTE
NOTE: Clearance "M" is between the rearmost part of the refrigerator and the
wall behind the refrigerator.
NOTE: Clearance "N" is the distance between the bottom of the lower vent to
the top of upper side vent. For ventilation height, refer to Section A. Installation,
Item 5. Ventilation Heights. See FIG. 2.
Surfaces directly above and sides adjacent to the flue outlet must be of, or
covered with, fireproof material. See FIG. 2.
NOTE: Clearance "P" over top of unit condenser fins is 6 mm. This is the mini-
mum height which can be allowed over the condenser fins. Whenever possible,
increase this height by up to 11 inches; the more ventilation you provide, the
better the performance you can expect from the refrigerator.
FIG. 2
6.2.3
6.2.4
