E. CLEANING OF FLUE TUBE, FLUE BAFFLE
Proceed as follows:
1) To clean the flue tube and the flue baffle, it is neces
sary to withdraw the refrigerator out of the recess.
By using a phillips screwdriver, remove the screw (B, in FIG. 11) and carefully
withdraw the burner cover box.
3) Place a piece of paper or cloth between the boiler tube (E, in FIG. 11) and
the burner assembly, to catch falling deposits.
4) Remove the "T-piece" (A, in FIG. 12) at the top of the flue by unscrewing the
screw (B, in FIG. 12) that fixes it to the flue pipe.
5) Carefully takeout the flue baffle (C, FIG. 12) and clean.
6) Clean the flue tube of soot, etc. with the aid of a special flue brush, availa-
ble from your supplier.

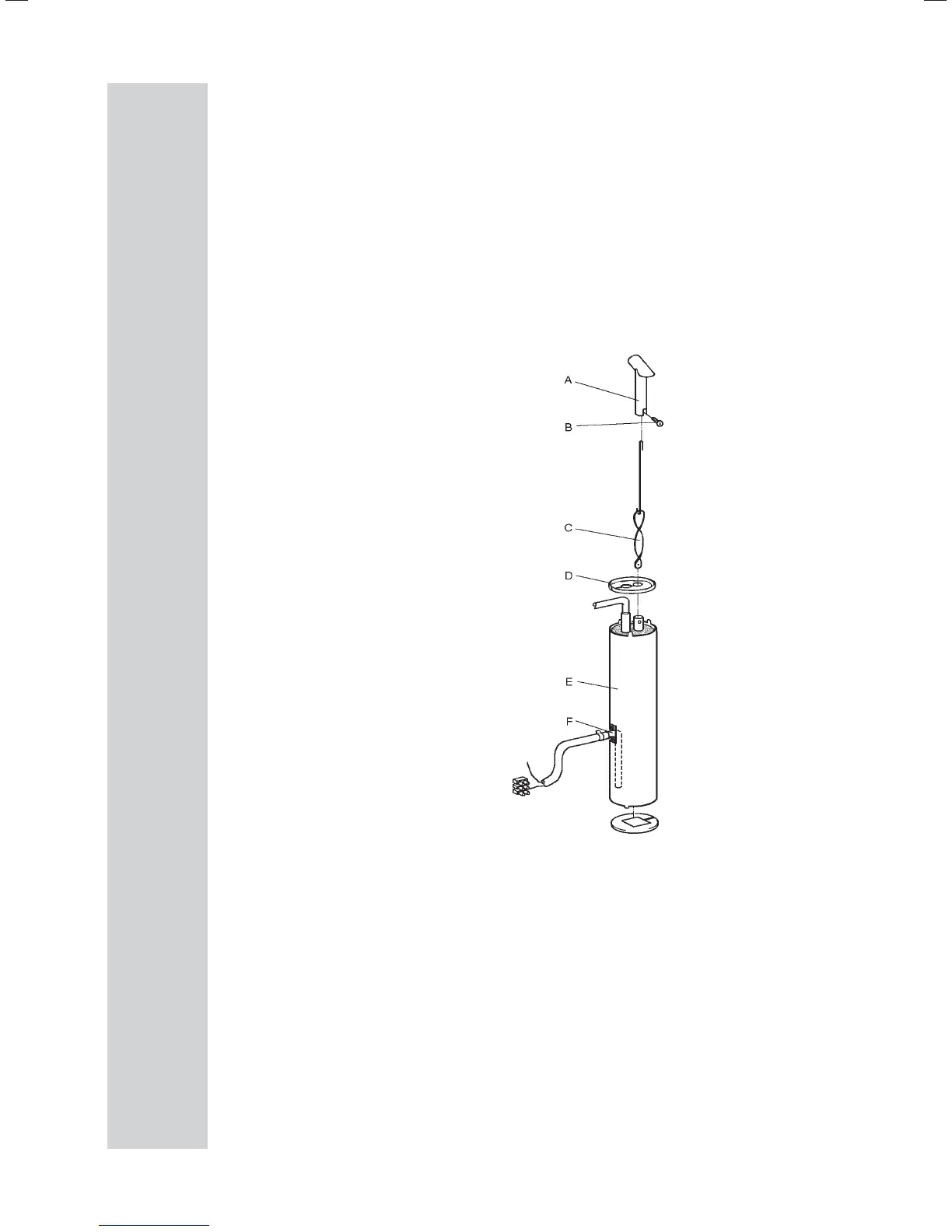

FIG. 12
