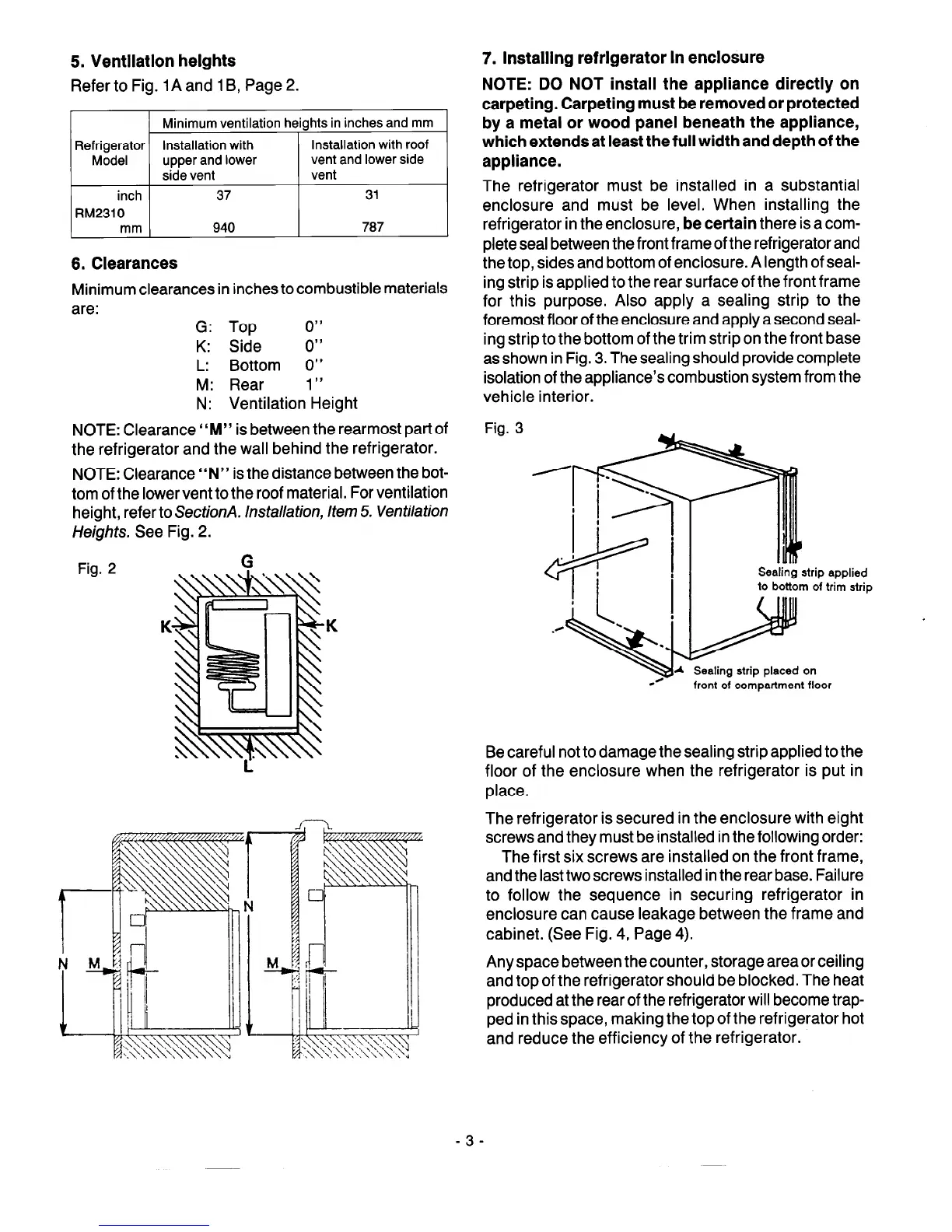

5. Ventllatlon helghts
Refer to Fig. 1A and 1 B, Page 2.
Minimum ventilation heights in inches and mm
Refrigerator Installation with
Installation with roof
Model
upper and lower
vent and lower side
side vent
vent
inch
37
31
RM2310
mm 940
787
6. Clearances
Minimum clearances in inches to combustible materials
are:
G: Top 0”
K: Side 0”
L: Bottom 0”
M: Rear 1”
N: Ventilation Height
NOTE: Clearance “M/l” is between the rearmost part of
the refrigerator and the wall behind the refrigerator.
NOTE: Clearance “N” is the distance between the bot-
tom of the lower vent to the roof material. For ventilation
height, refer to SectionA. Installation, /fern 5. Ventilation
Heights. See Fig. 2.
Fig. 2
G
7. lnstalllng refrlgerator In enclosure
NOTE: DO NOT install the appliance directly on
carpeting. Carpeting must be removed or protected
by a metal or wood panel beneath the appliance,
which extends at least the full width and depth of the
appliance.
The refrigerator must be installed in a substantial
enclosure and must be level. When installing the
refrigerator in the enclosure, be certain there is a com-
plete seal between the front frame of the refrigerator and
the top, sides and bottom of enclosure. A length of seal-
ing strip is applied to the rear surface of the front frame
for this purpose. Also apply a sealing strip to the
foremost floor of the enclosure and apply a second seal-
ing strip to the bottom of the trim strip on the front base
as shown in Fig. 3. The sealing should provide complete
isolation of the appliance’s combustion system from the
vehicle interior.
Fig. 3
Sealing strip applied
to bottom of trim strip
front of compartment floor
Be careful not to damage the sealing strip applied to the
floor of the enclosure when the refrigerator is put in
place.
The refrigerator is secured in the enclosure with eight
screws and they must be installed in the following order:
The first six screws are installed on the front frame,
and the last twoscrews installed in the rear base. Failure
to follow the sequence in securing refrigerator in
enclosure can cause leakage between the frame and
cabinet. (See Fig. 4, Page 4).
Any space between the counter, storage areaor ceiling
and top of the refrigerator should be blocked. The heat
produced at the rear of the refrigerator will become trap-
ped in thisspace, making the top of the refrigerator hot
and reduce the efficiency of the refrigerator.
-3-
