ROYALE AND ELITE MODELS:
CONDENSATE WATER DRAIN HOSE: A 3/4" hole must be drilled through the flooring in the opening
of the base plate on the rear of refrigerator.
A
B
Second: Install the two screws in the top frame.
A. The top decoration panel must be removed from the refrigerator. Open refrigerator door and gently
push the tabs out of the hole in the hinge with a flat blade screwdriver.
B. Carefully tilt the top decoration panel and lift up to remove from top frame.
C.Install the second two screws in the top frame as shown.

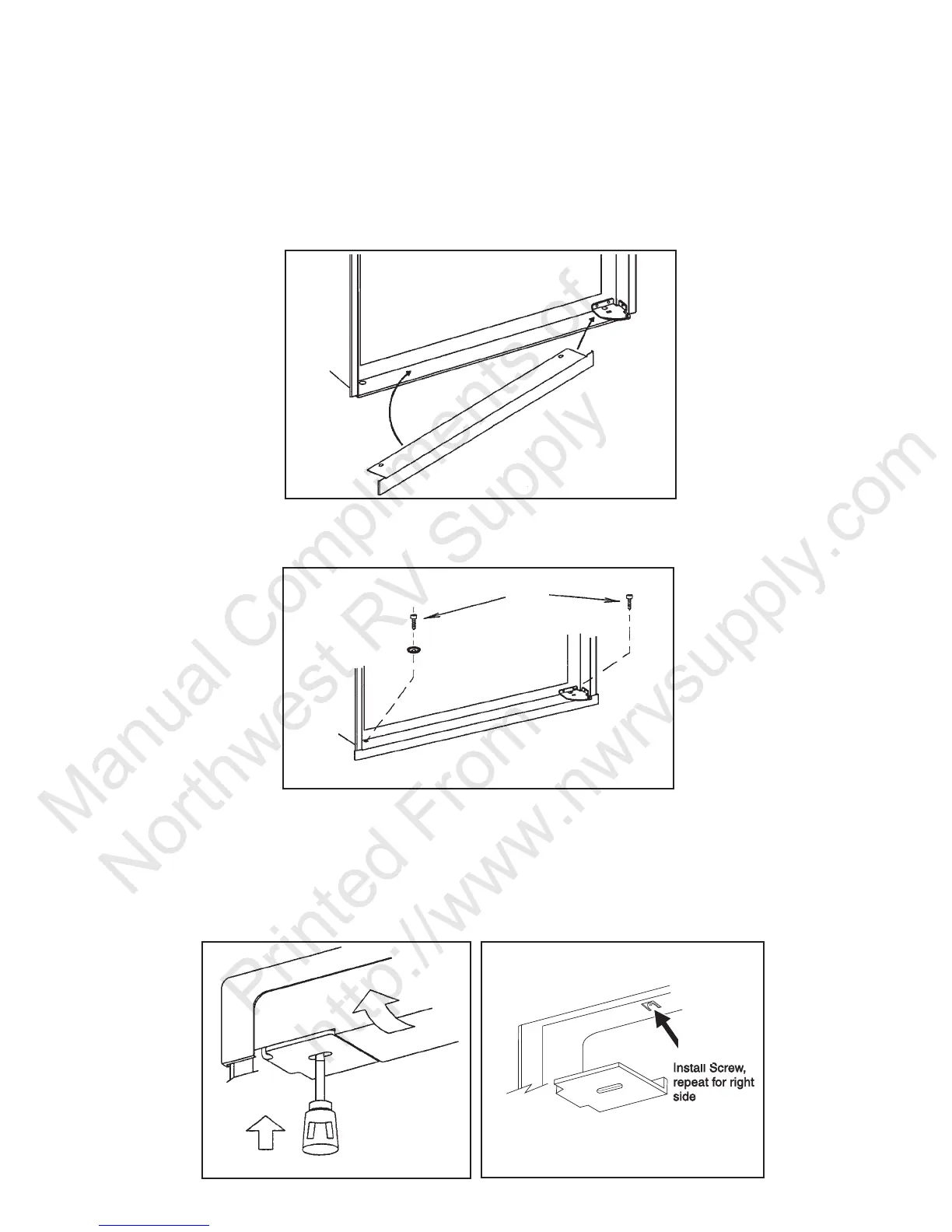

The refrigerator is secured in the enclosure with six screws. They must be installed in the following order:
First: Two screws are installed in front decoration strip and through the front base.
A. The front strip is to be installed after the refrigerator is set into the alcove.
B. Install the lower front strip by sliding it under the bottom hinge plate as shown.
C. When the front strip is in place, install one screw through the hinge and into the floor. The second
screw is installed with a washer on the opposite side.
C
B
A
C
