INSTRUCTIONS FOR
MOUNTING THE DOOR PANEL
The refrigerator is normally delivered without door
panel(s). Before starting the mounting work, check the
panel dimensions for compliance with those given in the
Table below, and read the instructions thoroughly.
(See FIG. 13). When mounting the panel, proceed as
follows:
A. The decoration strip(s) are taped inside the door; if
installed on the door. Remove the door decoration
strip (2) by removing its two screws (1).
B. Insert one of the vertical edges of the panel into the
groove of the door frame (3).
C. Bend the panel gently so that the free side of the
panel can be slipped into the corresponding groove
of the door frame (4).
D. Slide the panel down into the groove of the bottom
frame (5).
E. Between the upper edge of the panel and the door
frame there is a gap which should be covered by
the decoration strip.
F. Put the decoration strip across the door so that the
gap is covered and push upward (6). The tabs on
the inside of the strip should fit in behind the flange
of the door frame. Secure the decoration strip with
the two screws removed in Step A(1).
PANEL DIMENSIONS
MAX. THICKNESS 5/32" (4mm)
MODELS
HEIGHT
WIDTH
TYPE
MAX MIN.
MAX.
MIN.
RM2410
mm 697 695 515
513
inch 27-7/16 27-23/64
20-9/32
20-13/64
RM2510
mm 897 695 515
513
inch
35-5/16
35-15/64
20-9/32
20-1 3/64
RM2610
upper mm 306 304 515
513
inch 12-3/64 1 1-31/32 20-9/32
20-13/64
lower mm 819 817 515
513
inch 32-1/4 32-5/32 20-9/32
20-1 3/64
RM2810
upper mm 378 376 563
561
inch 14-7/8 14-51/64 22-11 /64
22-3/32
lower mm 897 895 563
561
inch 35-5/16 35-1 5/64 22-11 /64
22-3/32

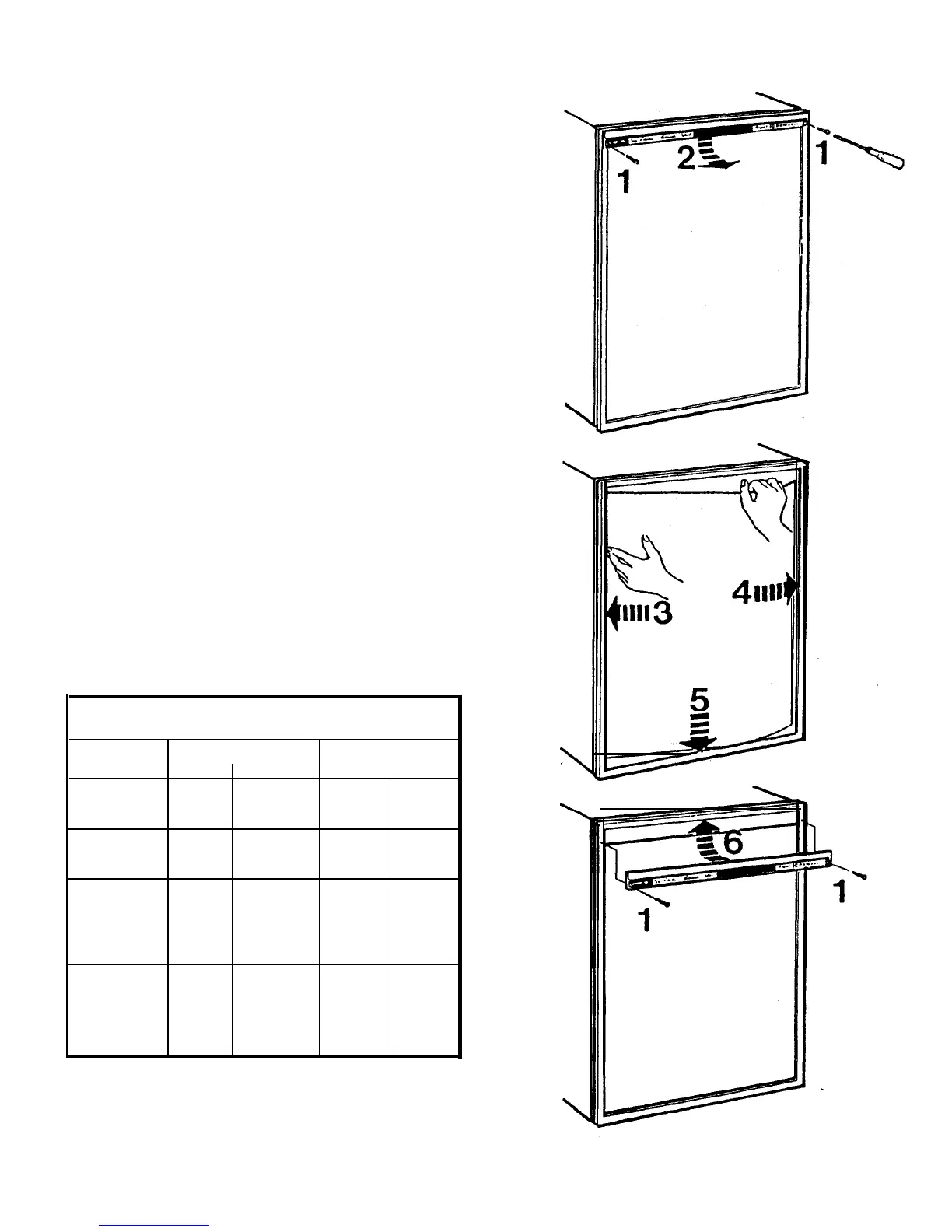

FIG. 13
\
