Dometic RM2612 Installation Instructions

3
Model
No.A*BCDEF**G
RM2193(1) 20-5/8 20-7/8 20-7/8 17-3/4 4 1 1
RM2193(2) 21-5/8 20-7/8*** 20-7/8 17-3/4 4 1 1
RM2202(1) 23 18 22-1/4 19-5/8 4 1 1
RM2202(2) 24 18*** 22-1/4 19-5/8 4 1 1
RM2332 37 21-3/8 29-3/4 20-1/2 4 1 1
RM2333 37 21-3/8 29-3/4 20-1/2 4 1 1
RM2410 38 24 32-7/16 21-3/16 4 0 1
RM2452 37-3/4 24 36-9/16 23-11/16 4-1/2 0 1
RM2453 37-3/4 24 36-9/16 23-11/16 4-1/2 0 1
RM2510 38 24 40-5/16 21-3/16 4 0 1
RM2551 44-1/2 24 42-5/8 23-11/16 4 0 1
RM2552 44-1/2 24 42-5/8 23-11/16 4-1/2 0 1
RM2553 44-1/2 24 42-5/8 23-11/16 4-1/2 0 1
RM2554 44-1/2 24 42-5/8 23-11/16 4 0 1
RM4223(1) 21 24 20-29/32 19-9/16 4-1/2 0 1
RM4223(2) 22 24*** 20-29/32 19-9/16 4-1/2 0 1
NOTE: See Pages 11 through 13 for approved Dometic refrigerator vent options.
(1) - Installation with metal side vents
(2) - Installation with plastic side vents
*** Vehicle wall thickness dimension will need to be increased if the vehicle wall thickness is less than 1-1/2 inches.

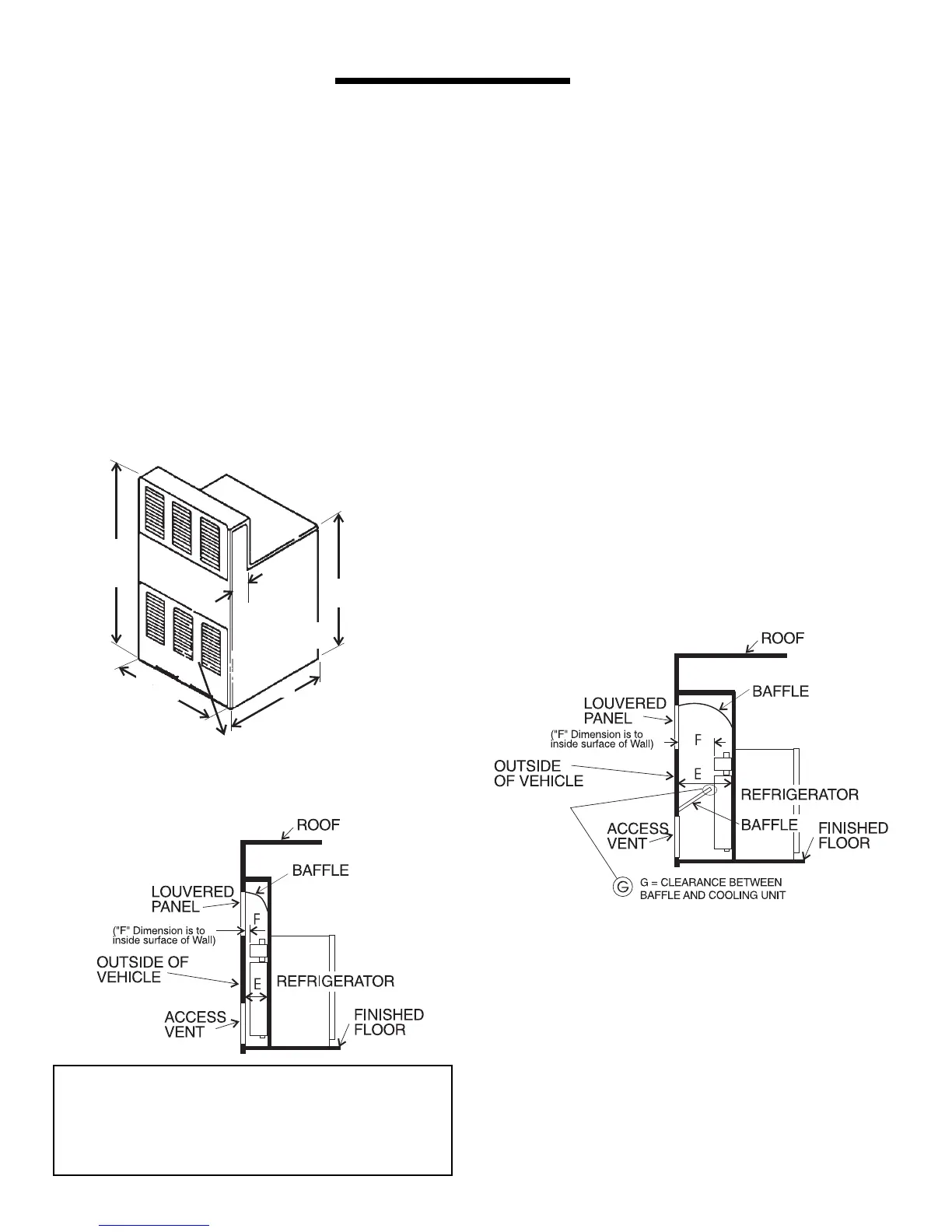

OPTION 2
NOTE: Options 1, 2, 3B, 3C, 3D & 3E require the bottom of the access
vent and floor to be at the same level.
*1. Dimension "A" is minimum. This dimension may be
increased for more efficient operation in warm tempera-
tures.
**2. When dimension "F" is exceeded, it is necessary to add
"Baffle/s" as shown above lower access vent for more
efficient operation in warm temperatures.
Max.
Dim.
Min.
Dim.
Max.
Dim.
A
E
A
LOWER
ACCESS
VENT
INSIDE
DIMENSION
C
INSIDE
DIMENSION
B
INSIDE
DIMENSION
D
INSIDE
DIMENSION

Dometic RM2612 Specifications
