ACCESS PANEL
MODEL DIMENSION
SERIES A B
RM2612, RM3662, RM3663 22" 14"
RM2812, RM2652
RM2852,
RM3862, RM3863,
NDR1062
RM7732, RM7832, NDR1292 32" 16"
RM1272, RM1282, NDR1492 36" 16"
OPTION 3
The Innovator Refrigerator
Ventilation System
A. ISLAND INSTALLATION -
REFRIGERATOR ACCESS (Rear)
Using the Innovator in conjunction with below floor
ventilation, a sealed access panel is required. Access
is necessary to complete gas connections, first instal-
lation gas leak tests, and periodic service require-
ments at the rear of the refrigerator. If located within the
vehicle interior, it shall be completely sealed to prevent
gas leakage within the living space.
If the refrigerator is placed along the sidewall and floor
ventilation is provided, rear access is still required.
This door or panel should prevent water entry. The
following are minimum sizes allowed for each series of
refrigerator:
See installation instructions packaged with the
Innovator Ventilation System (3108705.744), Patent
No. 5,355,693.
IMPORTANT!
MUST BE USED WITH CERTIFIED UPPER ROOF
VENT AND INSTALLED PER OPTION 1 SPECIFI-
CATIONS.
NOTE: See Pages 11 through 13 for approved
Dometic refrigerator vent options.

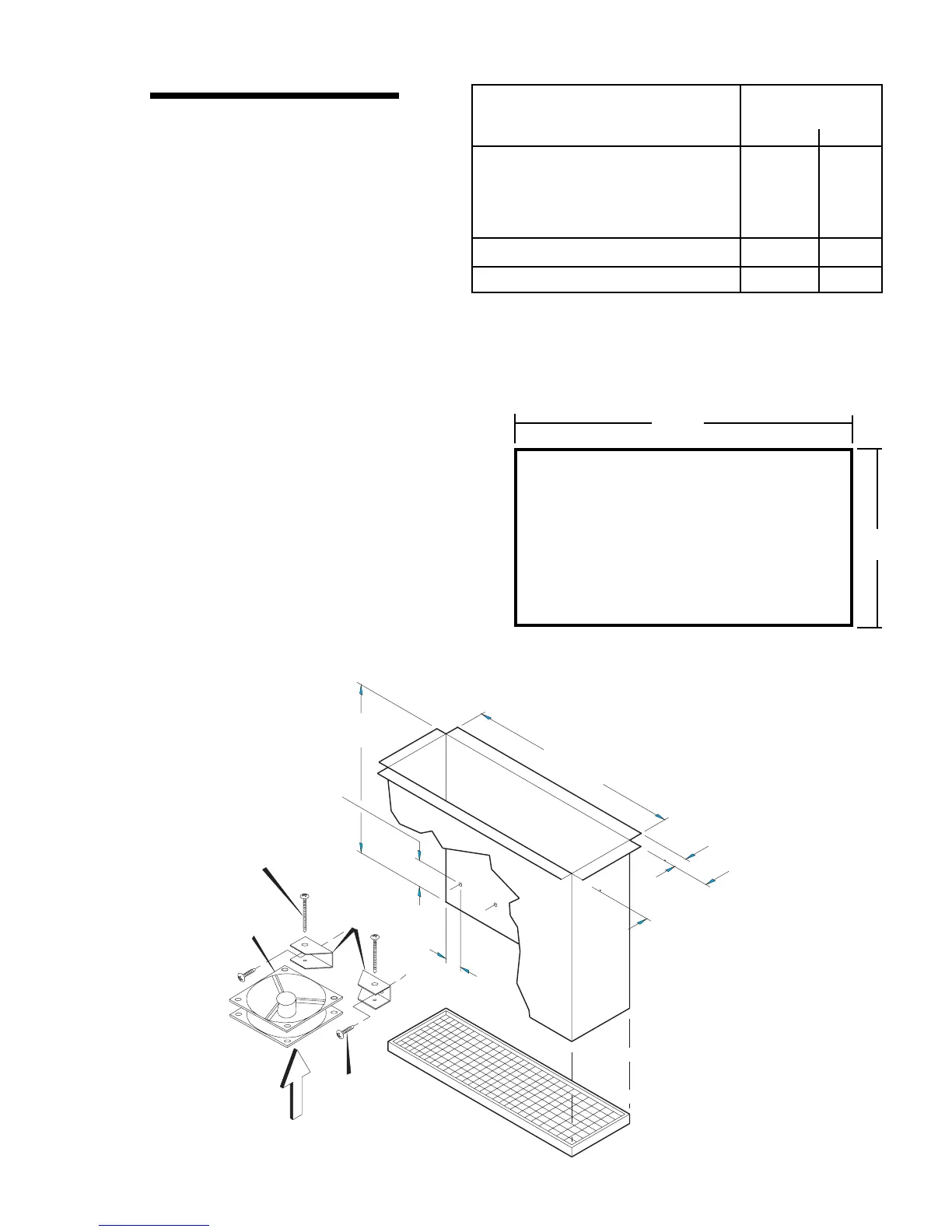

A
B
1-1/2" Typ.
6-1/2"
11" Min.
20" Max.
DUCT
EXTENSION
Varmint
Screen
AIR
FLOW
#6 X 1-1/2"
Screws (2)
#10 F an Mtg.
Bolts
4"
Min.
Mounting
Brackets
Ventilator
Min. 3"
Max. 8"
Min. duct depth 4"
Max. duct depth 54"
To Next Page
