Dometic RM2612 Installation Instructions

5
OPTION 3
The Innovator Refrigerator Ventilation System
B. THE INNOVATOR VENTILATION SYSTEM FOR SINGLE DOOR ABSORPTION REFRIGERATORS
WITH TWO SIDE VENTS.
This Innovator Ventilation System is for use with Dometic's single door refrigerators in applications
where existing minimum vent heights are reduced. Its purpose is to assist required air movement across
the refrigerator condenser to ensure optimum performance.
See Installation Instructions packaged with the Innovator Ventilation System (3108705.751),
Patent No. 5,355,693.
IMPORTANT!
MUST BE USED WITH CERTIFIED UPPER AND LOWER SIDE VENTS AND INSTALLED PER
OPTION 2 SPECIFICATIONS EXCEPT FOR "A" MIN. DIMENSION.
NOTE: See Pages 11 through 13 for approved Dometic Refrigerator vent options.
Model
No. A B C D * E
RM2193 20 20-7/8 4 1 1
RM2202 20-5/8 18 4 1 1
RM4223 20 24-1/2 4-1/2 0 1
RM2332 37 21-3/8 4 1 1
RM2333 37 21-3/8 4 1 1
RM2410 33 24 4 0 1
RM2452 36 24 4-1/2 0 1
RM2453 36 24 4-1/2 0 1
RM2510 37 24 4 0 1
RM2551 44-1/2 24 4 0 1
RM2554 44-1/2 24 4 0 1
Max.
Dim.
Min.
Dim.
Min.
Dim.
Min.
Dim.
Max.
Dim.
(Dimensions in Inches)

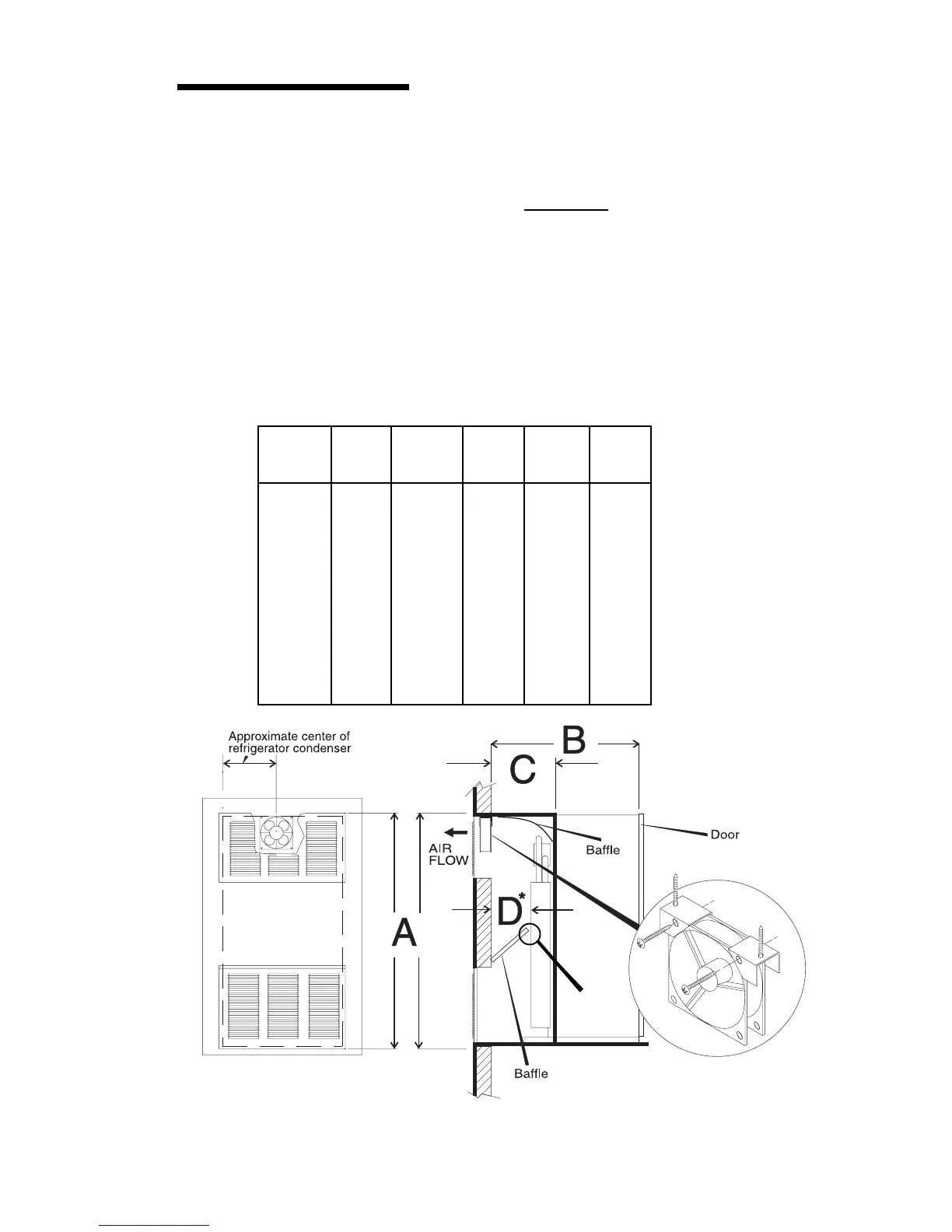

* When dimension "D" exceeds 1", it is necessary to add baffle/s above lower access vent, as
shown, for more efficient operation in warm temperatures.
