Dometic RM2612 Installation Instructions

7
OPTION 3
The Innovator Refrigerator Ventilation System

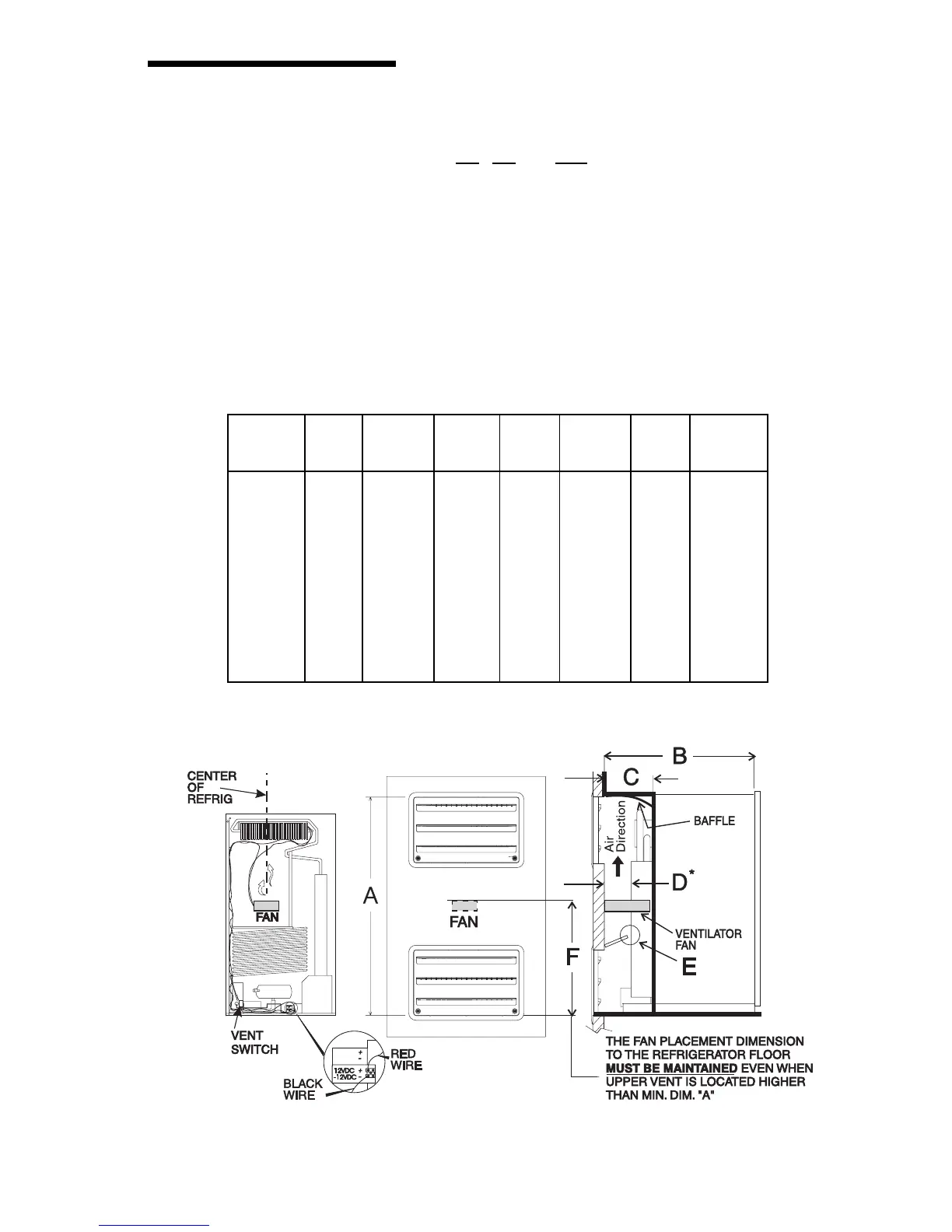

D. INNOVATOR VENTILATION SYSTEM FOR DOUBLE DOOR REFRIGERATOR WITH 2 SIDE VENTS
The power ventilator assembly is for use in Dometic's 6 ft., 8 ft. and 10 ft. refrigerators with two
(2) plastic side vents. Its purpose is to assist required air movement across the refrigerator
condenser to ensure optimum performance.
IMPORTANT!
MUST BE USED WITH CERTIFIED SIDE VENTS AND INSTALLED PER DIMENSION
BELOW WITH INNOVATOR VENTILATION SYSTEM KIT 3108705.744.
See Installation Instructions packaged with the Innovator Ventilation System (3108705.744),
Patent No. 5,355,693.
NOTE: See Pages 11 through 13 for approved Dometic refrigerator vent options.
Model
No.ABCCD *EF
RM2612 49 24-7/8 5-1/8 8 4-1/4 1 34-1/2
RM2652 53 24-5/8 5-1/8 8 3-1/2 1 38-1/2
RM3662 53 24-5/8 5-1/8 8 3-1/2 1 38-1/2
RM3663 53 24-5/8 5-1/8 8 3-1/2 1 38-1/2
RM2812 57 24-7/8 5-1/8 8 4-1/4 1 41-1/2
RM2852 61 24-5/8 5-1/8 8 3-1/2 1 45-1/2
RM3862 61 24-5/8 5-1/8 8 3-1/2 1 45-1/2
RM3863 61 24-5/8 5-1/8 8 3-1/2 1 45-1/2
NDR1062 61 24-5/8 5-1/8 8 3-1/2 1 45-1/2
Max.
Dim.
Min.
Dim.
Min.
Dim.
Min.
Dim.
Max.
Dim.
(Dimensions in Inches)
Max.
Dim.
* When dimension "D" exceeds 1", it is necessary to add baffle/s above lower
access vent, as shown, for more efficient operation in warm temperatures.
