Dometic RM2612 Installation Instructions

8
OPTION 3
The Innovator Refrigerator Ventilation System
E. INNOVATOR VENTILATION SYSTEM FOR SIDE-BY-SIDE REFRIGERATOR WITH 2 SIDE VENTS
The Innovator Ventilation System is for use in Dometic's side-by-side refrigerators with two (2) plastic side
vents. Its purpose is to assist required air movement across the refrigerator condenser to ensure optimum
performance.
IMPORTANT!
MUST BE USED WITH CERTIFIED SIDE VENTS AND INSTALLED PER DIMENSION BELOW WITH
INNOVATOR VENTILATION SYSTEM KIT 3108705.744.
See Installation Instructions packaged with the Innovator Ventilation System (3108705.744),
Patent No. 5,355,693.
NOTE: See Pages 11 through 13 for approved Dometic
refrigerator vent options.

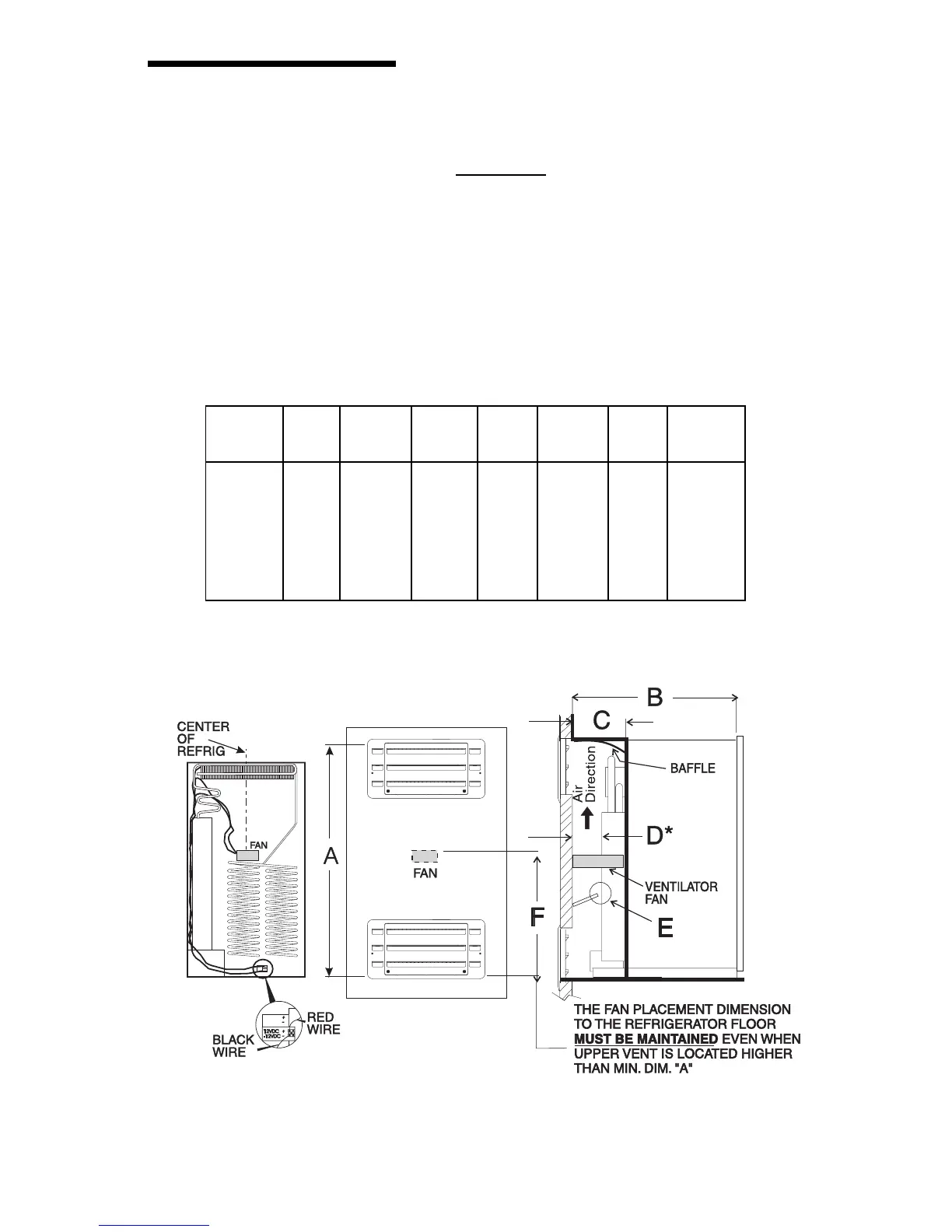

* When dimension "D" exceeds 1", it is necessary to add baffle/s above
lower access vent, as shown, for more efficient operation in warm
temperatures.
Model
No.ABCCD *EF
RM1272 63 24-7/8 5-1/8 8 3-5/8 1 44-1/2
RM1282 63 24-7/8 5-1/8 8 3-5/8 1 44-1/2
RM7732 63 24-7/8 5-1/8 8 3-5/8 1 44-1/2
RM7832 63 24-7/8 5-1/8 8 3-5/8 1 44-1/2
NDR1292 63 24-7/8 5-1/8 8 3-5/8 1 44-1/2
NDR1492 63 24-7/8 5-1/8 8 3-5/8 1 44-1/2
Max.
Dim.
Min.
Dim.
Min.
Dim.
Min.
Dim.
Max.
Dim.
(Dimensions in Inches)
Max.
Dim.
