INSTALLATION INSTRUCTIONS
Side view View from above
D
H A W
D
C
B

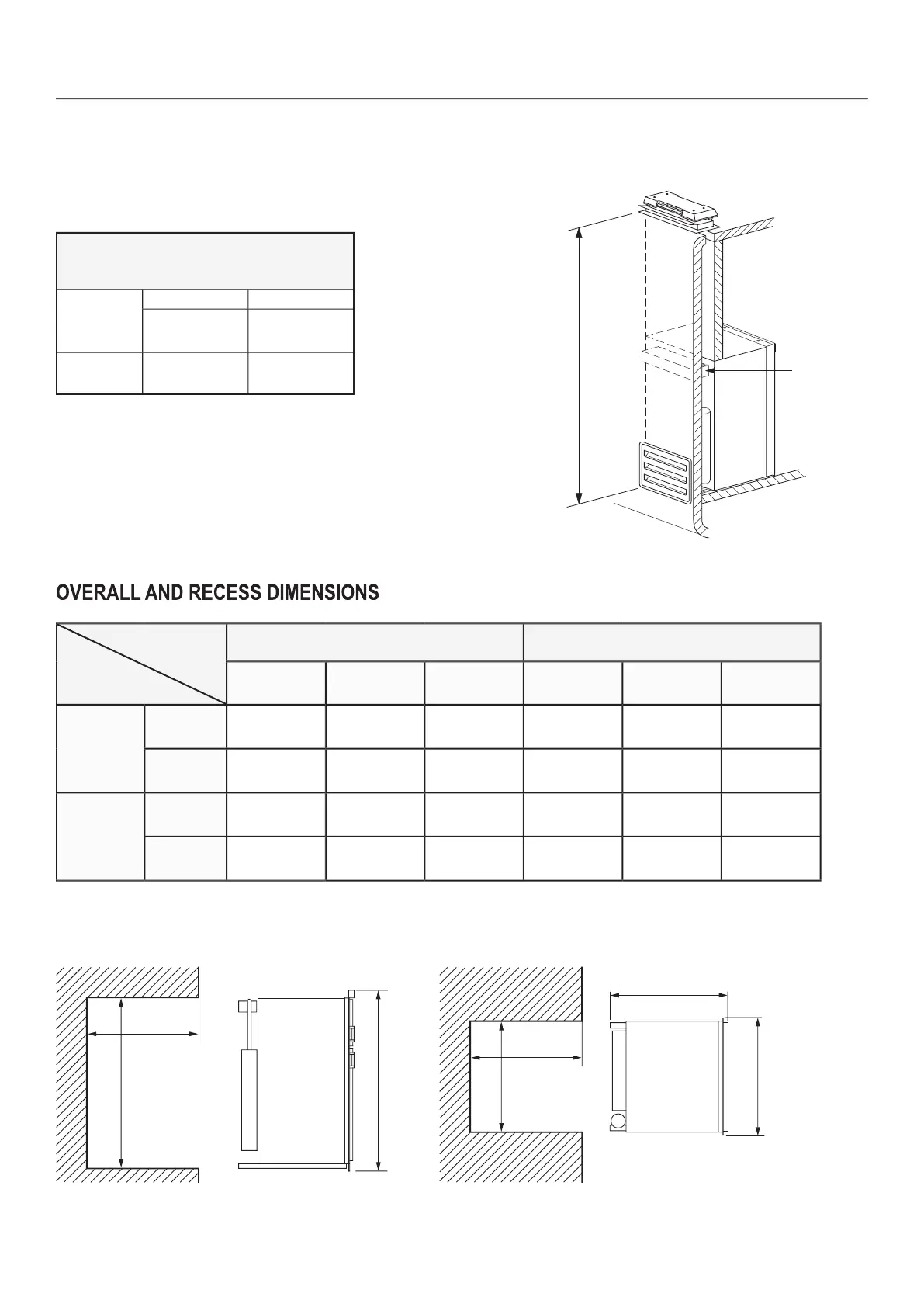

OVERALL AND RECESS DIMENSIONS
Dimensions
Dimensions
Model
Overall
Recess
Height A
Width B
Depth C
Height H
Width W
Depth D
RM2620
inches
51-31/32
22-23/32
24-9/16
49-17/32
21-13/16
24-3/32
mm
1320
577
624
1258
554
612
RM2820
inches
57-7/8
24-39/64
24-9/16
55-7/16
23-11/16
24-3/32
mm
1470
625
624
1408
601
612
VENTILATION HEIGHTS
It is essential that all maximum or minimum dimensions are
strictly maintained, as the performance of the refrigerator is de-
pendent on adequate fl ow of air over the rear of the refrigerator.
Minimum ventilation heights
Installation with roof vent and lower side vent
RM2620
inches
mm
54
1372
RM2820
60
1524
NOTE: The upper vent should be
centered
over the condenser coil
at
the back of the refrigerator.
Minimum
ve
ntilation
heigh
t
Condenser
