Dometic RM2620 User Manual

- 9 -

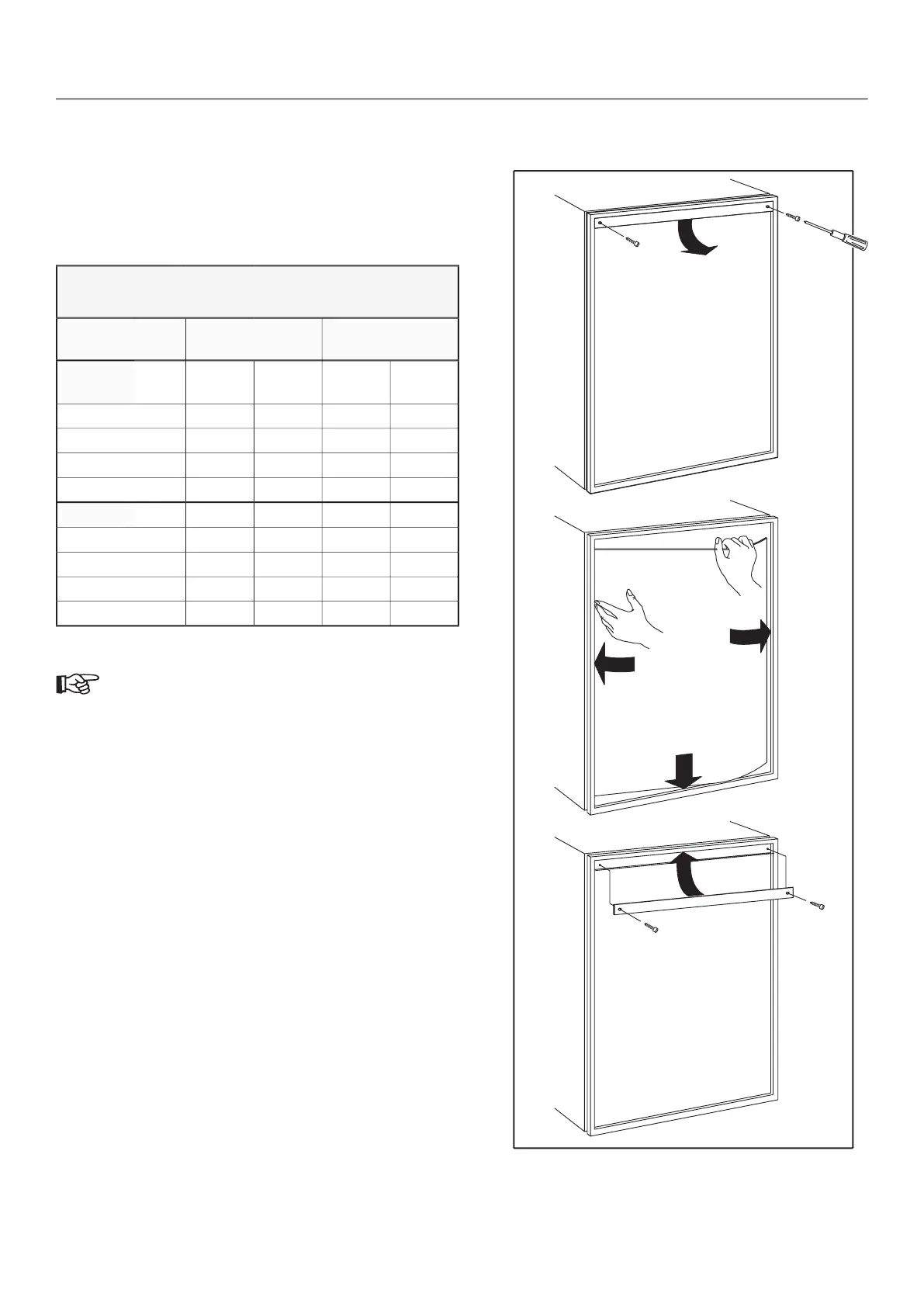

MOUNTING INSTRUCTIONS
INSTALLING THE DOOR PANELS
The refrigerator is normally delivered without door panels.
Before starting the mounting work, read this instruction thor-
oughly and check that the panel dimensions are in compliance
with those given in the “Panel dimensions” table.
Panel dimensions
max. thickness 5/32" (4 mm)
Refrigerator
model
Height
max
min
Width
max min
RM2620
upper
mm
306
304
515
513
inch
12-3/64
11-31/32
20-9/32
20-13/64
lower
mm
819
817
515
513
inch
32-1/4
32-5/32
20-9/32
20-13/64
RM2820
upper
mm
378
376
563
561
inch
14-7/8
14-51/64
22-11/64
22-3/32
lower
mm
897
895
563
561
inch
35-5/16
35-15/64
22-11/64
22-3/32
To install the door panels, follow these steps:
Open the door 90 degrees.
On new refrigerators, the decoration strips are taped
inside the door; if installed on the door, remove
the door decoration strip (2) by removing its two
screws (1).
Insert one vertical edges into the groove of the door
frame (3).
Bend the panel gently so that the free side of the
panel can be slipped into the corresponding groove
of the door frame (4).
Slide the panel down into the groove of the bottom
frame (5).
Put the decoration strip across the door so that the
gap between the upper edge of the panel and the
door frame is covered and then, push it upward (6).
The tabs on the inside of the strip should fi t behind
the fl ange of the door frame.
Secure the decoration strip with the two screws
removed in step 1.
1.
2.
3.
4.
5.
6.
7.
1
1
2
3
4
5
6
1
1
