4
ACCESS PANEL
MODEL DIMENSION
SERIES A B
RM2612, RM2620, RM2652,
RM3662, RM3663, 22" 14"
RM2812, RM2820, RM2852,
RM3862, RM3863,
NDR1062
NDR1292 32" 16"
RM1272, RM1282, NDR1492 36" 16"

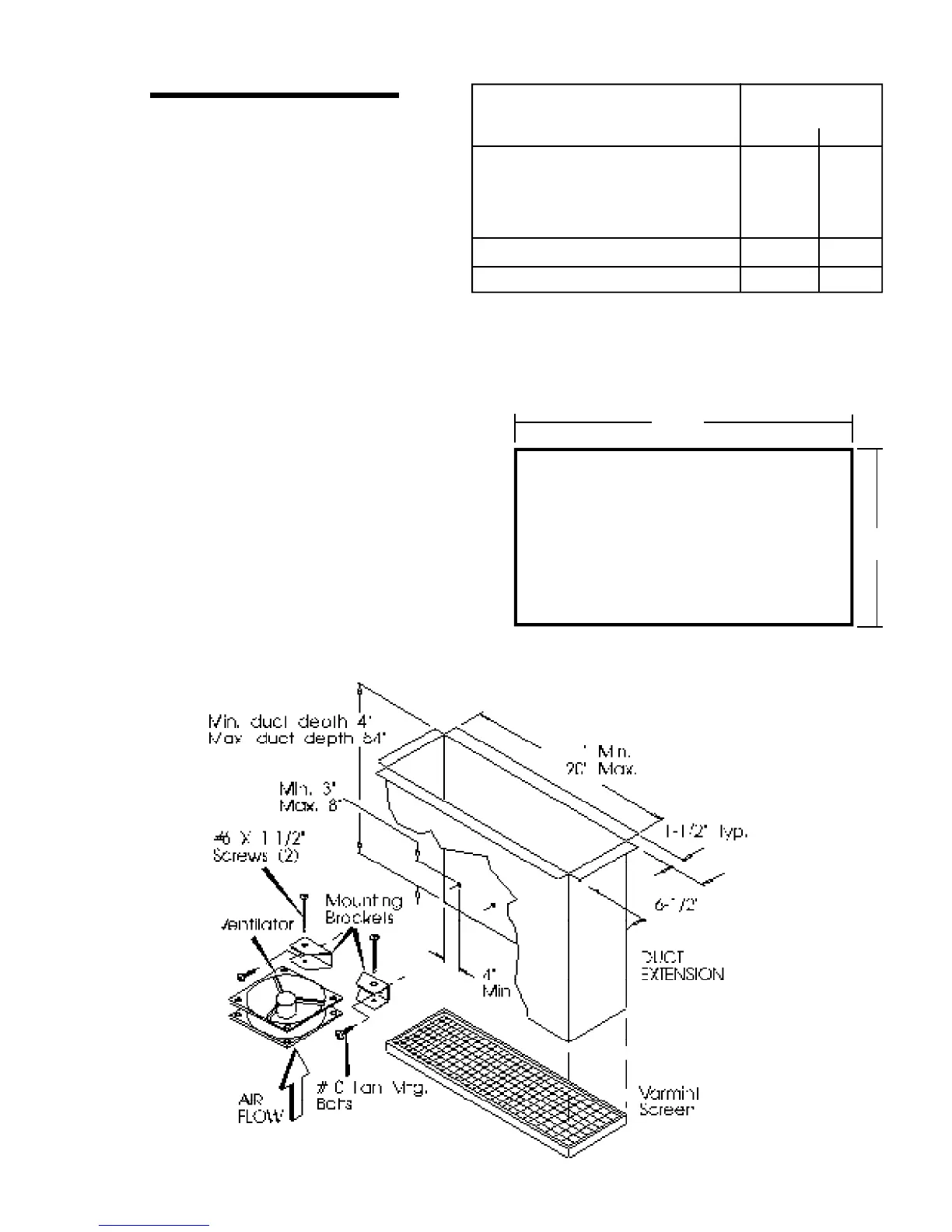

OPTION 3
The Innovator Refrigerator
Ventilation System
A. ISLAND INSTALLATION -
REFRIGERATOR ACCESS (Rear)
Using the Innovator in conjunction with below floor
ventilation, a sealed access panel is required. Access
is necessary to complete gas connections, first instal-
lation gas leak tests, and periodic service require-
ments at the rear of the refrigerator. If located within the
vehicle interior, it shall be completely sealed to prevent
gas leakage within the living space.
If the refrigerator is placed along the sidewall and floor
ventilation is provided, rear access is still required.
This door or panel should prevent water entry. The
following are minimum sizes allowed for each series of
refrigerator:
See installation instructions packaged with the
Innovator Ventilation System (3108709.936 and
3108709.944), Patent No. 5,355,693.
Important: Must be used with certified upper roof
vent and installed per Option 1 Specifications.
Note: See Pages 10 through 15 for approved Dometic
refrigerator vent options.
A
B
