6
OPTION 3

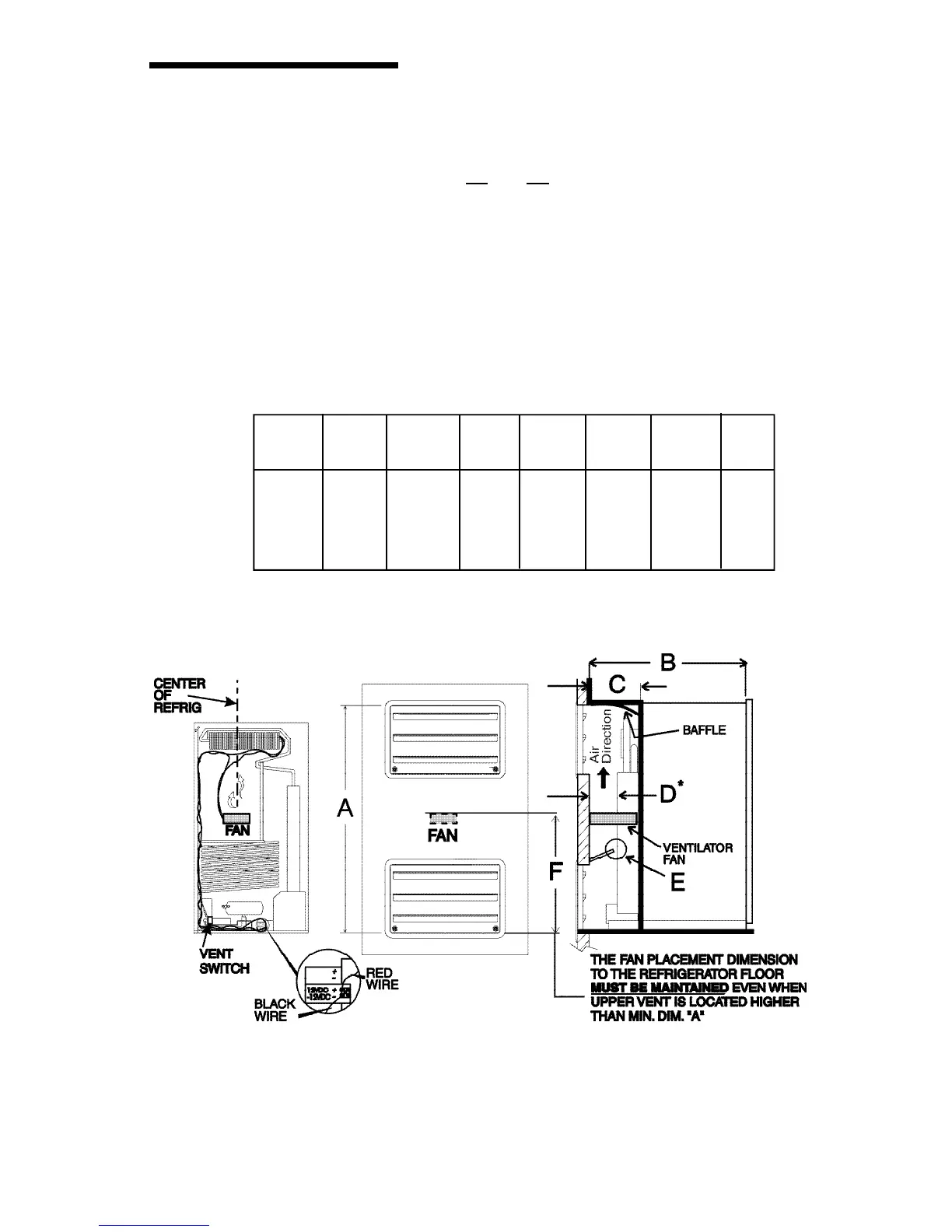

The Innovator Refrigerator Ventilation System
C. INNOVATOR VENTILATION SYSTEM FOR SINGLE DOOR REFRIGERATORS
WITH 2 PLASTIC SIDE VENTS
The Innovator Ventilation System is for use in Dometic's 4 ft
. and 5 ft. refrigerators with
two (2) plastic side vents. Its purpose is to assist required air movement across the
refrigerator condenser to ensure optimum performance.
Important: Must be used with certified side vents and installed per dimension
below with Innovator ventilation system kit 3108705.751.
See Installation Instructions packaged with the Innovator Ventilation System
(3108705.751), Patent No. 5,355,693.
Note: See Pages 10 through 15 for approved Dometic refrigerator vent options.
Model
No.ABCCD *EF
RM2452 36 24-5/8 5-1/8 8 3-1/2 1 **
RM2453 36 24-5/8 5-1/8 8 3-1/2 1 **
RM2551 42 24-5/8 5-1/8 8 3-1/2 1 **
RM2554 42 24-5/8 5-1/8 8 3-1/2 1 **
Max.
Dim.
Min.
Dim.
Min.
Dim.
Min.
Dim.
Max.
Dim.
(Dimensions in Inches)
Max.
Dim.
* When dimension "D" exceeds 1", it is necessary to add baffle/s above lower
access vent, as shown, for more efficient operation in warm temperatures.
** Fan mounting height should be determined by measuring to the center on the back
of refrigerator and centered in space between absorber coils and condenser coil.
