4.3 Explanation of operating
controls
Refrigerator operation
Manual energy selection / manual ignition (Piezo igniter) :
4.3.1 Electrical operation
1 = Power On switch / Energy selector switch
2 = Flame indicator (galvanometer)
3 = Temperature controller
4 = Piezo igniter (gas)
Explanations:
The refrigerator is equipped to operate on
mains power, 12V DC or propane gas. Select
the desired power supply by turning the ener-
gy selector switch (1) . The energy selector
switch (1) has four settings:
Off (2)
Mains voltage (120V AC) (3)
Direct-current voltage (Battery, 12V DC)
(4)
Gas (propane) (5)

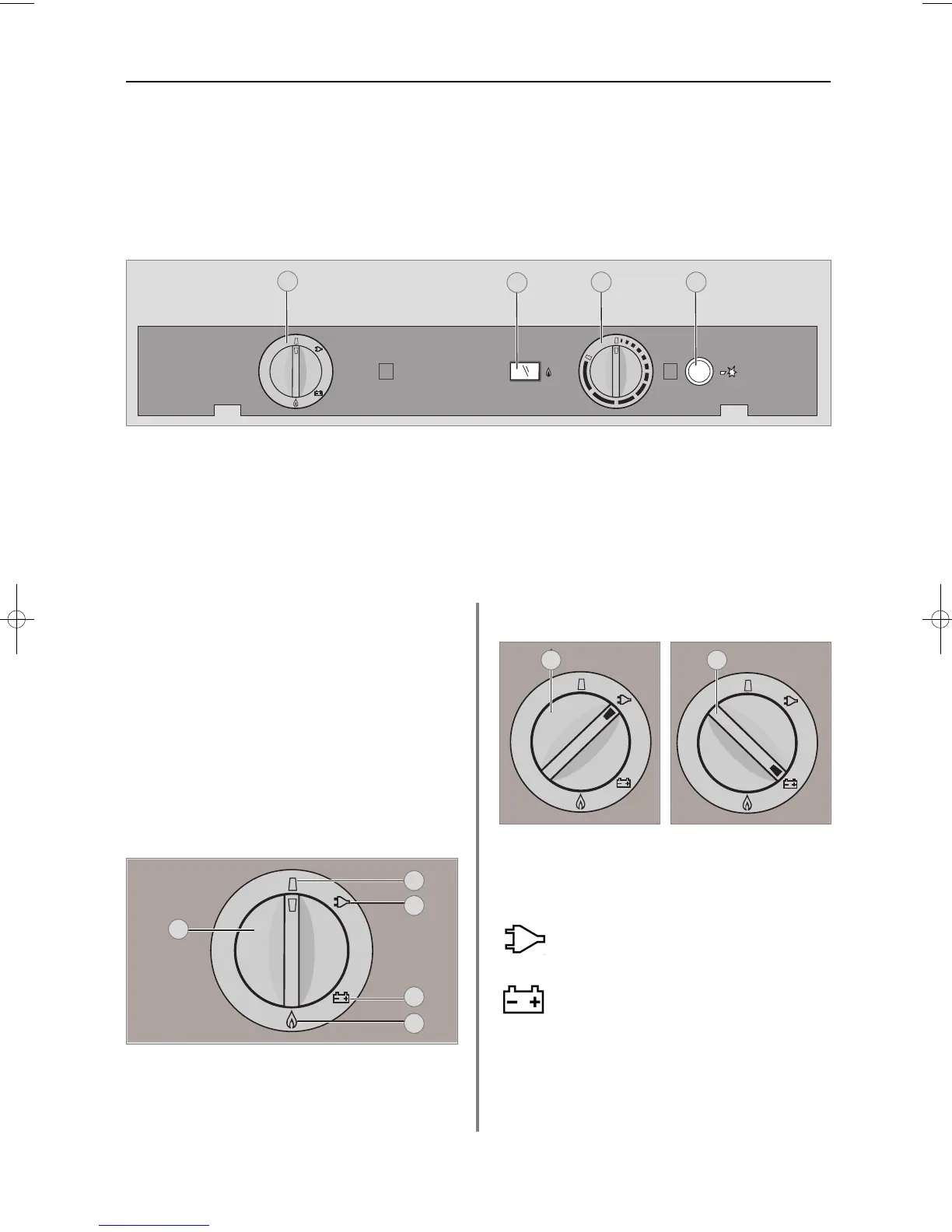

Fig. 5
Fig. 6
1
2
3
4
5
1
2
3 4
Fig. 7 Fig. 8
Switch on the appliance by turning the energy
selection switch (1) clockwise to position :
1 1
for 12V operation.
for 120V operation,
To Next Page
