4.6 Operation RM 8xx1 models

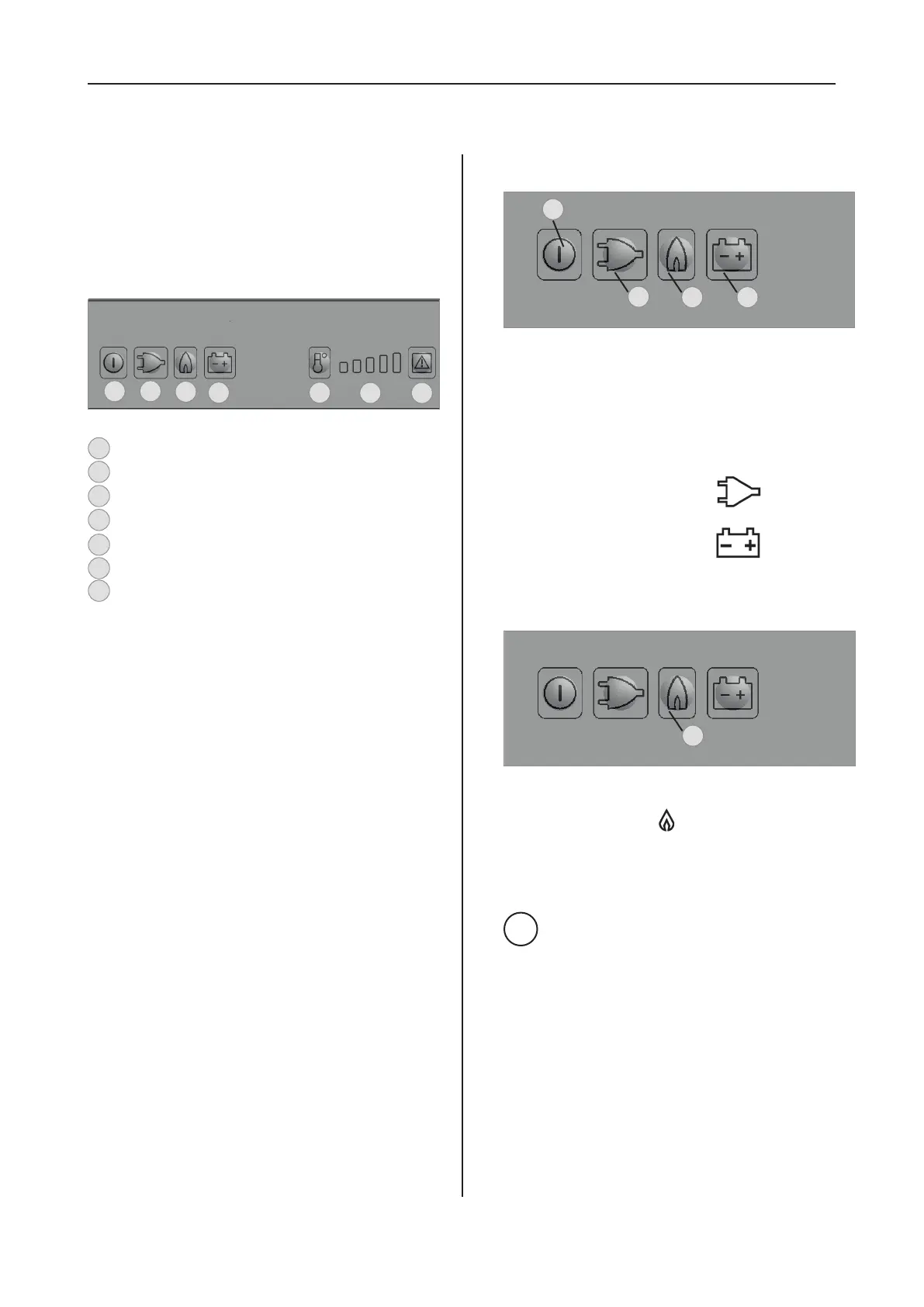

Fig. 6
Manual energy selection / automatic igniti-
on (RM 8xx1) MES :
= Power ON/OFF switch
= Energy selector button 120V ~
= Energy selector button GAS
= Energy selector button 12V =
= Temperature level selection
= Temperature level display
= Indicator LED failure /
Reset button GAS FAILURE
2
1
3
4
6
7
8
1 2
3
4 6
7 8
120V AC operation
Select “Mains voltage” by pressing button (2)
Set temperature step by pressing button (6)
Switching ON/OFF
Switch ON by pressing button (1), 2s
Switch OFF by pressing button (1), > 2s
12V DC operation (vehicle’s battery)
Select “Battery voltage” by pressing button
(4)
Set temperature step by pressing button (6)
Gas operation
Select “Gas” by pressing button (3)
Set temperature step by pressing button (6)
Fig. 7
To start the refrigerator, press button (1) for 2
seconds.
The refrigerator starts with the last selected
type of energy.
120V operation :
Press button (2) :
12V operation :
Press button (4) :
1
2
4
4.6.2 Electrical operation
4.6.1 Explanation of operating controls
3
Fig. 8
3
Gas operation :
Press button (3) :
The ignition process is activated automatical-
ly by means of an automatic igniter.
The flame extinguishes after reaching the pre-
set cooling compartment temperature and
ignites again if the cooling compartment tem-
perature increases again. If the flame is not lit
after the first ignition attempt, the automatic
igniter repeats the ignition twice (duration 30 s)
at time intervals of 2 minutes. If the flame is
not lit afterwards, a fault is indicated.
4.6.3 Gas operation
Refrigerator operation
i
