7.2 Installing the refrigerator
The distance between the refrigerator and the back wall has an impact on the cooling performance and power con-
sumption. For optimal cooling performance:
➤ Ensure that the clearance between the refrigerator and the rear wall is at least 10 mm and not more than 25 mm.
➤ If a clearance of >25 mm cannot be avoided: Install an air guide, e.g. a ventilation plate, to reduce the air duct
to a maximum width of 25 mm.
Air inlet vents and air outlet vents (3a and 3b) must be installed in the outer wall so that the air can circulate and the
heat generated can be dissipated to the outside.
➤ Select one of the following installation variants depending on the installation situation:
– Installation with two rear vents (fig. 9, page 16)
– Installation with one lower rear vent and one roof vent (fig. 0, page 18)

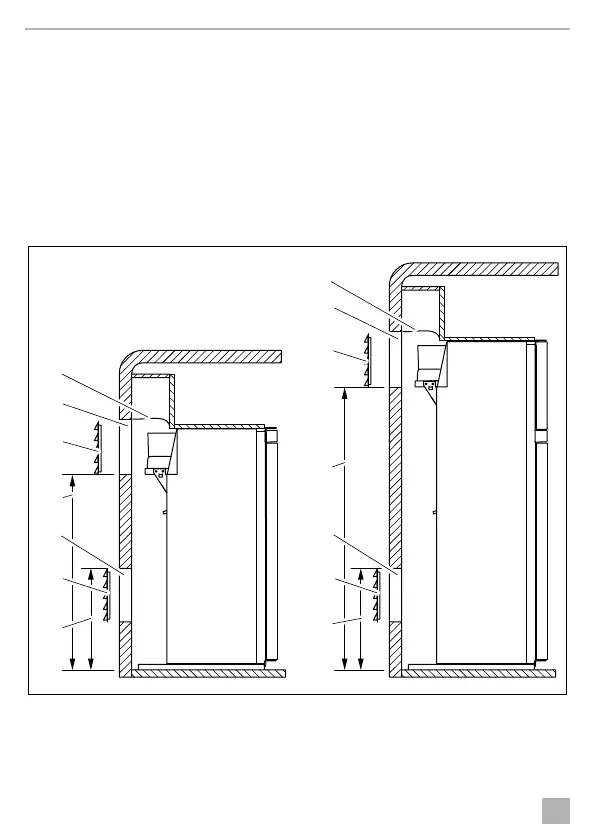

Installation with two rear vents
