RUC5(x)08X, RUC6(x)08X, RUC8(x)08X Using the refrigerator
EN
33
1. Push the locking clamps upwards and remove them (1.).
2. Slide the shelf to the left until the plastic holders on the right side are free (2.).
3. Tilt the right end of the shelf up until the plastic holders on the left side are free (3.).
4. Pull the shelf out frontwards.
Refitting the shelves

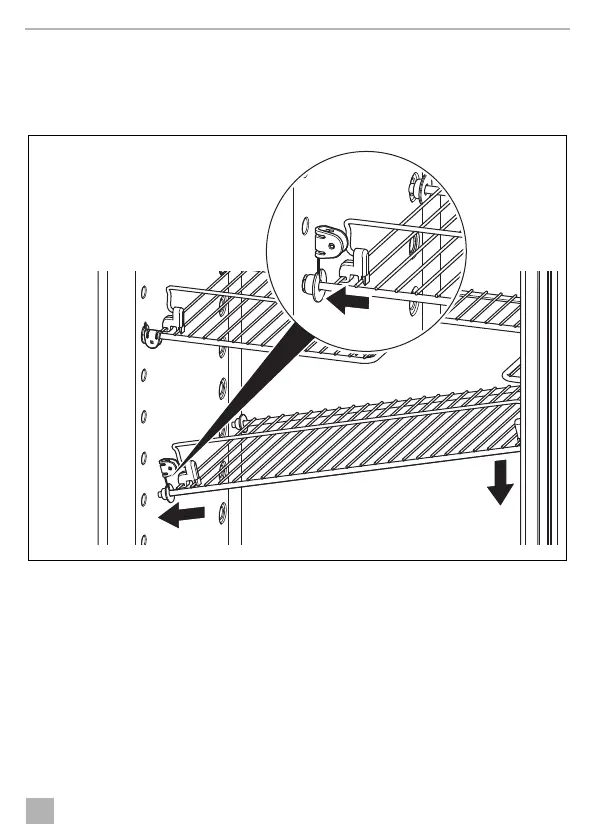

1. Tilt the right end of the shelf up to slide the shelf back into the refrigerator compartment.
2. Position the plastic holders on the left side in the suspension (fig. r 1.).
3. Tilt the right end of the shelf down to align it level and slide the plastic holders on the right side into the suspen-
sion. (fig. r 2.).
4. Ensure that the plastic holders are firmly seated in the suspensions (fig. r 3.).
5. Reattach the locking clamps (fig. s).
1.
2.
3.
r
