RUC5208X, RUC6408X, RUC8408X Using the refrigerator
47

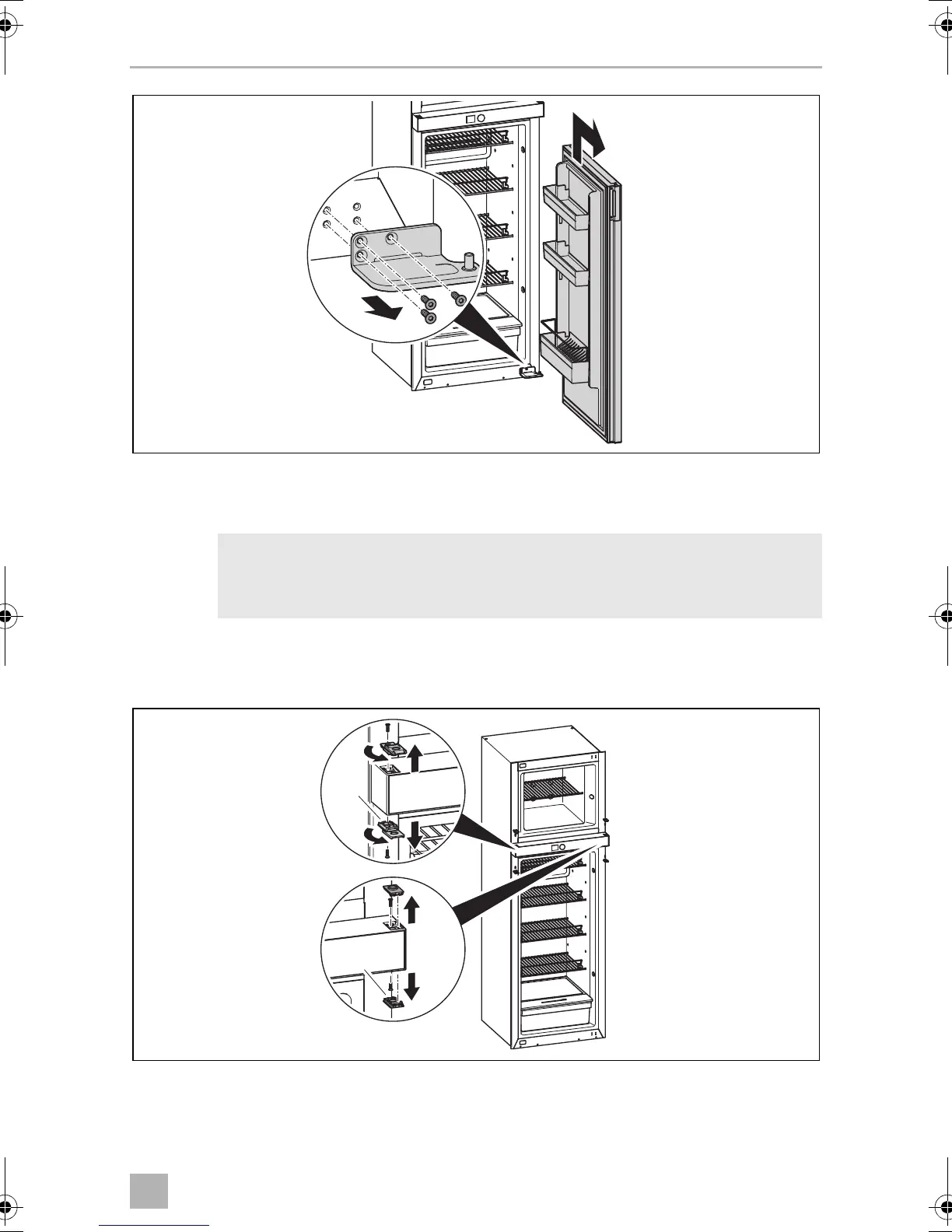

➤ Remove the refrigerator door by lifting it up until it clears the lower pin (1. in
fig. H).
I
➤ Place the refrigerator door on soft material in order to prevent scratches.
➤ Remove the three screws from the lower hinge (2. in fig. H).
➤ Rotate the locking catches on the latch side by 180 degrees to expose the fixing
screws.
NOTE
Carefully lift up the refrigerator door to prevent damaging the door
bushing.
