Using the refrigerator RUC5208X, RUC6408X, RUC8408X
46

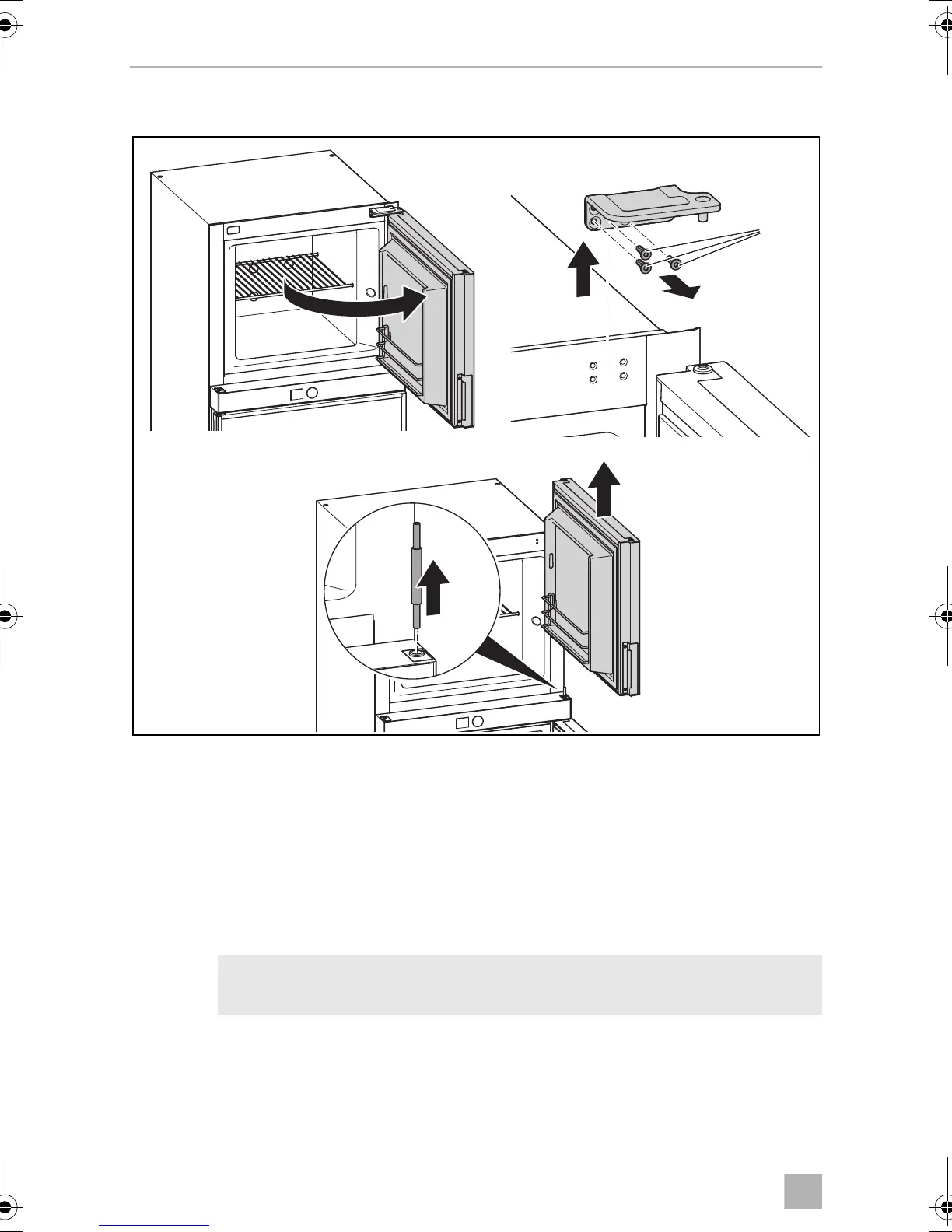

9.18 Reversing the doors for RUC6408X, RUC8408X
➤ Open the freezer door more than 90 degrees.
➤ Remove the three screws (fig. G 1) from the upper hinge.
➤ Pull the upper hinge upwards out of the bushing and away from the freezer door
(2. in fig. G).
➤ Remove the freezer door by lifting it up until it clears the centre hinge pin (3. in
fig. G).
I
➤ Place the freezer door on soft material in order to prevent scratches.
➤ Support the refrigerator door so that it does not fall off.
➤ Pull out the centre hinge pin (4. in fig. G).
NOTE
Carefully lift up the freezer door to prevent damaging the door bushing.
≥90°
1.
2.
1
