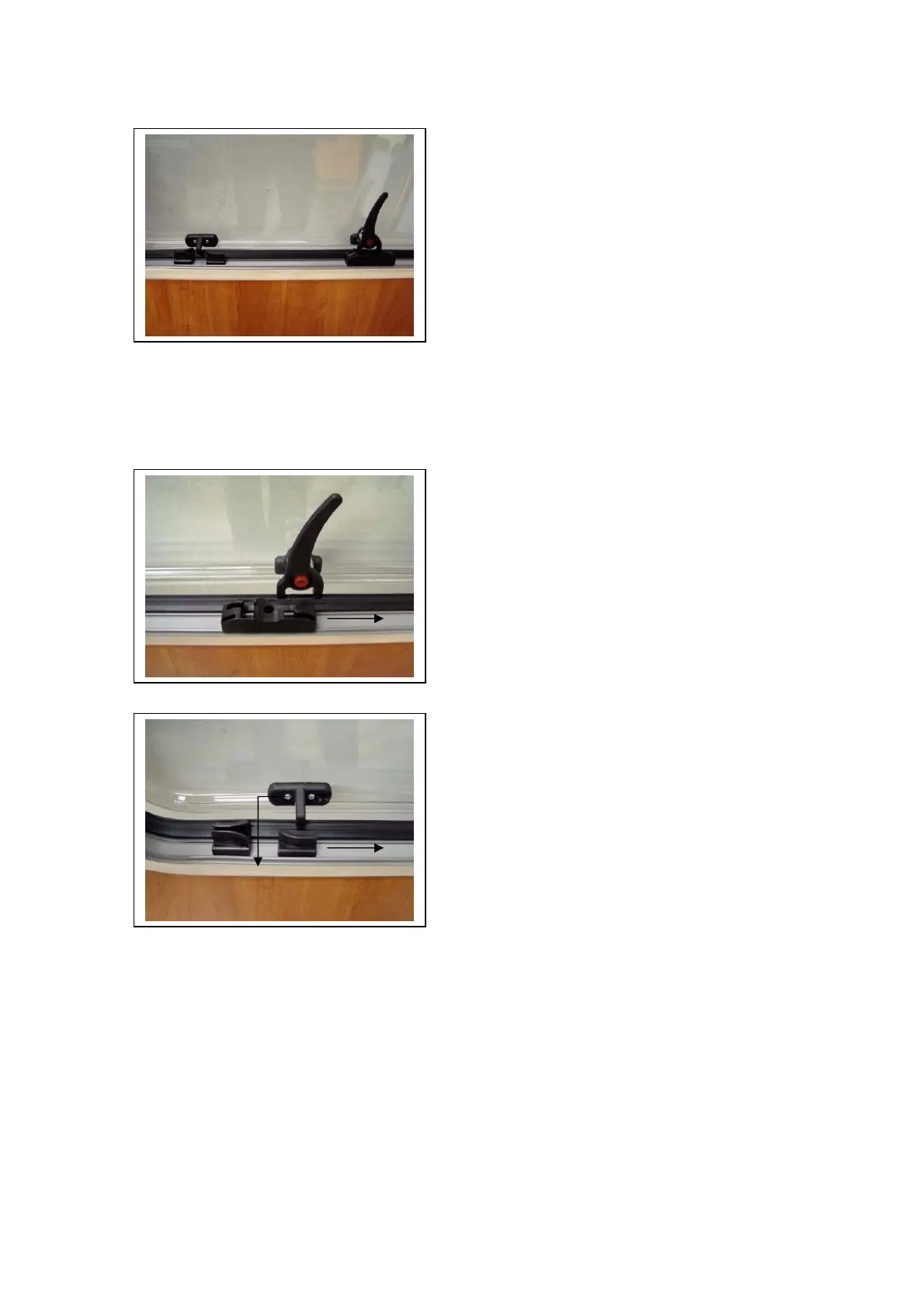

The right journal of the handle moves both the
fixed cam positioning on the sliding belt and
the sliding cam in a position where the fixed
cams on the pane get free and the window can
be swivelled outwards (Photo 9).
Open the window until it locks in the required
position. To close the window, the pane is
swivelled outwards only a little bit, and then
closed slowly. The stays allow to close the
window by swivelling outwards just a little bit
from any engaged position.
Attention!
If the lock cam on the sliding belt moved in an
opened position of the window by accident,
move it back carefully by hand in a position
which allows an easy insertion of the tenon into
the cam mortise (Photo 10 and 11). Otherwise
the window cannot be closed!
The toggle catch of the central locking system
contains a red safety button. Always press the
button strongly in order to ensure a long term
function. Otherwise it can destroy the safety
button and the central locking system.
Do not use force!
Photo 11
Photo 9
Photo 10
