10.The clamps are covered by a seal from inside
(siehe picture cross section).
11.Check function after installation.
.
12. Remove the protectice foil from the window
pane.
Operating instructions
Attention: Always close the window before
setting off or leaving the vehicle.
S7-Windows
To open the window all toggle catches must be
opened. Press the knob in the middle of the toggle
catch and turn through 90°. The pane is now
swivelled open until it locks in the required position.
To close the window, the pane is pushed open a little
bit and then slowly closed again. The stays allow to
close the window by swivelling outwards just a little
bit from any engaged position. To lock the window
press the knob in the middle of the toggle catch and
turn all toggle catches trough 90°.
S7Z - Window
It is enough to use only one toggle catch
(central locking system) to open the window.
Press the red button in the middle of the toggle
catch and turn it 90° anticlockwise (Photo 8).
PVC-Keder
Schiebeband
Sliding belt
Kunststoffkeder
Seal
Festnocken
Fixed cam
Schiebenocken
Sliding cam

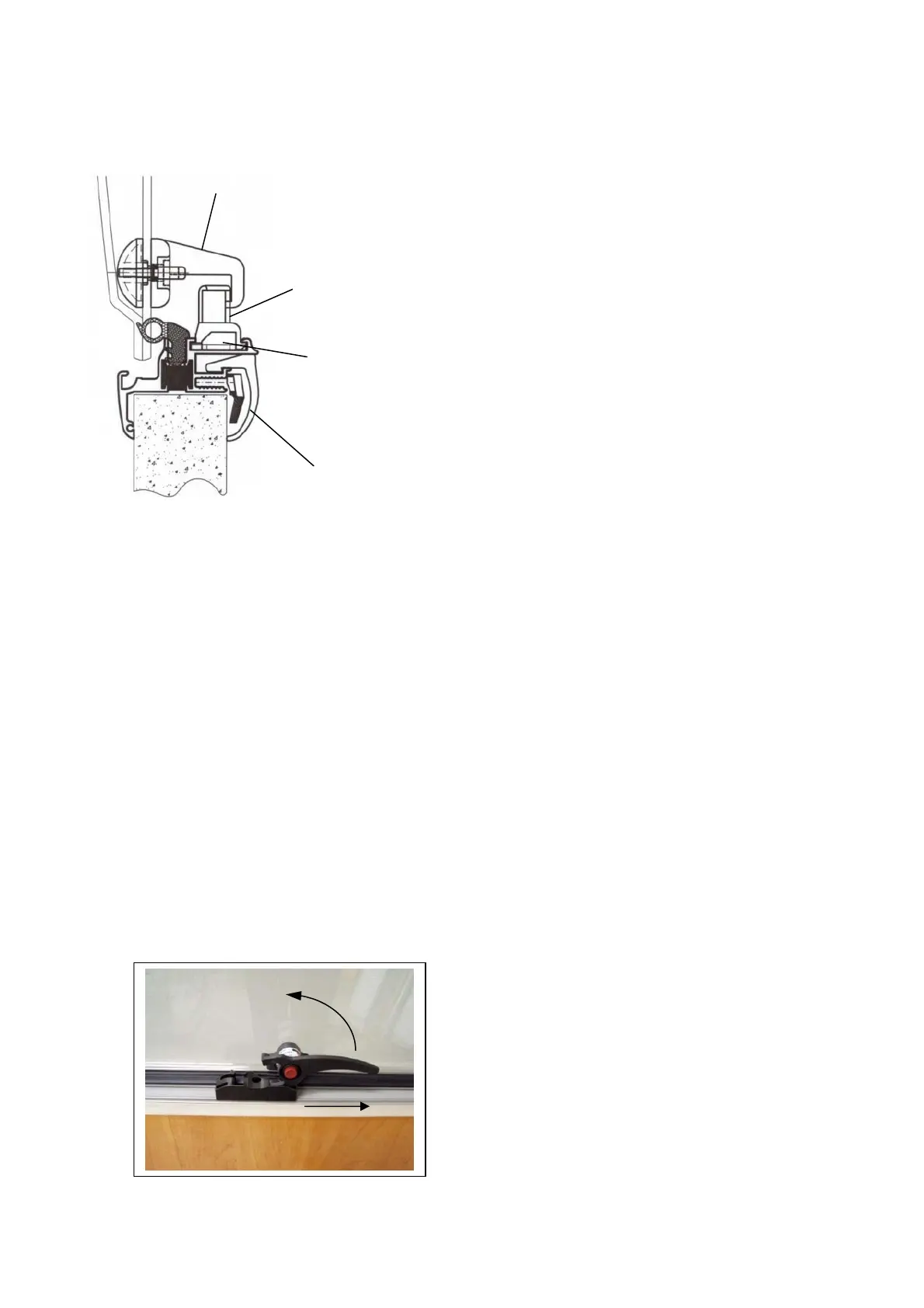

Vertikalschnitt S7Z - Fenster
Cross section S7Z - Window
Photo 7
Photo 8
