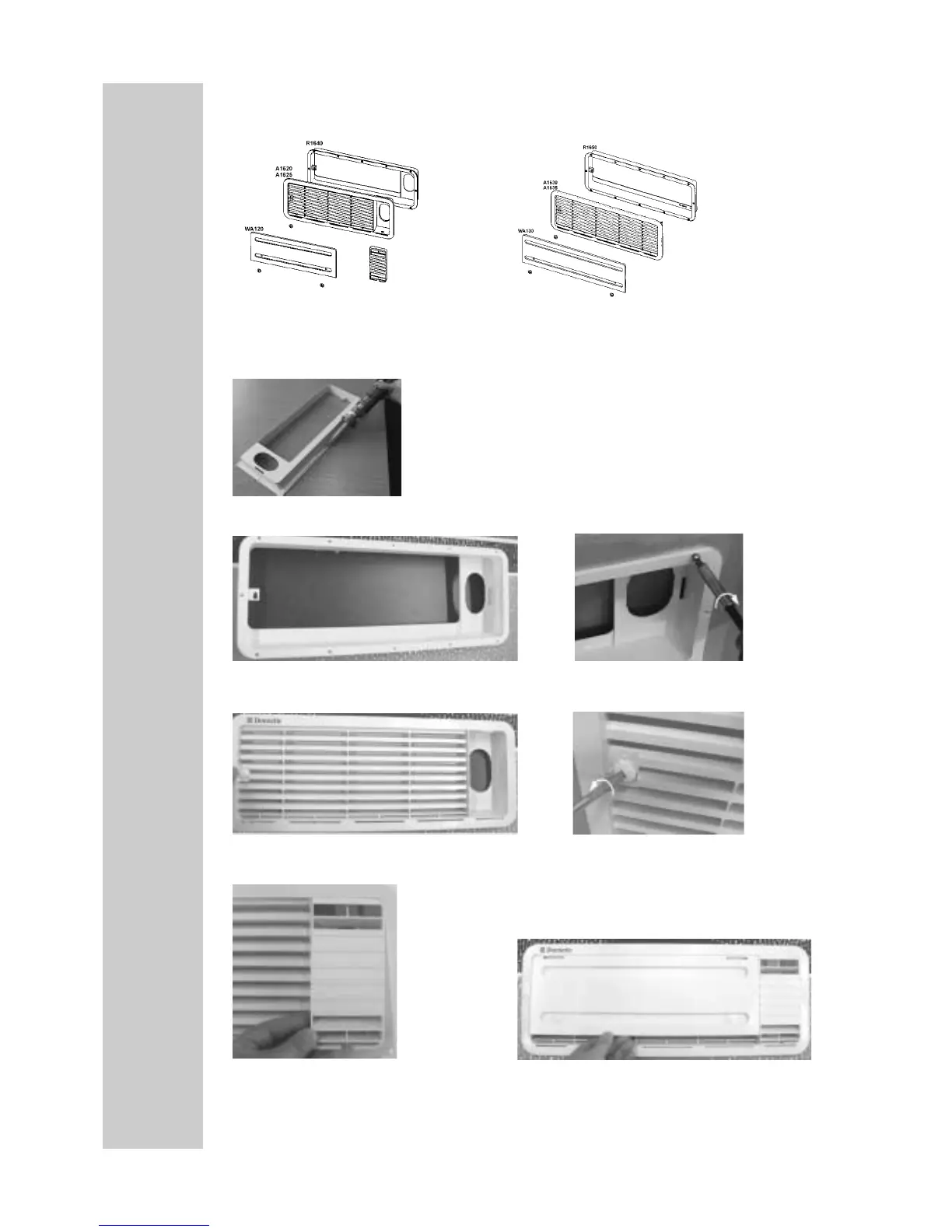

Installing the ventilation system6.4
3. Insert the ventilation grilles.
6. Insert winter cover
2. Insert the frame ...
4. Lock the ventilation grilles.
5. Clip the extractor insert in position
(only for upper ventilation system L100)
... and screw into position.
1. Seal the mounting frame, making it waterproof.
Item 1 does not apply for installation framess with an
integrated seal.
To install the ventilation grilles, cut two rectangles (451mm x 156mm) in the
outer wall of the vehicle (for position of the cuts, see point 6.3).
