OPERATION
(4) Flip label
4 Issue 1 January 2008
ge of the print
terial.
The total 180 degrees rotation is produced when the Mirror and Flip label function are
activated at the same time.
To do this press the “default” button once.
Notice that the button is now reversed
When the default button is reversed press the setting you wish to reset.
If the default button is pressed accidentally, press it again to deselect the button.
Mirror
Both the “Flip label” and the “Mirror” feature produces a mirror ima
and may be used to advantage if printing on the inside of transparent ma
The Flip label function produces a mirror image around the X-axis and the Mirror
function produces a mirror image around the Y-axis.

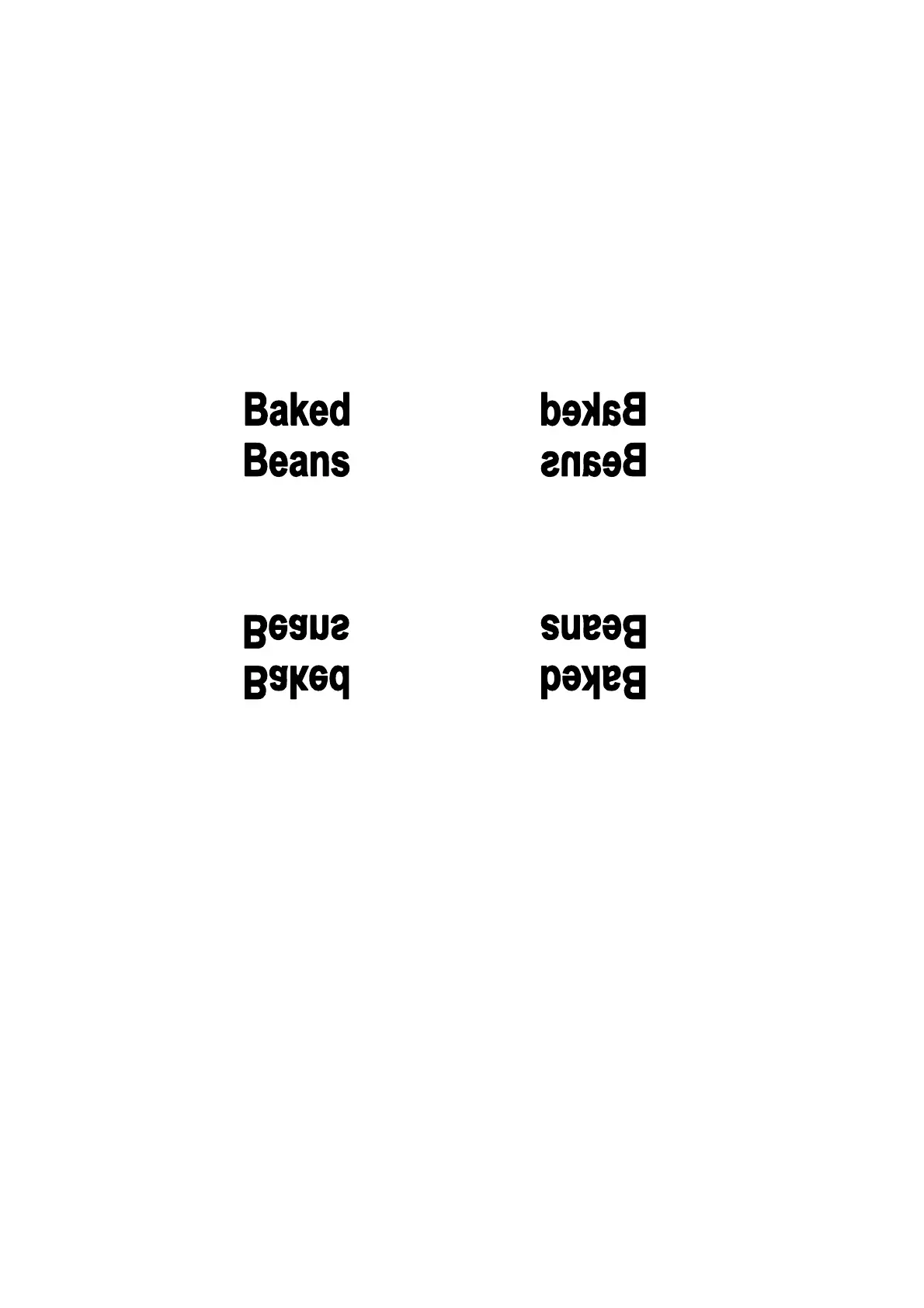

Original
Mirrored
Flipped
Flipped and
mirrored
(5) Default
The default button allows you to reset a single setting to the factory default.
(
