DongFeng S30 - Page 133

Circuit Diagrams of Electrical Appliances
21-122

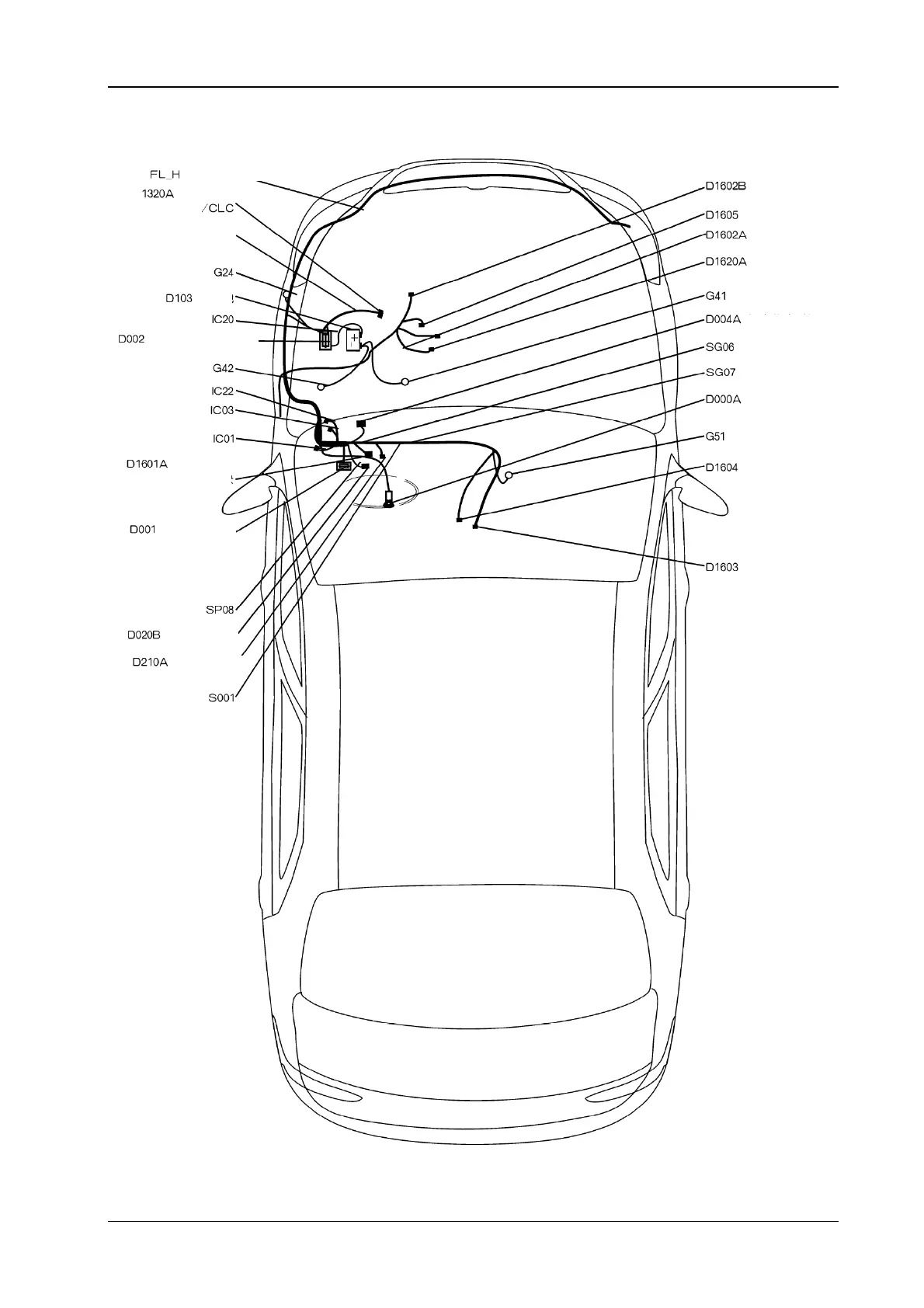

6.1 The electrical location diagram for the automatic transmission S30/H30
The front wiring harness
The engine compute
r
EG_H The engine wiring harness
Battery
The engine compartment
fb
A
utomatic transmission
control module
Cabin fuse box
The light combined
switch
The brake light
combined switch
The gear selection switch
Input speed sensor
The transmission unit
The vehicle speed sensor
The combined instrument Blue
The ignition switch
Transmission shift lock
Mode selection switch
