Circuit Diagrams of Electrical Appliances
21-126

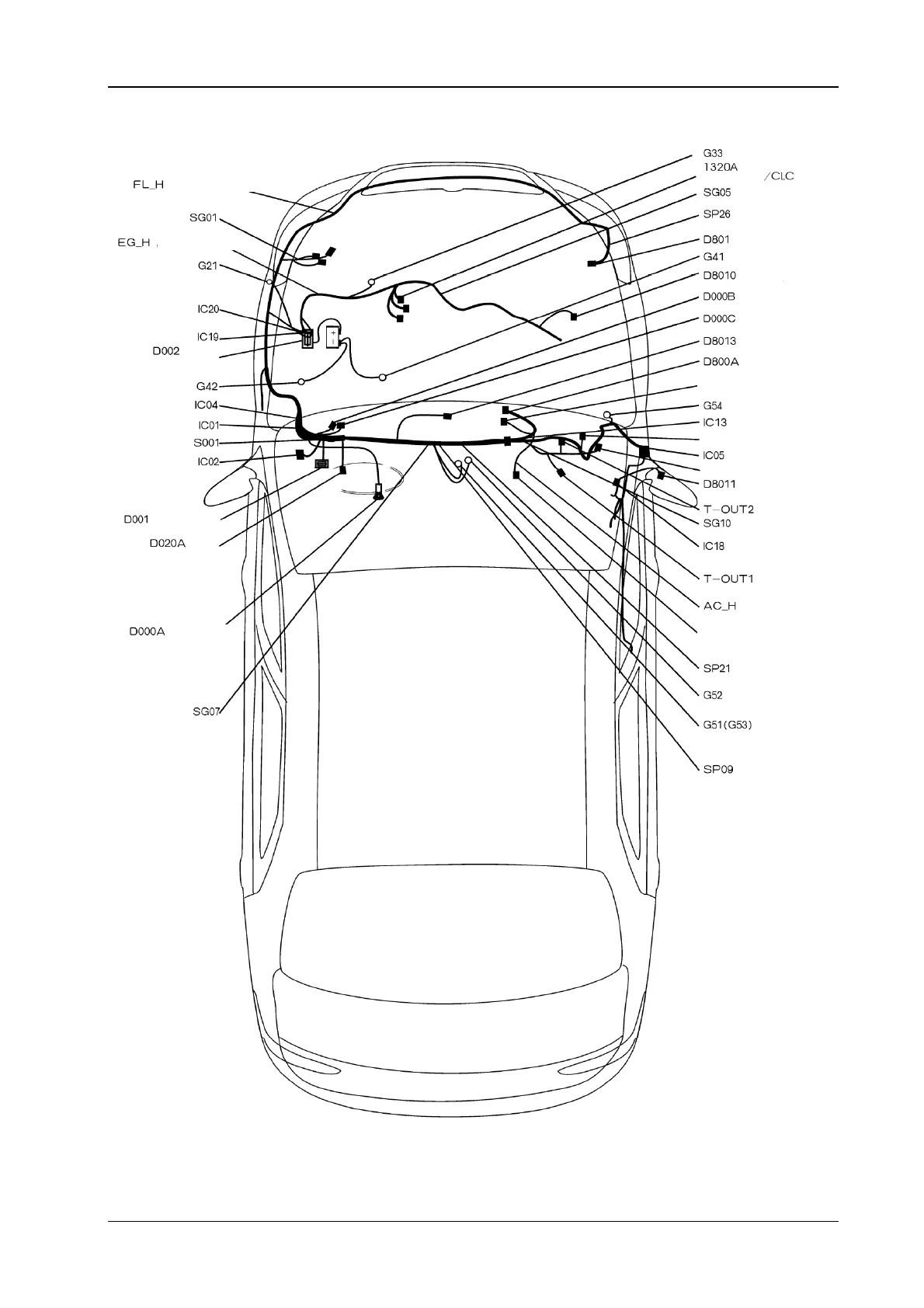

8.1 The electrical location diagram for automatic air conditioning S30/H30
The front wiring harness
Engine wiring harness
The engine compartment fuse box
Cabin fuse box
The light combined switch
The ignition switch
Engine computer
Air conditioning
pressure switch
Air conditioning compressor
The sun light sensor
Air conditioning control module
Water temperature sensor
Evaporator temperature sensor
The air blower motor
The ambient temperature sensor
Air conditioning wiring harness
The vehicle internal temperature sensor
