Circuit Diagrams of Electrical Appliances
21-128

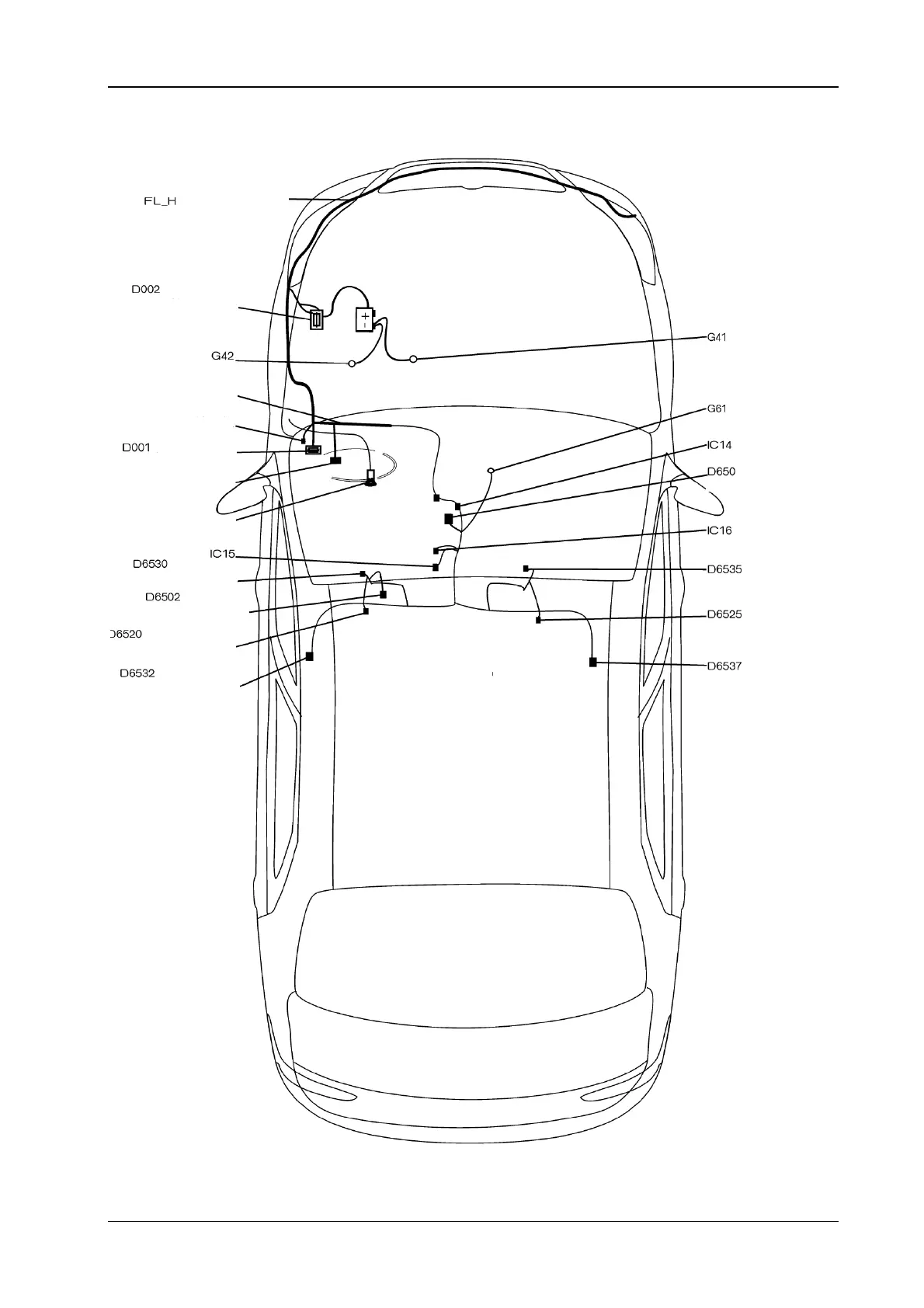

9.1 The electrical location diagram for safety air bag S30/H30
The engine compartment
The front wiring harness
IP_H The instrument panel wiring
harness
D003 Diagnostic apparatus
Cabin fuse box
D004B The combined instrument
D000A The ignition switch
The driver side safety belt
The safety air belt warning switch
The driver side safety belt
pre-tensioner
The driver side collision sensor
The safety air bag control module
The passenger side safety belt
The passenger side safety belt
pre-tensioner
The passenger side collision
sensor
