Circuit Diagrams of Electrical Appliances
21-130

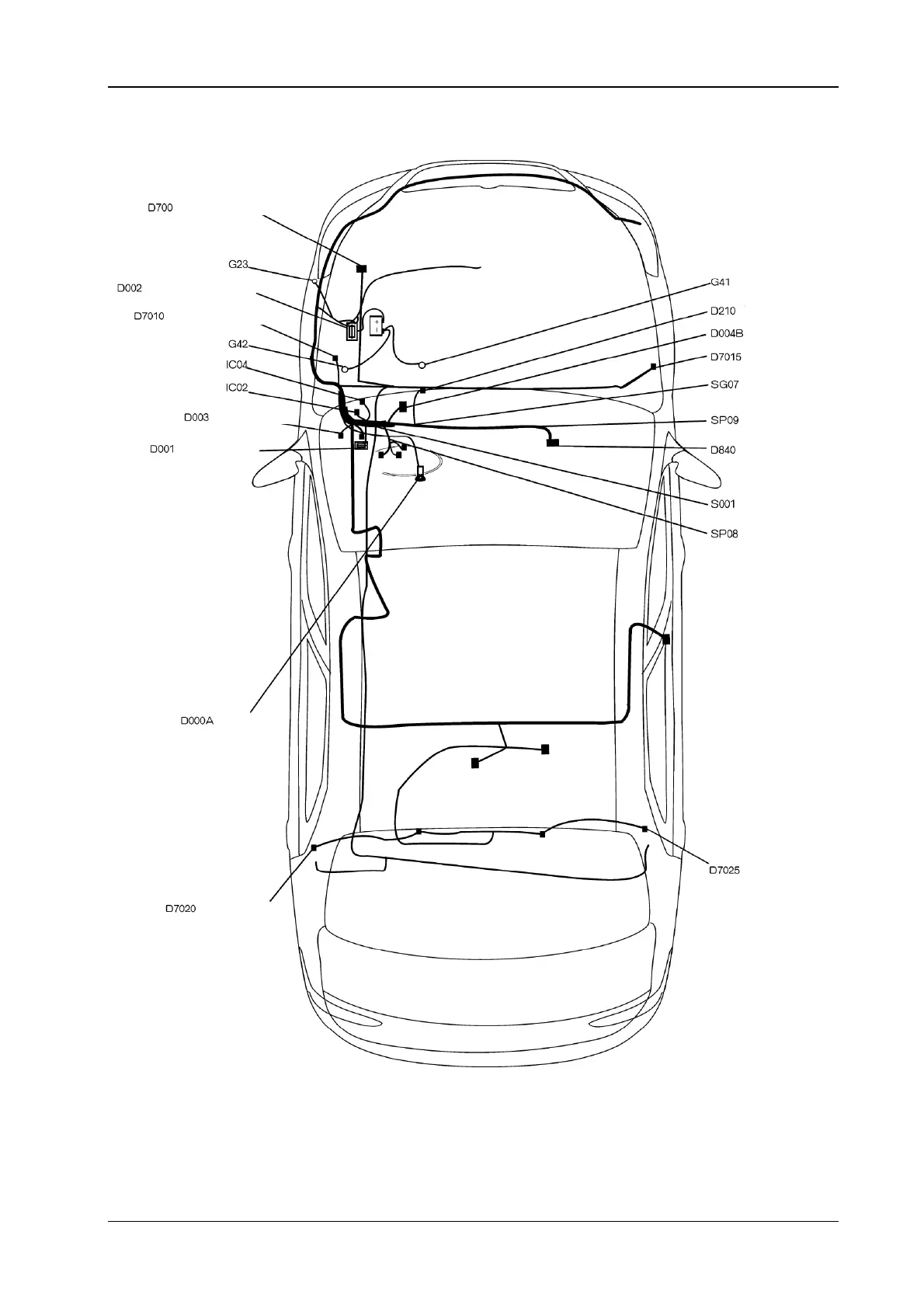

10.1 The electrical location diagram for the brake locking prevention system S30/H30
ABS electric control unit
The engine compartment fuse
The left front wheel speed sensor
Diagnostic apparatus
Cabin fuse box
The ignition switch
The left back wheel
speed sensor
The brake light switch
The combined instrument yellow
The right front wheel speed sensor
Radio recorder
The right back wheel speed sensor
