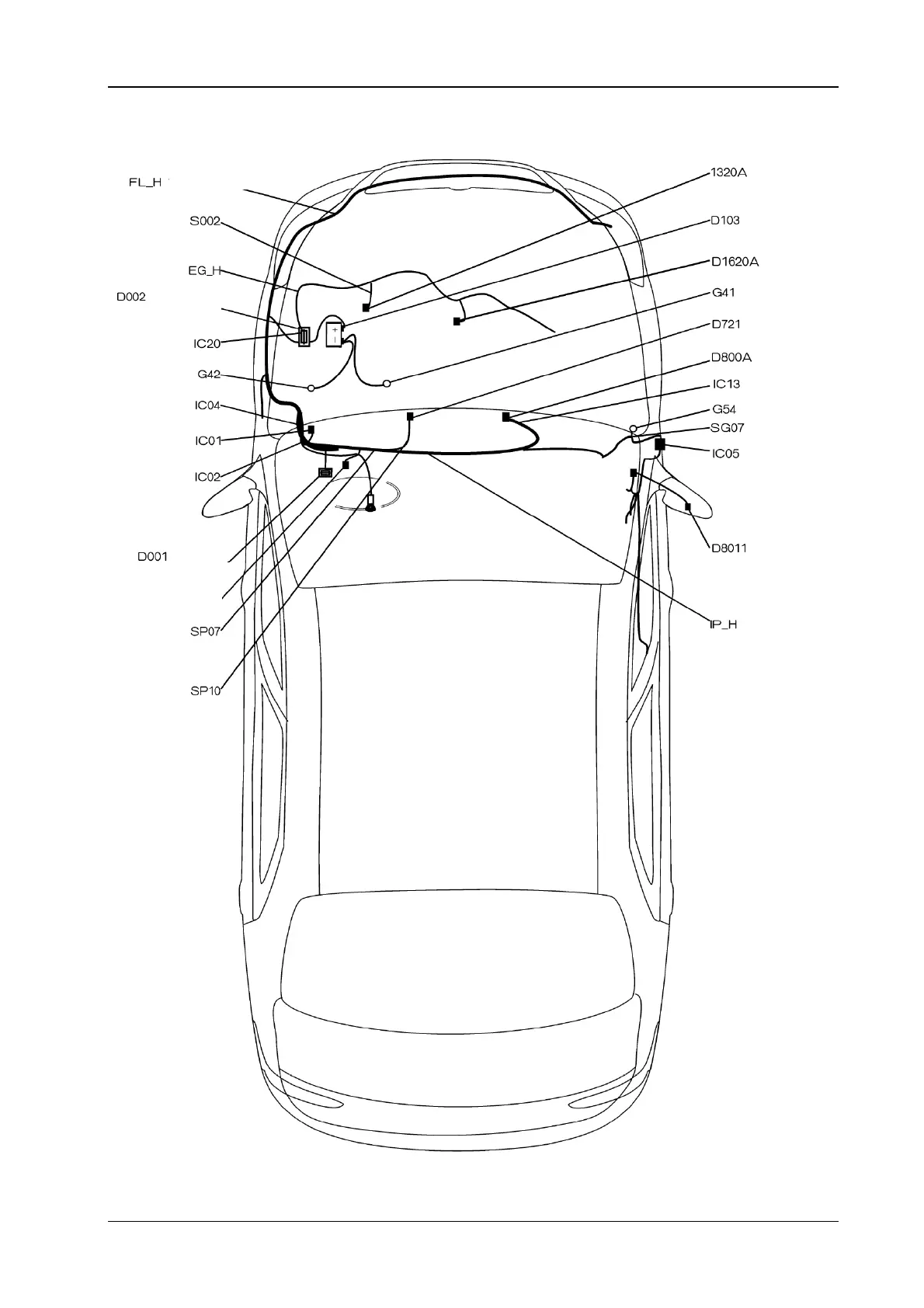

11.1 The electrical location diagram for the multiple functional display S30/H30
The front wiring harness
The engine compartment
Cabin fuse box
D004 The combined instrument
Engine computer
Battery
The vehicle speed sensor
The multiple functional display
utomatic air conditioning control module
The ambient temperature sensor
The instrument panel wiring harness
