Circuit Diagrams of Electrical Appliances
21-138

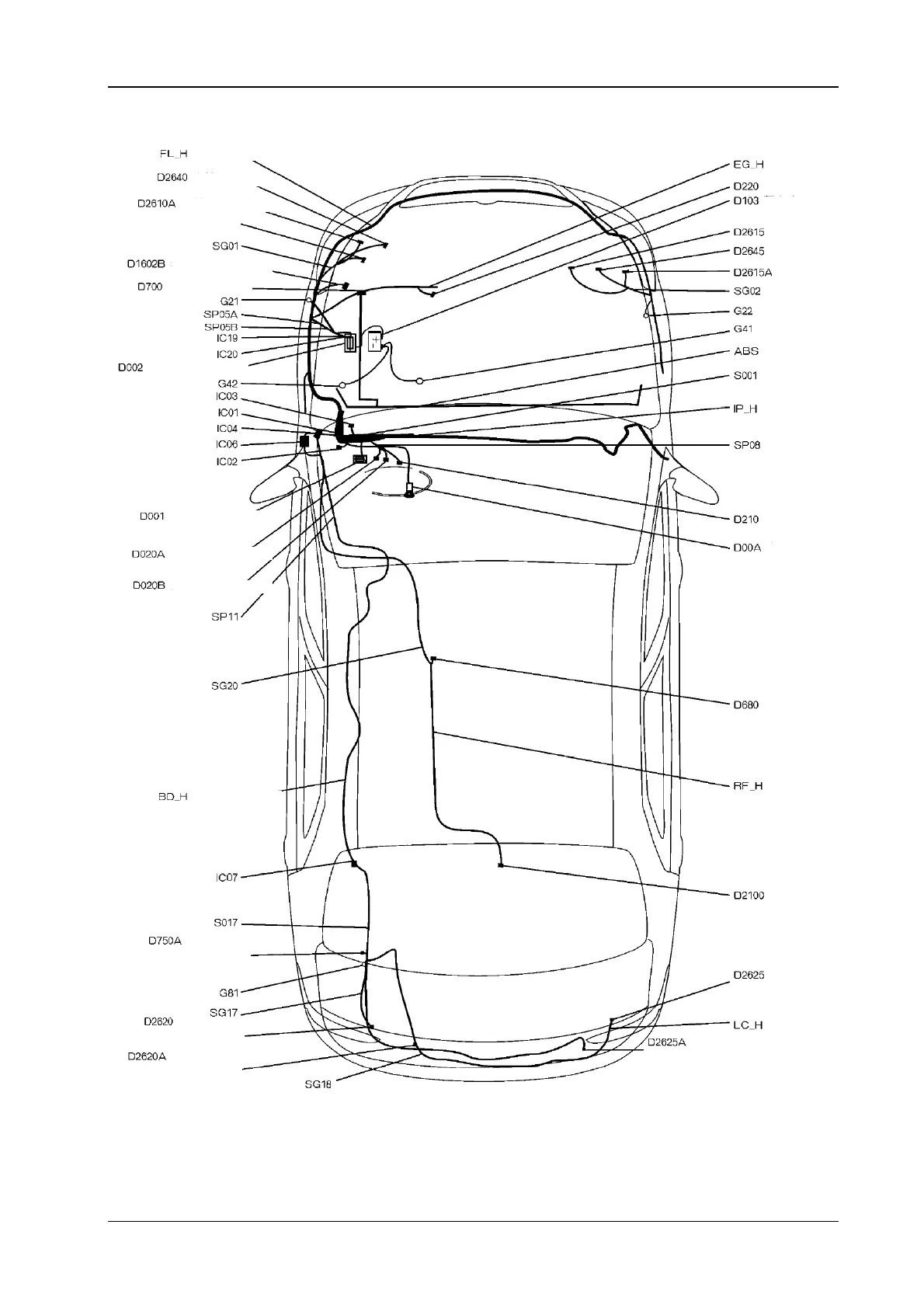

13.1 The electrical location diagram for the external lighting S30
The front wiring harness
The left front fog light
The left front steering light
D2610 The left head light
The gear selection switch
A
BS control module
The engine compartment
fb
Cabin fuse box
The light combined switch
The light combined switch
Cabin wiring harness
The parking auxiliary control module
The left back combined light (on the
vehicle body)
The left back combined light (on the
luggage compartment)
Engine wiring harness
The reverse wiring harness
Battery
The right front head light
The right front fog light
The right front steering light
wiring harness
The instrument panel wiring
harness
The brake light switch
The ignition switch
The sky light control module
The ceiling wiring harness
The high shift brake light
The right back combined light
(on the vehicle body)
The back wiring harness
The right back combined light
(
on the lu
gg
a
g
e com
p
artment
)
