Circuit Diagrams of Electrical Appliances
21-139

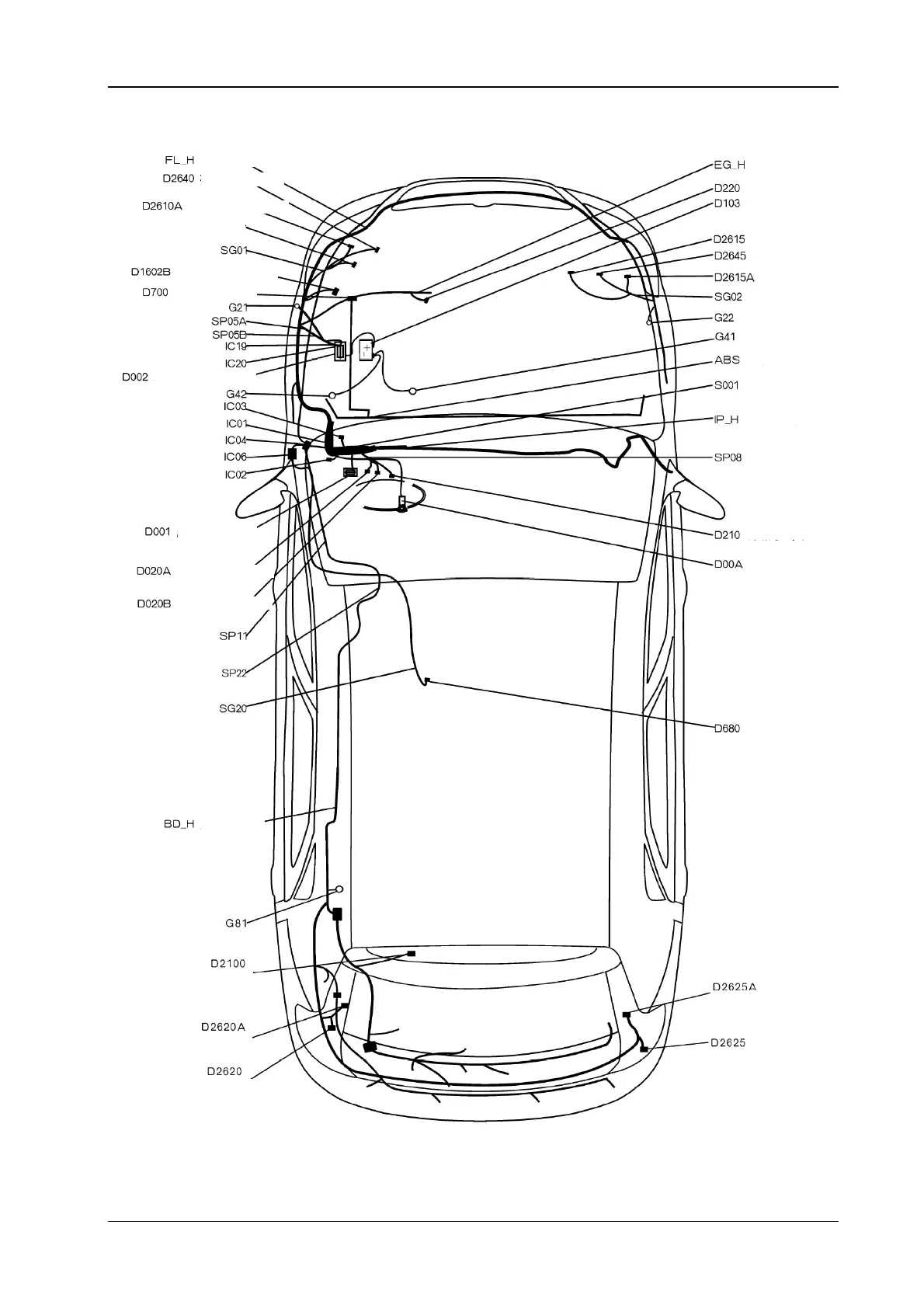

13.2 The electrical location diagram for the external lighting H30
The front wiring harness
The left front fog light
The left front steering light
D2610 The left head light
The gear selection switch
BS control module
The engine compartment
Cabin fuse box
The light combined switch
The light combined switch
Cabin wiring
harness
The third brake light
The left auxiliary side light/brake light
The left back combined light
Engine wiring harness
The reverse wiring harness
Battery
The right front head light
The right front fog light
The right front steering light
wiring harness
The instrument panel wiring
harness
The brake light switch
The ignition switch
The sky light control module
The left auxiliary side light/brake light
The right back combined light
