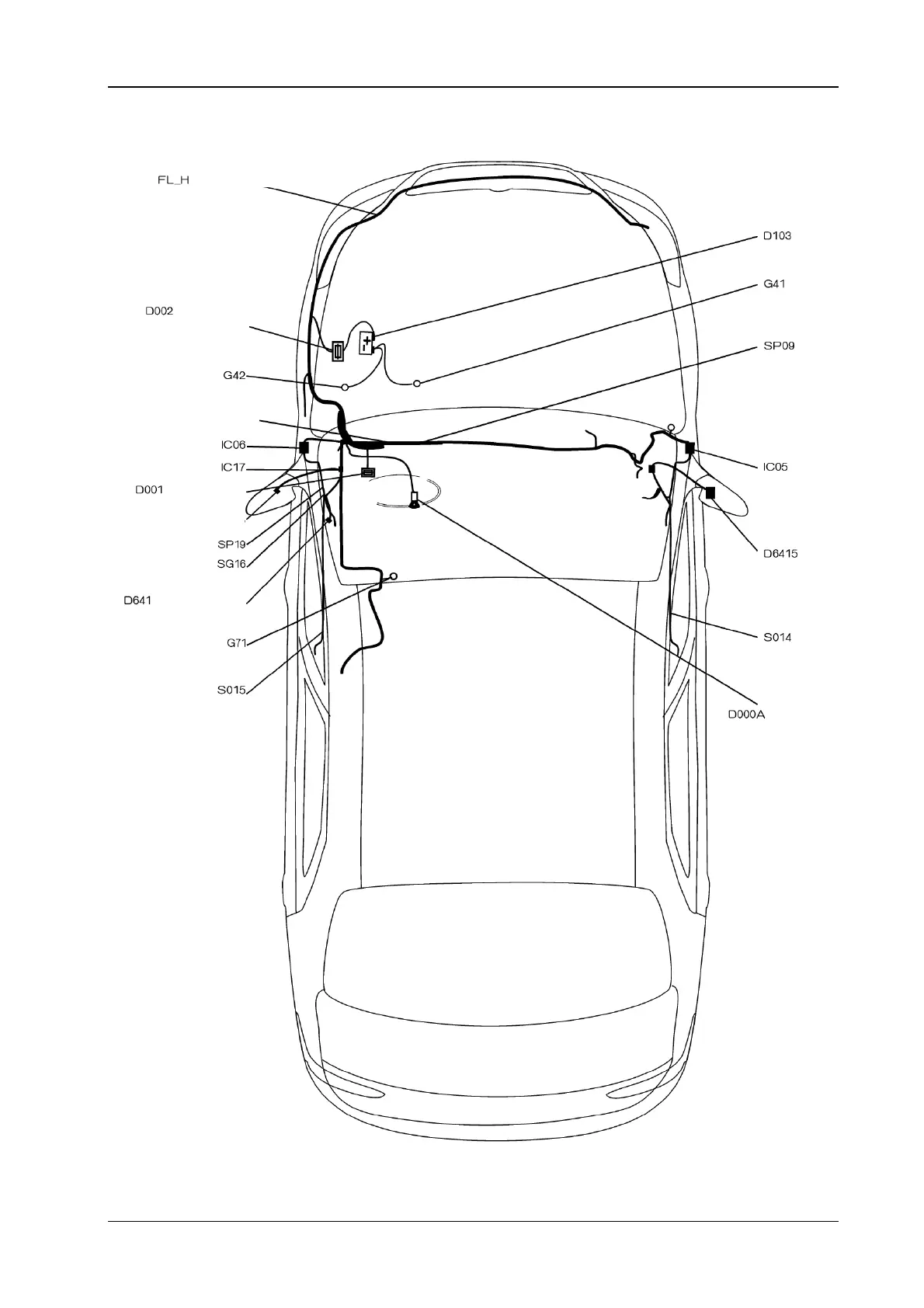

19.1 The electrical location diagram for the electric rear view mirror S30/H30)
The front wiring harness
The engine compartment
fb
IP_H The instrument panel wiring harness
The rear view mirror
adjustment switch
D6410 The left rear view mirror
adjustment motor
Battery
The right rear view mirror
ad
j
ustment motor
The ignition switch
Cabin fuse box
