Circuit Diagrams of Electrical Appliances
21-163

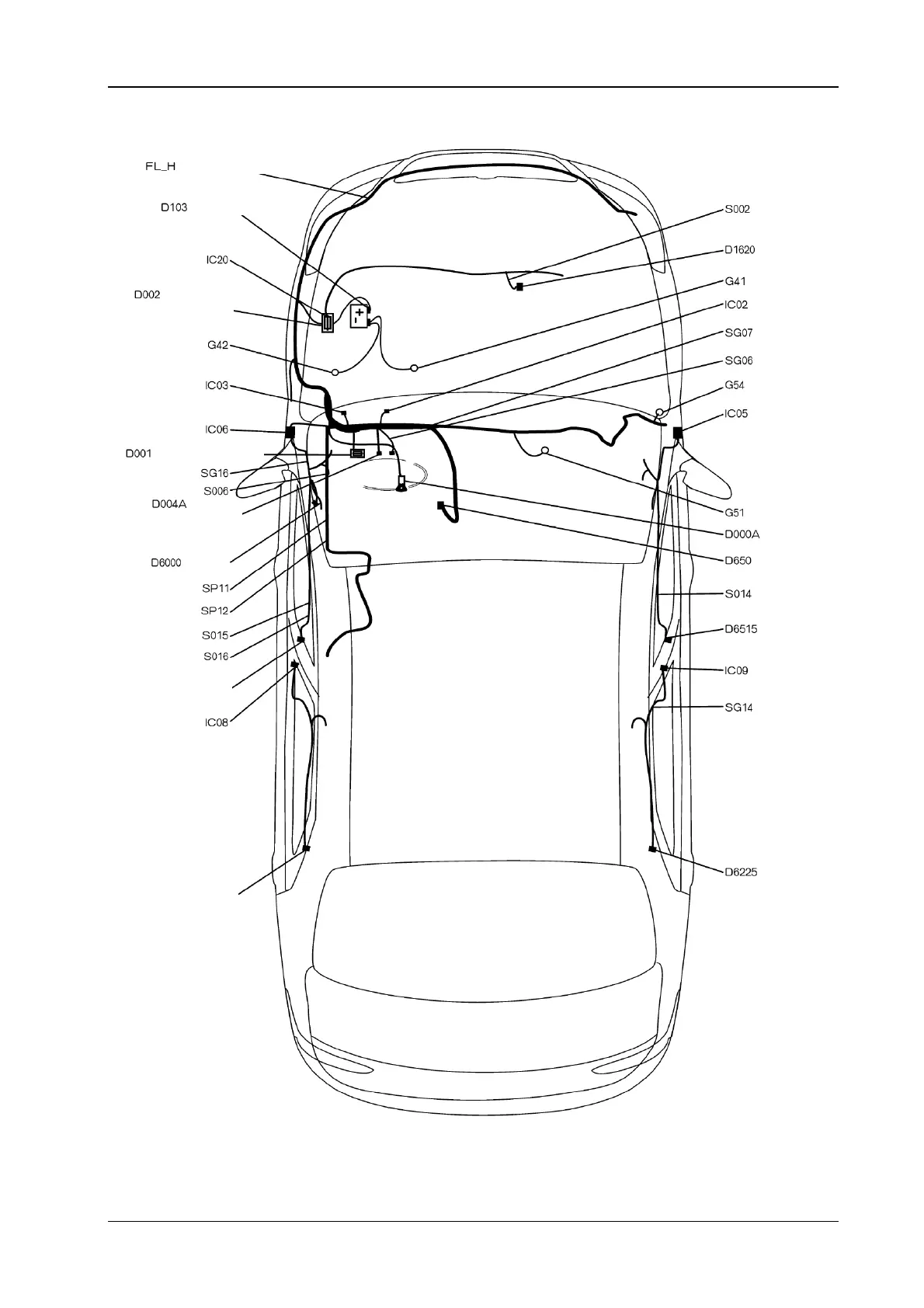

21.1 The electrical location diagram for the electric door lock S30/H30
The front wiring harness
Battery
Engine fuse box
Cabin fuse box
The combined instrument Blue
The left front door lock main switch
D6210 The left front door lock assembly
D6220 The left back door lock assembly
The vehicle speed sensor
The ignition switch
The ignition switch
The safety air bag control module
The right front door lock assembly
The right back door lock assembly
