Circuit Diagrams of Electrical Appliances
21-108

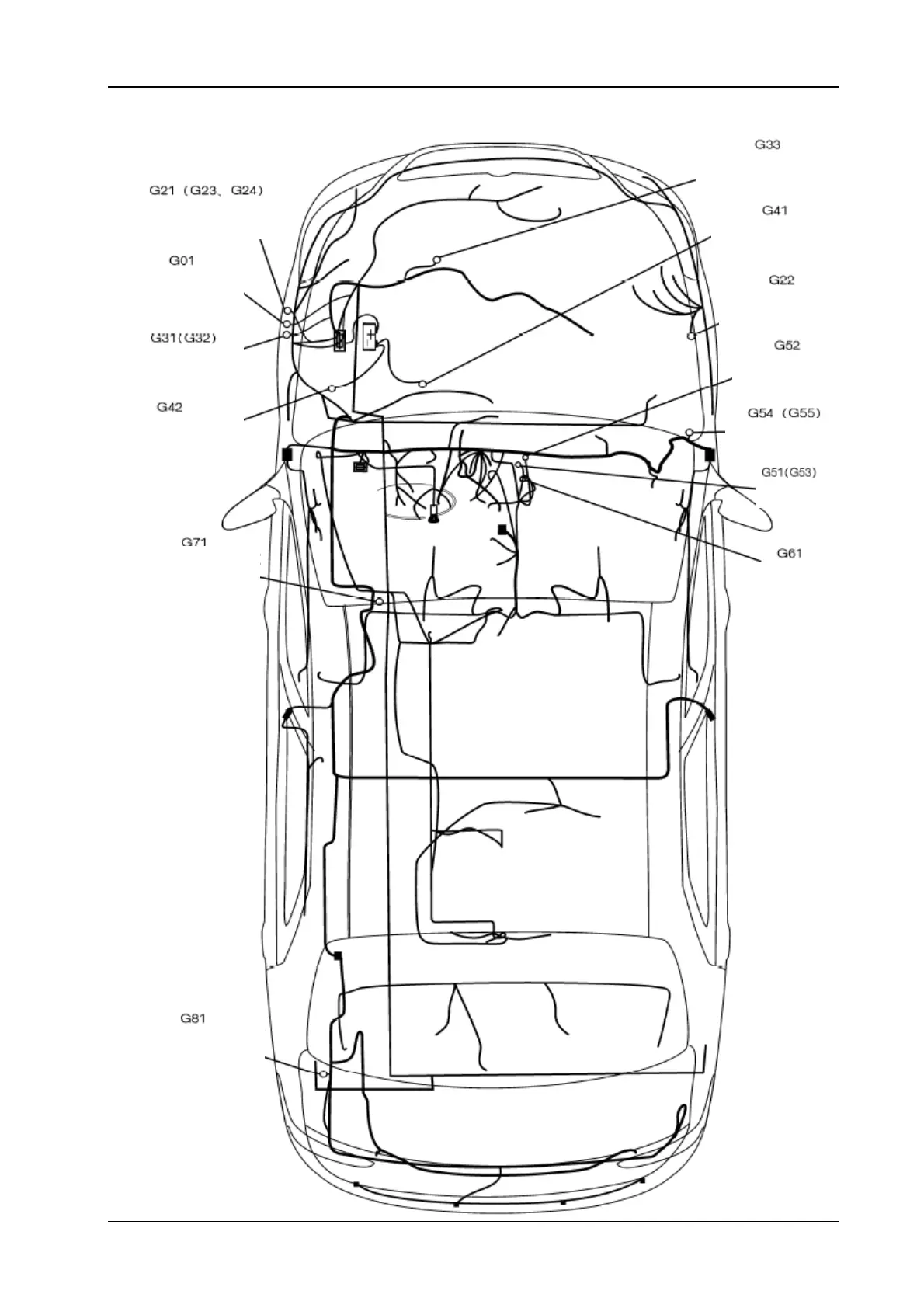

Location plan of ground points
Ground point of left
fender of front harness
Ground point of left
fender of cooling fan
harness
Ground point of left
fender of front harness
Ground point of left
fender of battery
negative cable
Ground point of left
fender of cross member
of cockpit harness
Ground point of left
fender of left C column
of rear harness
Ground point of engine
bracket of front harness
Ground point of battery
negative cable engine
bracket
Ground point of right
fender of front harness
Ground point of middle
channel of instrument
panel harness
Ground point of right
front column of
instrument panel
Ground point of middle
channel of instrument
Ground point of middle
channel of SRS
