Circuit Diagrams of Electrical Appliances
21-17

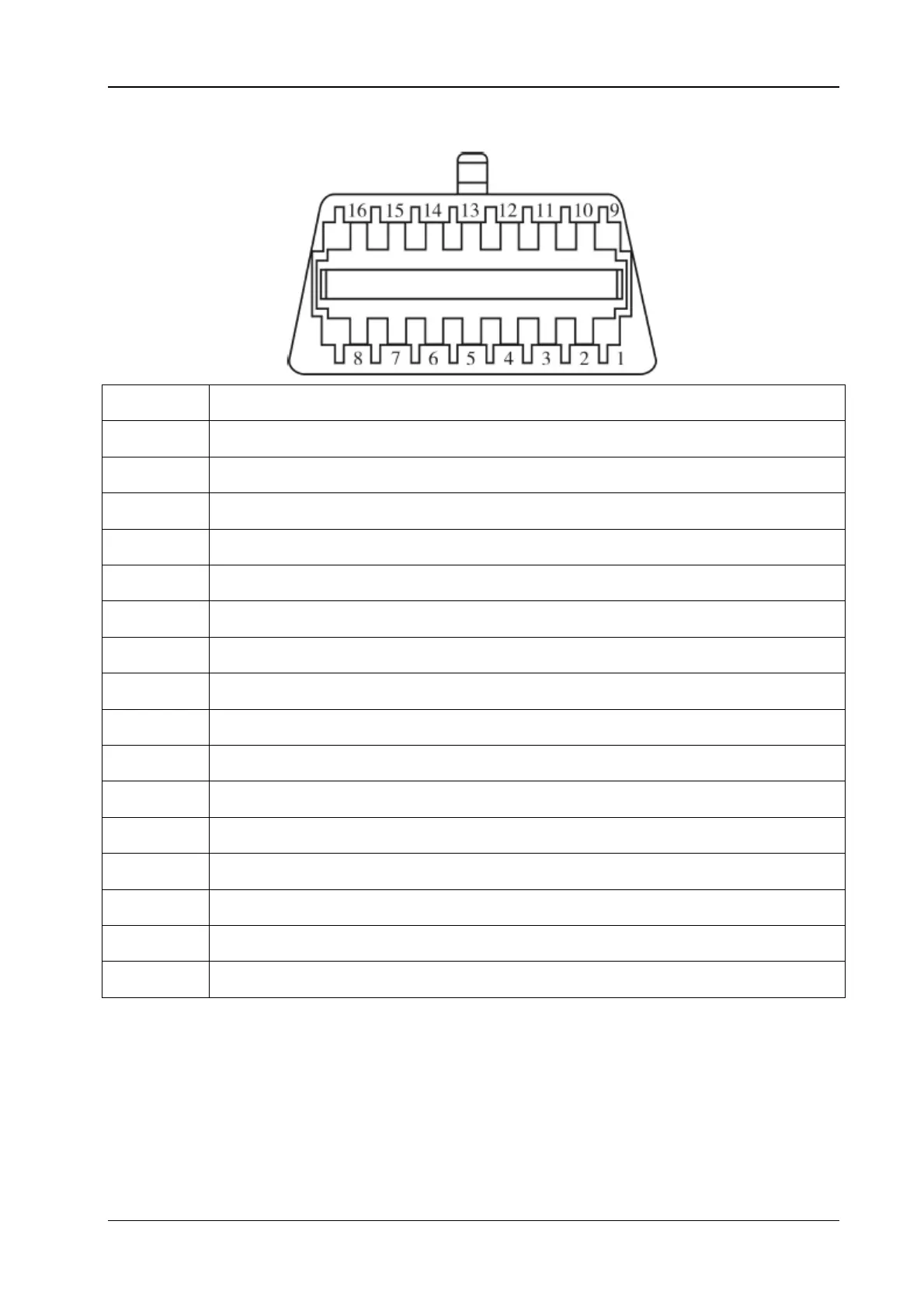

Diagnostic socket
Pin Function
1 Igntion switch
2 Unused
3 combination instrument ---engine computer
4 Grounding
5 Grounding
6 automatic transmission control module --engine computer
7 engine computer
8 engine computer ---cooling fan motor
9 Unused
10 Unused
11 Anti-theft controller module
12 ABS control module
13 SRS control module
14 automatic transmission control module --engine computer
15 Unused
16 Battery
