Figure 2-08
There are several pages for the menu. Click
[PAGE DOWN] to see the next page.
Button descriptions:
♦ [PAGE DOWN]: to display the next
page.
♦ [HOME]: to return to the homepage of
vehicle diagnosis.
♦ [BACK]: to return to the previous
interface.
♦ [HELP]: to display the help information.

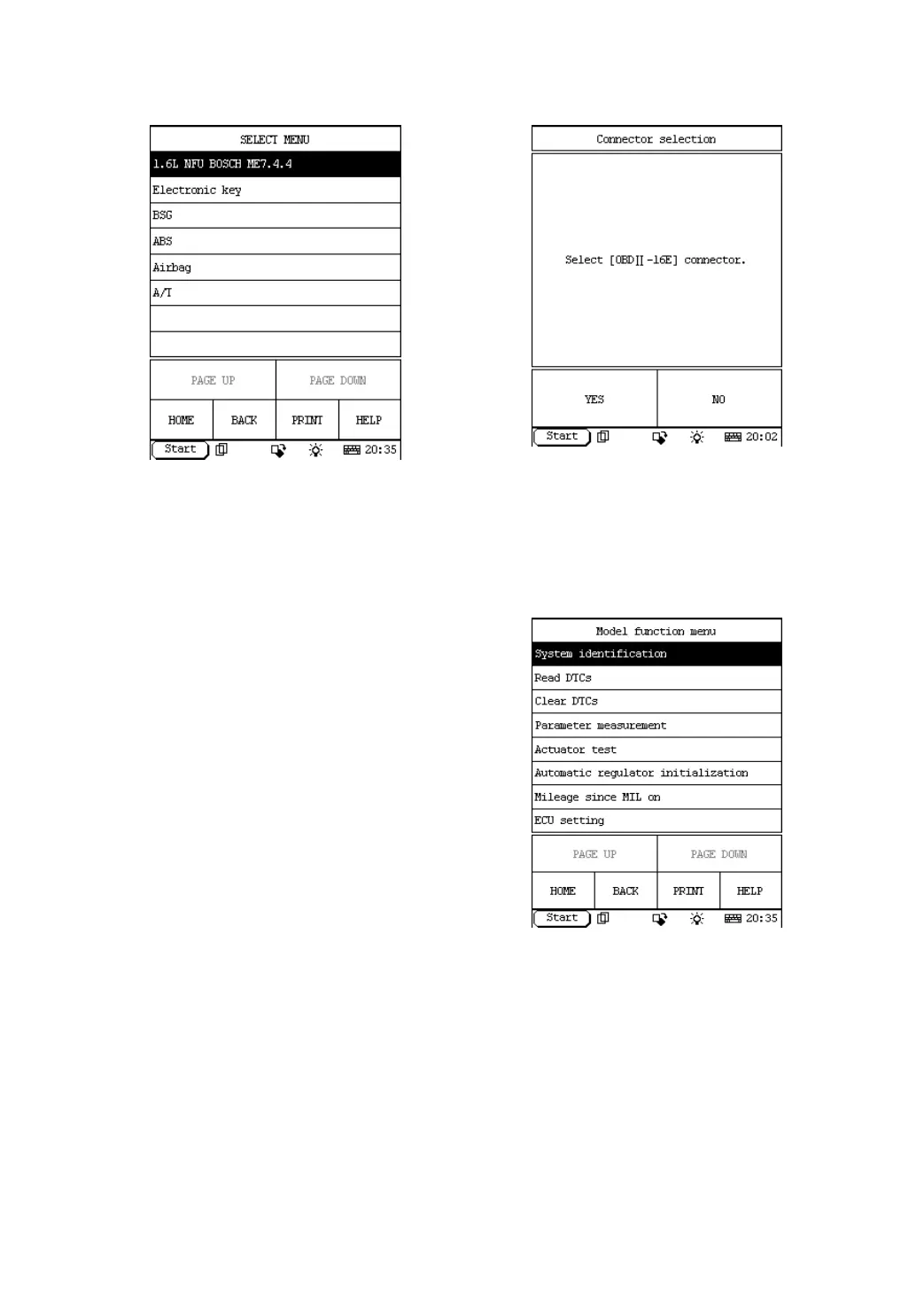

Click [1.6L NFU BOSH ME7.4.4].If the
communication is successful, the screen will
display the menu as shown in Figure 2-09.
Note:
The test operation for different systems is
similar. Here we take [Engine electronics]
as an example to describe.
Figure 2-09
Button descriptions:
♦ [YES]: to go on the test.
Click [YES] button. The screen will display the
function menu as shown in Figure 2-10.
Figure 2-10
Button descriptions:
♦ [HOME]: to return to the homepage of
vehicle diagnosis.
♦ [BACK]: to return to the previous
interface.
♦ [HELP]: to display the help information.
♦ [PAGE DOWN]: to display the next
page.
To Next Page
