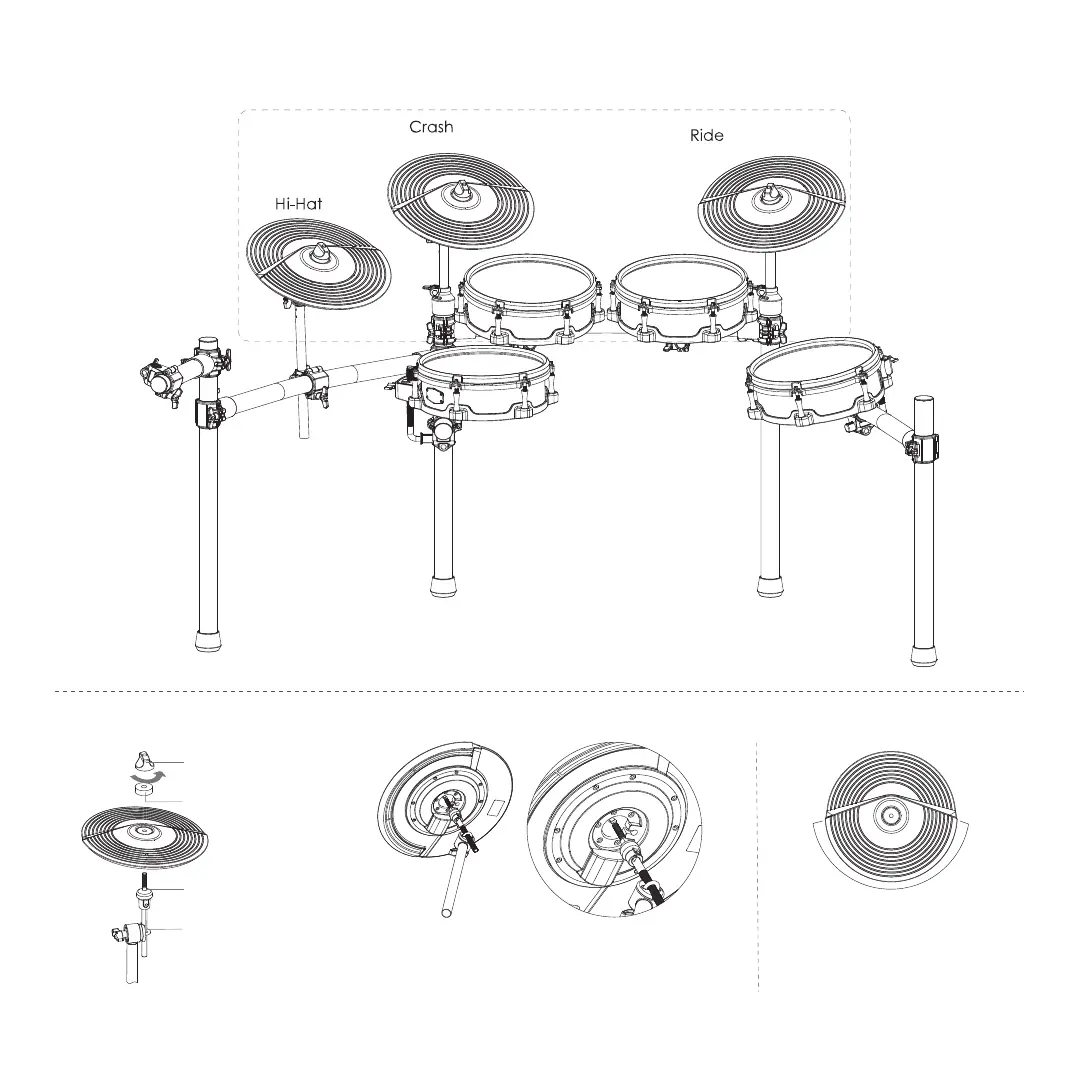

3. A-ATTACH THE CYMBALS
● Insert cymbal and align it with
indentation. Adjust knob nut to fix it.
Sensing range of cymbal
Knob nut
Felt washer
Check bracket
Tighten screw
3
