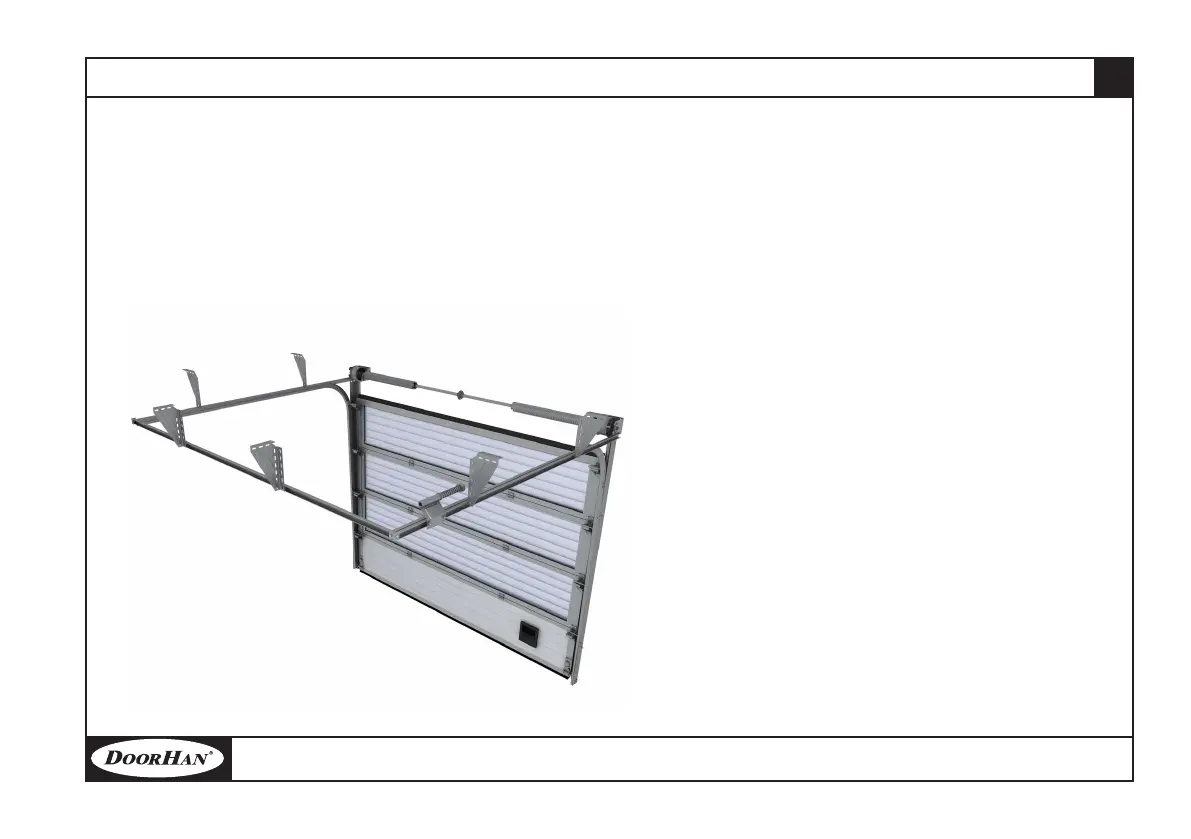

3.2. The door configuration
3.2.1. The door structure of the series RSD01S, RSD01, RSD02, Yett 01S, Yett 01, Yett 02,
Yett 02-30
No.
Name
No.
Name
1
Shaft
10
Installation profiles
2
Drums
11
Hinges
3
Terminal U-shaped support bracket
12
Top seal
4
Top Aluminum profile
13
Side caps
5
Guides
14
Panels
6
Side support with rollers
15
C-profile
7
Bottom seal
16
Handle
8
Balancing spring mechanism
17
Bottom bracket
9
Spring safety device
18
Bottom Aluminum profile
___________________
* The presence/absence of a position as a part of the door due to the design feature of the door.
Depending on the type of lifting, installation of built-in objects and options, the door appearance
may differ from that shown.
