D439E Service Manual 2. Engine Mechanical System (D439E)
70

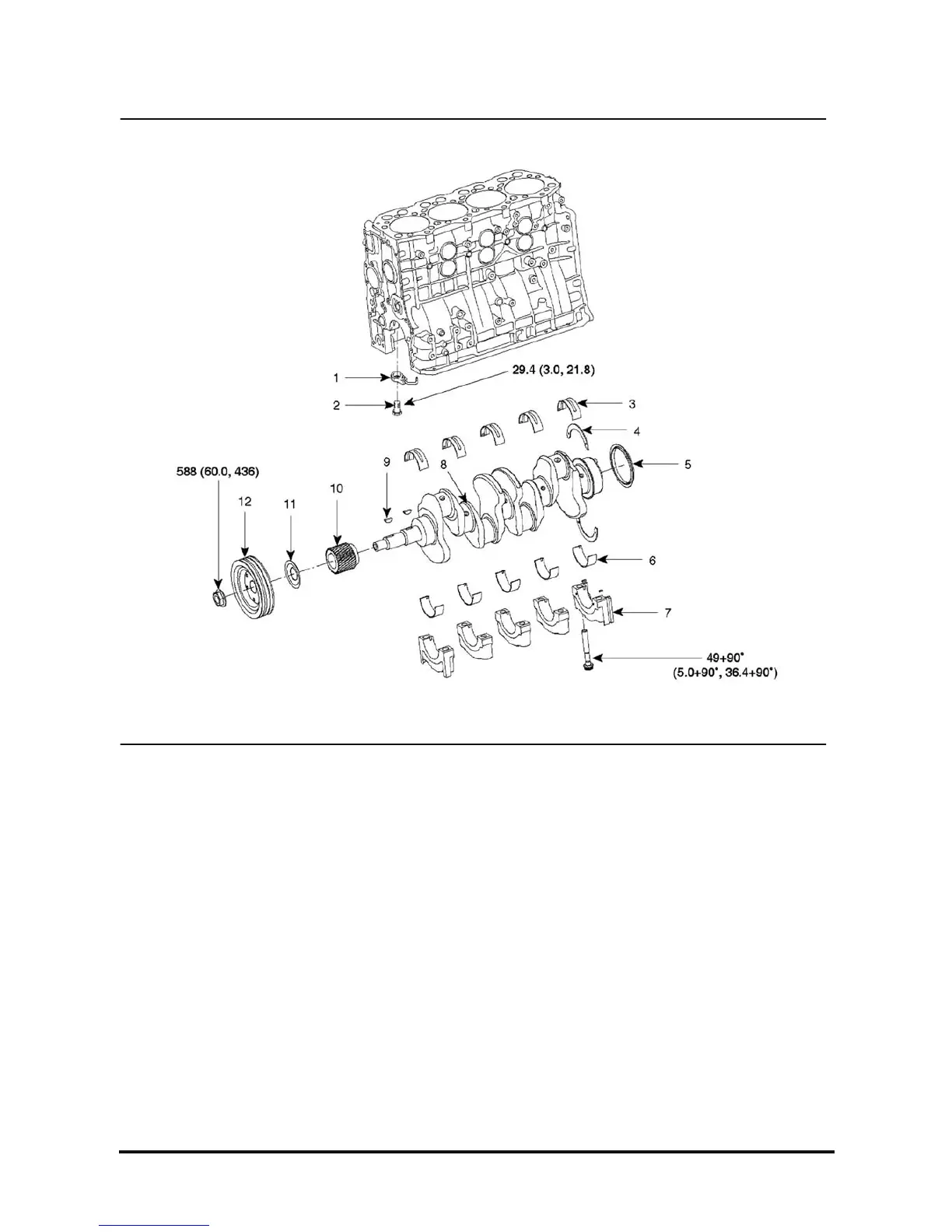

1. Oil jet
2. Oil jet mounting bolt
3. Upper main bearing
4. Thrust plate
5. Rear oil seal singer
6. Lower main bearing
7. Main bearing cap
8. Crankshaft assembly
9. Semicircular key
10. Crankshaft gear
11. Front oil seal slinger
12. Crankshaft pulley
Tightening Torque : Nm (kgf.m, Ib-ft)
