D439E Service Manual 2. Engine Mechanical System (D439E)
38

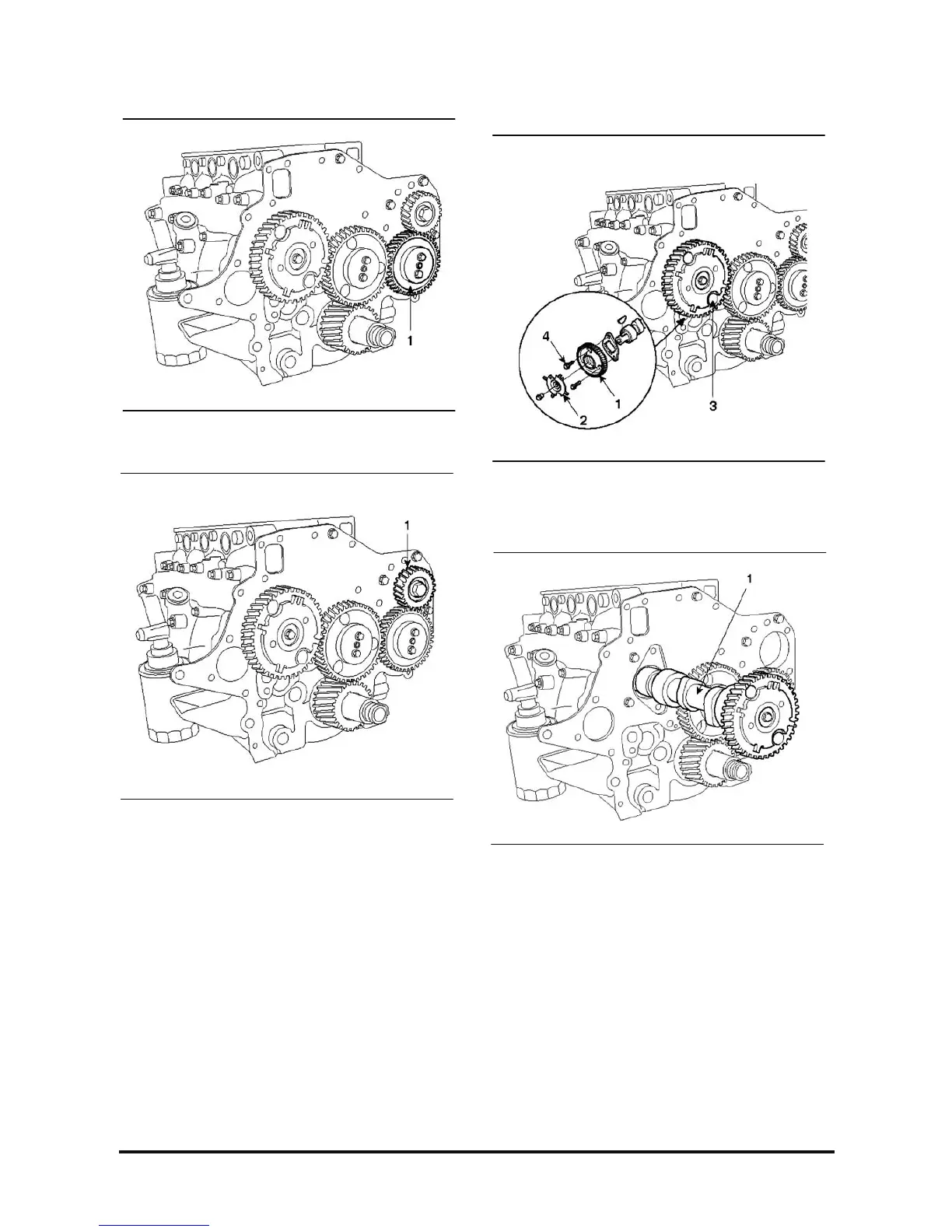

11. Remove the idler gear B (1).
12. Remove the supply pump gear (1).
13. Remove the camshaft assembly.
1) Remove the thrust plate-mounting bolt (4)
through cam sensor plate (2) hole (3) of
camshaft gear (1).
NOTE : Do not remove the cam sensor plate (2), if it
is not damaged.
2) When removing the camshaft assembly (1),
handle cam bush carefully not to be damaged.
To Next Page
