DORANI 7010K - System Diagram

3

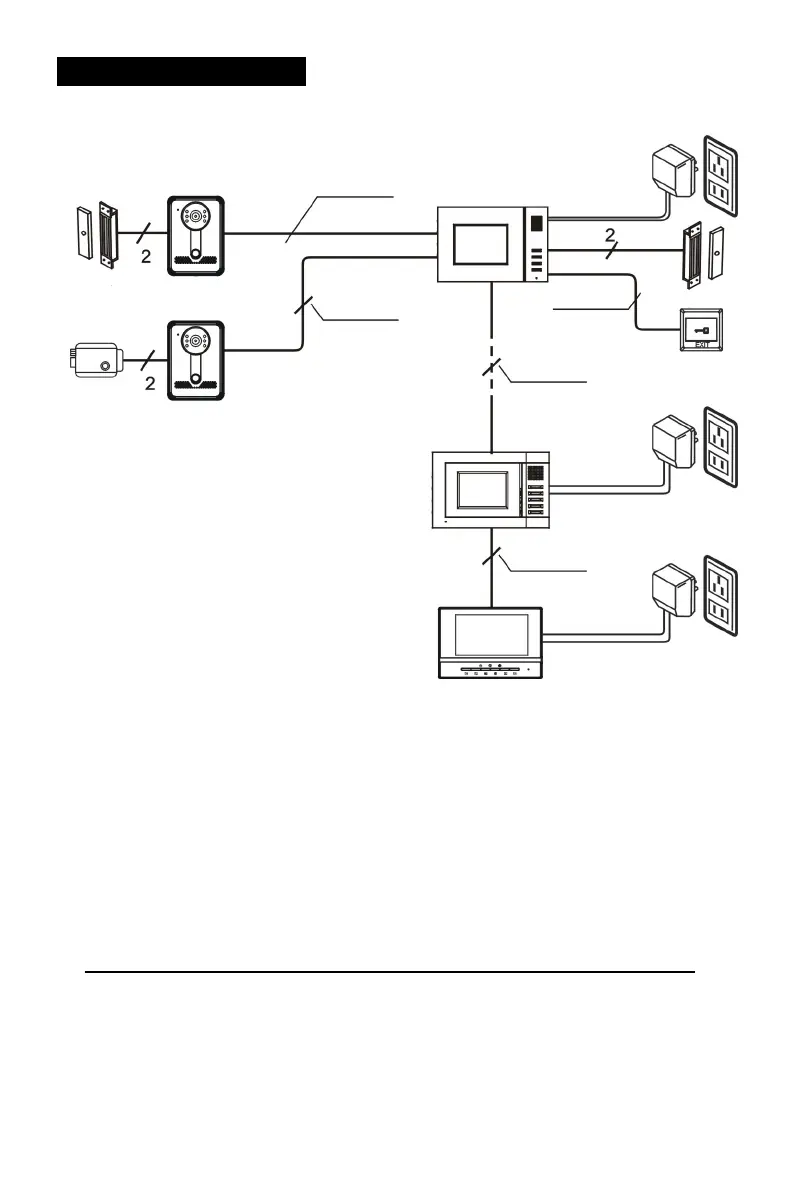

4 System Diagrams
Lock
Lock
Door station 1
Door station 2
2 Wire Cable
Main Monitor
Power supply
2 Wire Cable)
Sub Monitor
Sub Monitor
2 wire cable
2 wire cable
Magnetic lock
Exit button
Power
Supply
2 Wire Cable
Power
Supply
Wiring Recommendations:
1. Wiring distance between the front door station and the last indoor monitor should be
less than 200m.
2. Single wire resistance between the front door station and to the main monitor should
be less than 10Ω.
3. Wiring between the main monitor and sub monitors should be looped.
4. Recommended Cable is polyethalene Double insulated 1.2mm
