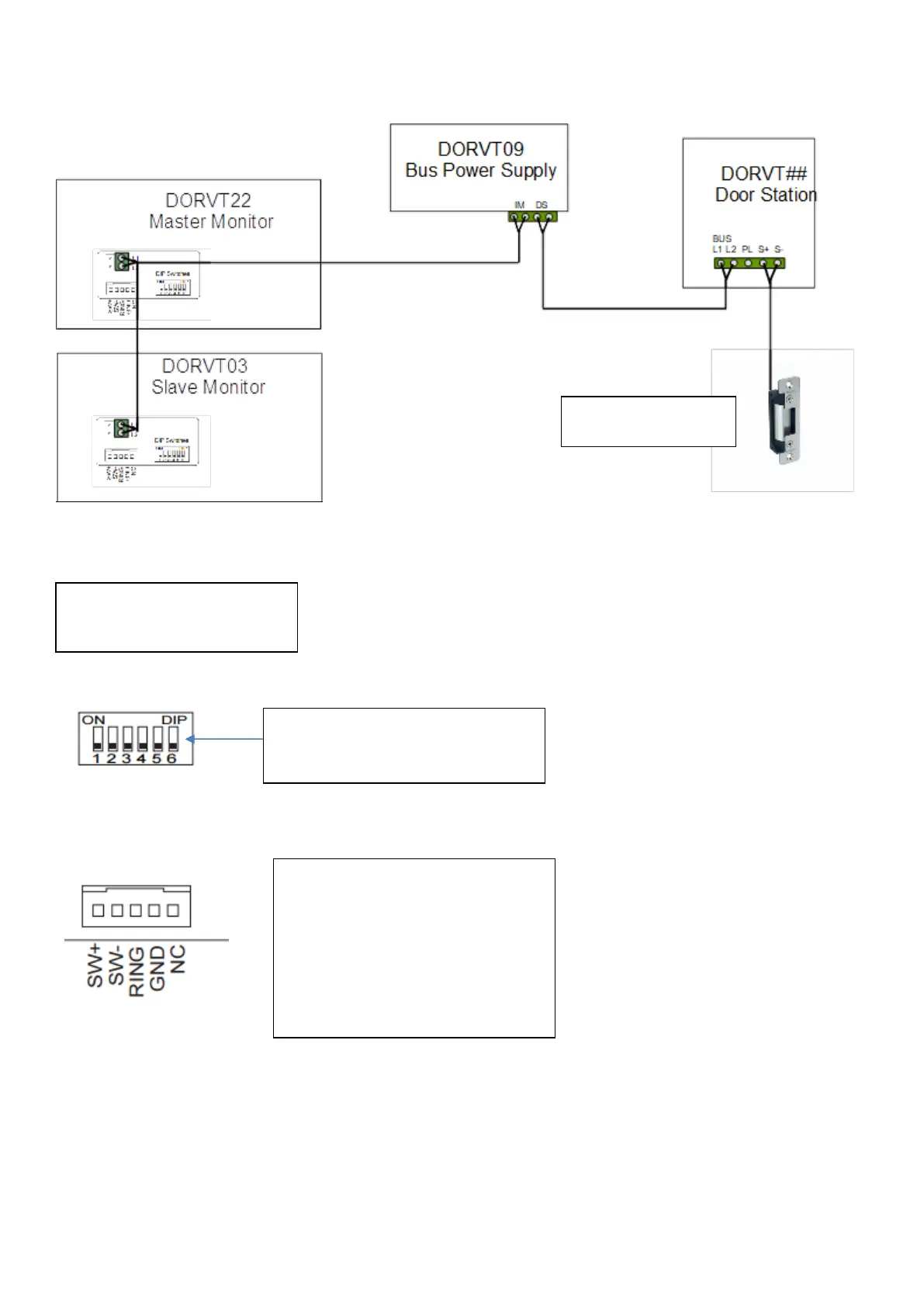

Loop Wiring
Cable
Dip Switches
Accessory Connector
2 Wires - Twisted
No Polarity
1mm² to achieve max distance
Dip Switch 6
ON = Last Monitor
All Other DIP Switches NOT USED
SW+ = 12V Positive Pulsing on Ring
SW- = 12V Negative on Ring
RING = Door Bell Normally Open
Input
GND = Door Bell Common Input
NC = Not Used
Door Bell is to Chime Monitor ONLY
REFER LOCK RELEASE
CONNECTIONS PAGE 9
ALL LINES INDICATE
2 CONDUCTORS
