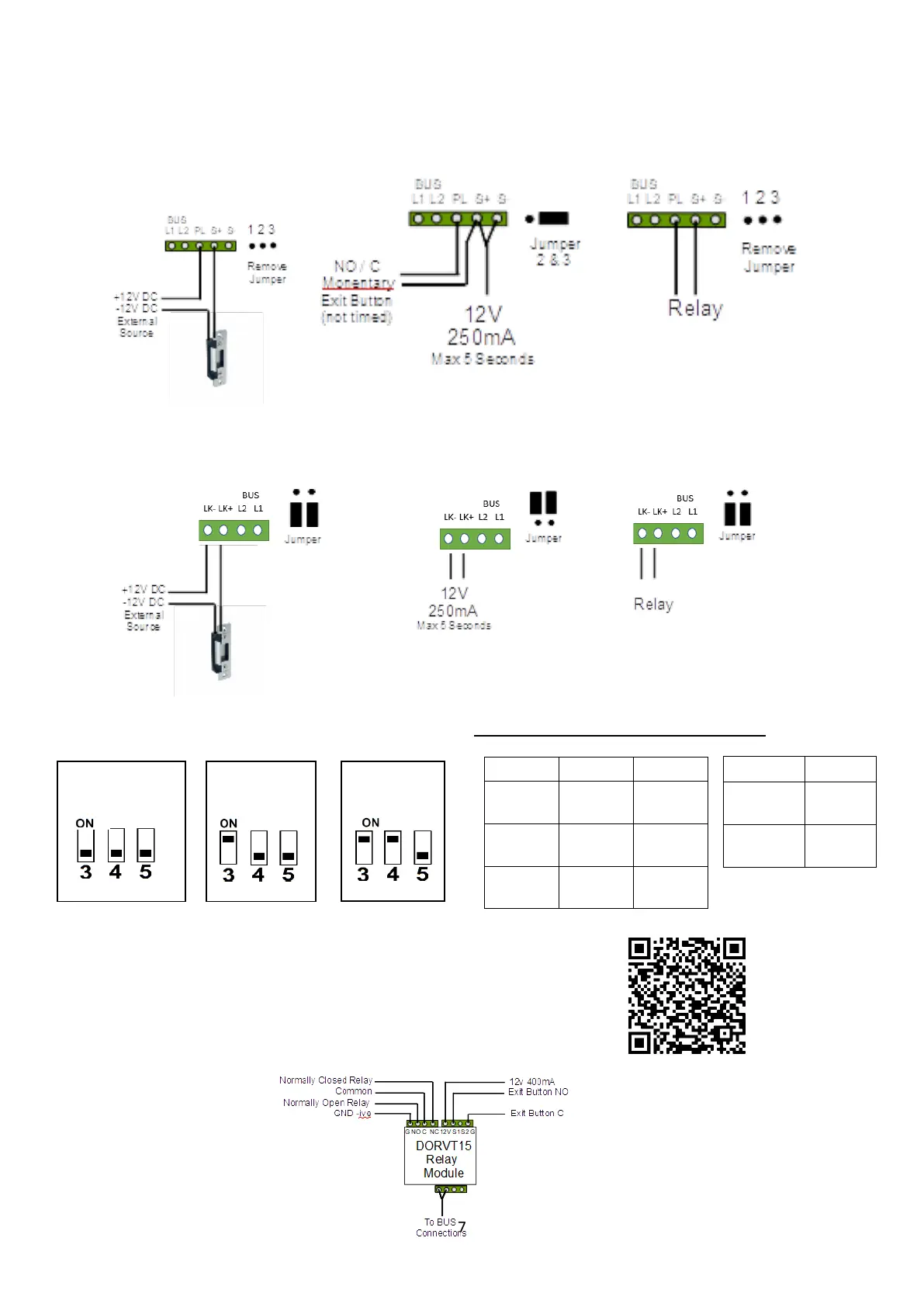

LOCK CONNECTIONS
Standard and Keypad Door Station – DORVT11,12,13,14
Slimline Door Station – DORVT25
Lock Settings SLIMLINE – DORVT25
THIS DIP SETTING IS UNDER THE LABEL – REINSTALL STICKER AFTER CHANGING
LOCK RELEASE RELAY DORVT15
SCAN HERE FOR DETAILED
INSTALL INSTRUCTION
Time
Dip 5
Set By
Monitor
OFF
Manually
Closed
ON
Time
Dip 3
Dip 4
Set By
Monitor
OFF
OFF
5
Seconds
ON
OFF
10
Seconds
ON
ON
Set by Monitor
Relay Out
12VDC Out
Preferred Method
- Secondary Lock Release
- Allows for timed Press to Exit
- Enables lock release from remote
location (internal to home) for
greater security
- 12V 400mA Output
NOTE: Install loop between 12V and
Common to provide 12V output across
relay
Manual Set
5 Seconds
Manual Set
10 Seconds
Preferred Method
12VDC Out
Relay Out
Preset as Door 1
Lock 2
Adjust Door/Lock at
rear of the module
through DIP
settings
