DORC 1100 - Section 6 Specifications; Diathermy Output

D.O.R.C. MICRO DIATHERMY SYSTEM
30300300C
13/16
0
1
2
3
4
5
6
7
8
9
Power P (W)
0 20 40 60 80 100
Preset (%)
300Ω
600Ω
1200Ω
Diathermy Output
Load

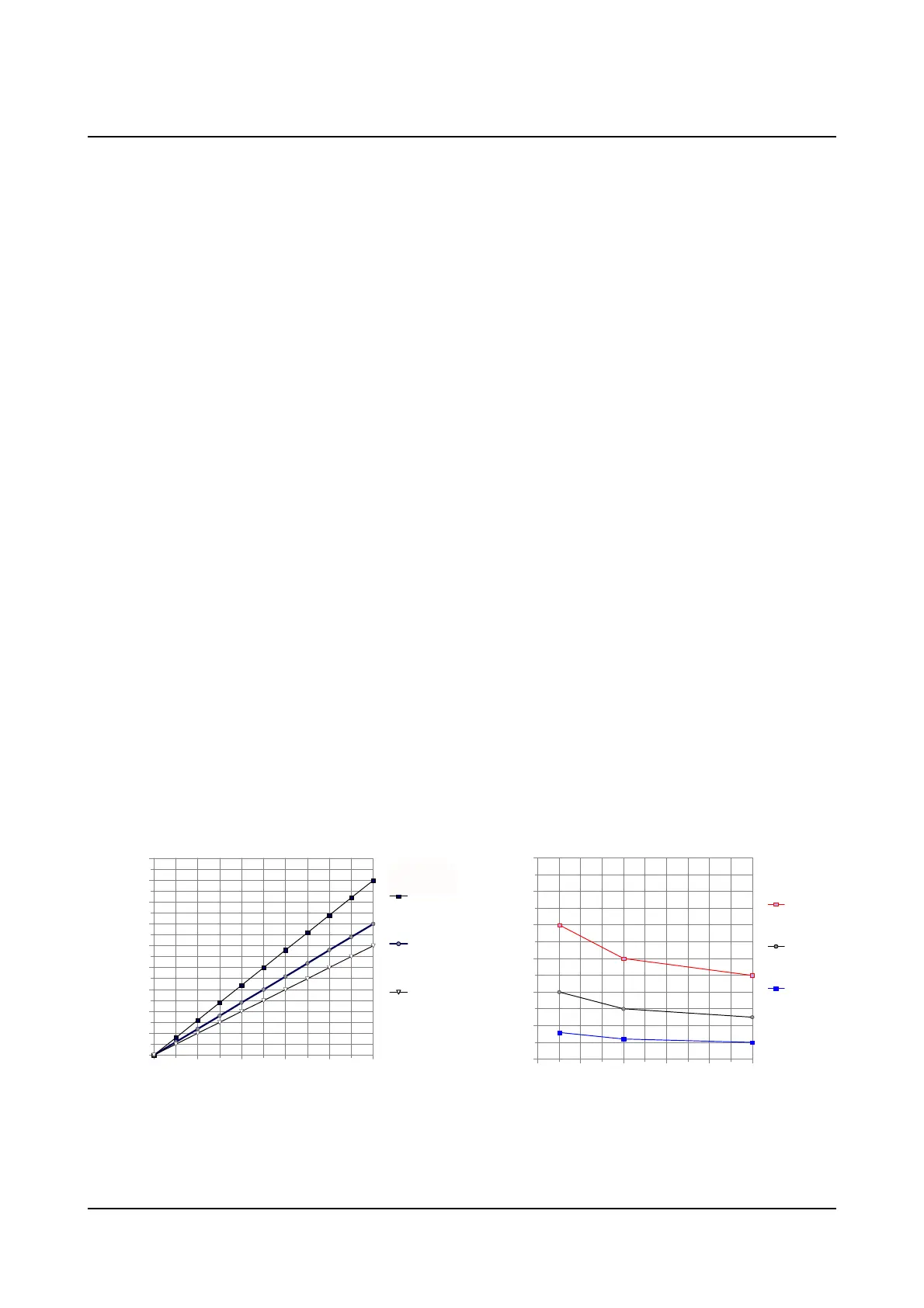

Figure 2 - Diathermy output
0
2
4
6
8
10
12
Power P (W)
200 400 600 800 1000 1200
Load R
100
50
20
Preset
(%)
(
Ω
)
Section 6
SPECIFICATIONS
GENERAL:
Apparatus : MICRO DIATHERMY SYSTEM
Type : Type 1100
Weight : 5,5 Kg
Dimensions : 13 x 22,5 x 29 cm.
MAINS INPUT:
Mains supply : 100-110 VAC (50/60 Hz)
230-240 VAC (50/60 Hz)
Fuses : 2x at 100/110VAC 1 AT
2x at 230/240VAC 500 mAT
Power Consumption : 45 VA
OUTPUT (values at room temperature)
RF output power : 0-10 Watt max., see figure 2
RF Frequency : 13.56 Mhz, Cristal controlled.
